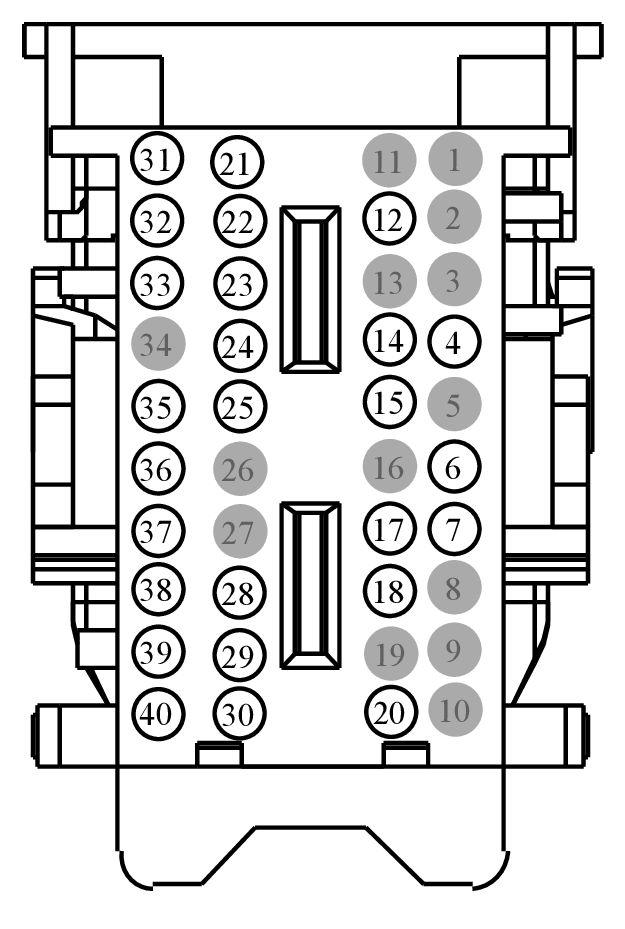

Connector End View C2280F - Body Control Module (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280F	BODY CONTROL MODULE (BCM)		14290	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	*	*	Not Used		N/A
3	*	*	Not Used		N/A
4	VDN03 (GY-VT)	20	CTRL MOD. - LIN BUS # BCM 3		9U5T-14474-DB
5	*	*	Not Used		N/A
6	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT		9U5T-14474-DB
6	CLS56 (YE-GN)	20	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT		9U5T-14474-DB
7	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +		9U5T-14474-DB
8	*	*	Not Used		N/A
9	*	*	Not Used		N/A
10	*	*	Not Used		N/A
11	*	*	Not Used		N/A
12	CAT17 (BN)	22	RELAY - TRAILER TOW PARK LAMPS		9U5T-14474-DB
13	*	*	Not Used		N/A
14	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR		9U5T-14474-DB
15	VDN14 (YE-VT)	20	CTRL MOD. - LIN BUS # BCM 6		9U5T-14474-DB
15	VDN14 (YE-VT)	22	CTRL MOD. - LIN BUS # BCM 6		9U5T-14474-DB
16	*	*	Not Used		N/A
17	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT		9U5T-14474-DB
17	CLS58 (BU-WH)	20	LAMP - TURN FRONT RIGHT # SIGNAL OUT		9U5T-14474-DB
18	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM		9U5T-14474-DB
19	*	*	Not Used		N/A
20	CRH04 (VT-GN)	22	CTRL MOD. - RELAY HORN		9U5T-14474-DB
21	VMP13 (BU-OG)	20	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)		9U5T-14474-DB
22	VMP12 (BU-GY)	20	SENSOR - PARKING AID # FRONT # (RIGHT INNER)		9U5T-14474-DB
23	CDC71 (YE-GY)	22	CTRL MOD. - POWER OUTLET ENABLE OR SET		9U5T-14474-DB
24	CDC64 (WH-BU)	22	RELAY - RUN ACCESSORY		9U5T-14474-DB
25	CDC55 (BN-VT)	22	RELAY - RUN START		9U5T-14474-DB
26	*	*	Not Used		N/A
27	*	*	Not Used		N/A
28	CMC19 (GY-VT)	22	SWITCH - LOW LEVEL BRAKE FLUID		9U5T-14474-DB
29	CE261 (GY-OG)	22	CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)		9U5T-14474-DB
30	CLS13 (YE-BU)	22	CTRL MOD. - SIDE MARKER FRONT LEFT		9U5T-14474-DB|9U5T-14474-EB
30	CLS05 (BU-GY)	18	CTRL MOD. - PARK		9U5T-14474-DB|9U5T-14474-EB
31	VMP11 (BU-GN)	20	SENSOR - PARKING AID # FRONT # (LEFT OUTER)		9U5T-14474-DB
32	VMP10 (WH-BU)	20	SENSOR - PARKING AID # FRONT # (LEFT INNER)		9U5T-14474-DB
33	CDC72 (BN-WH)	22	CTRL MOD. - POWER OUTLET DISABLE OR RESET		9U5T-14474-DB
34	*	*	Not Used		N/A
35	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -		9U5T-14474-DB
36	CLF62 (VT-WH)	22	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT		9U5T-14474-DB
37	CLS14 (BU-OG)	22	CTRL MOD. - SIDE MARKER FRONT RIGHT		9U5T-14474-DB
38	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT		9U5T-14474-DB
38	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT		9U5T-14474-DB
39	CLS21 (BU-GN)	22	CTRL MOD. - TURN LAMP LEFT FRONT		9U5T-14474-DB
39	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT		9U5T-14474-DB
40	CLF61 (GY-BU)	22	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT		9U5T-14474-DB
