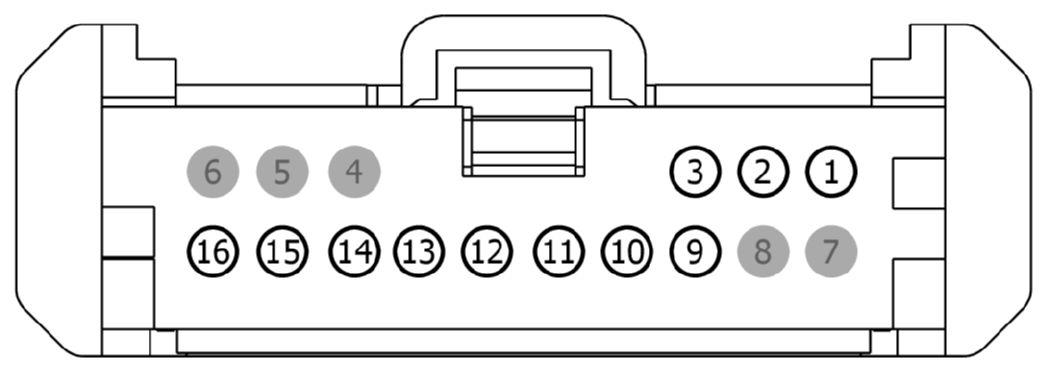

Connector End View (C2503) - GEAR SHIFT MODULE (GSM)
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2503 |
GEAR SHIFT MODULE (GSM) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBP07 (WH-RD) |
22 |
FUSE - 7 OR CIRCUIT BREAKER |
DU5T-14474-GAA |
| 2 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
DU5T-14474-GAA |
| 3 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
DU5T-14474-GAA |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
RE472 (BU) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SST-SIGRTN) |
DU5T-14474-GAA |
| 10 |
CPL93 (GY-OG) |
22 |
SWITCH - LATCH DRIVER UPPER # AJAR |
N/A |
| 11 |
CET43 (GY) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
DU5T-14474-GAA |
| 12 |
CET42 (GN-VT) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
DU5T-14474-GAA |
| 13 |
VE474 (BU-GN) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH |
DU5T-14474-GAA |
| 14 |
VE475 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW |
DU5T-14474-GAA |
| 15 |
CPL26 (GN-VT) |
22 |
SWITCH - LATCH DRIVER # AJAR |
N/A |
| 16 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
DU5T-14474-GAA |
