Escape Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
All Wheel Drive (AWD)
All Wheel Drive (AWD)

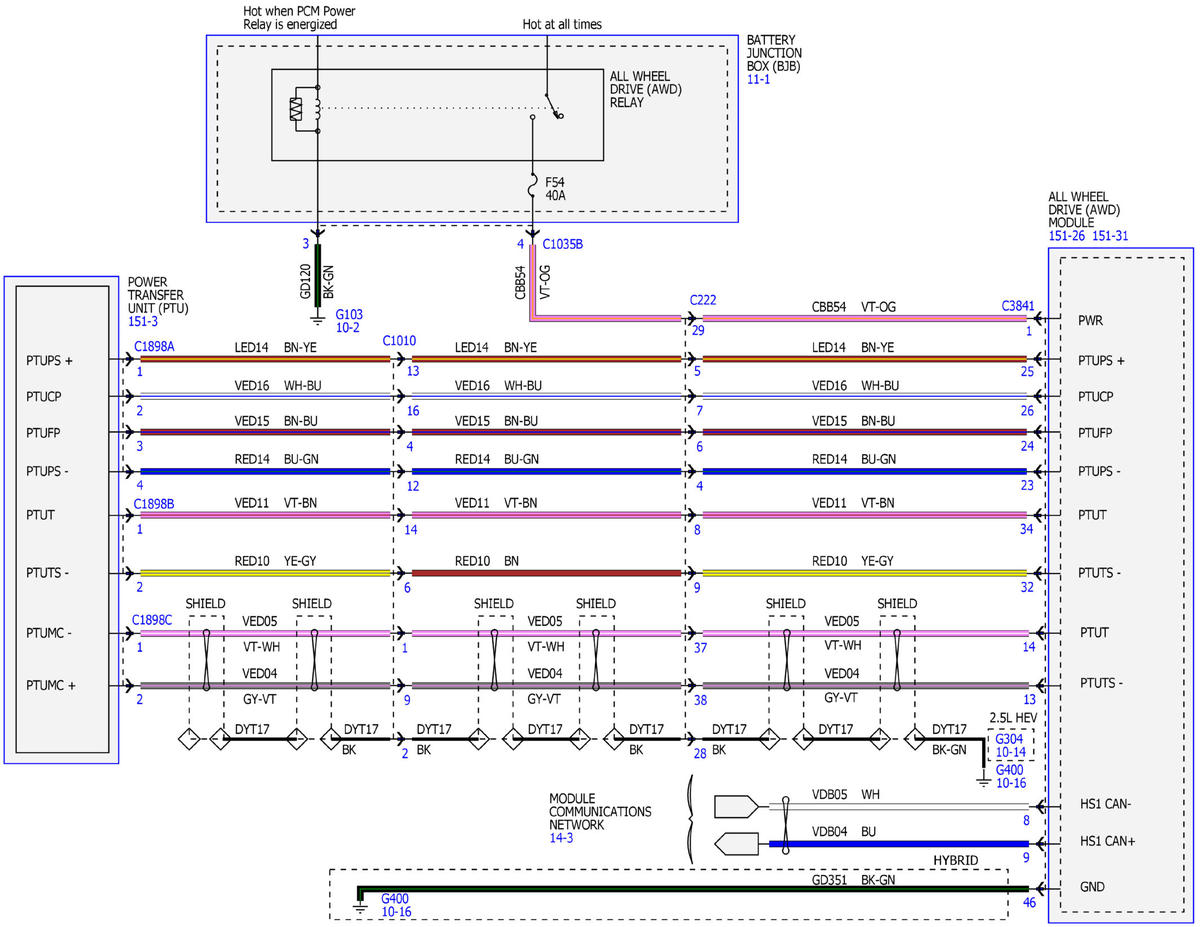

Fig 1: All Wheel Drive (AWD) Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

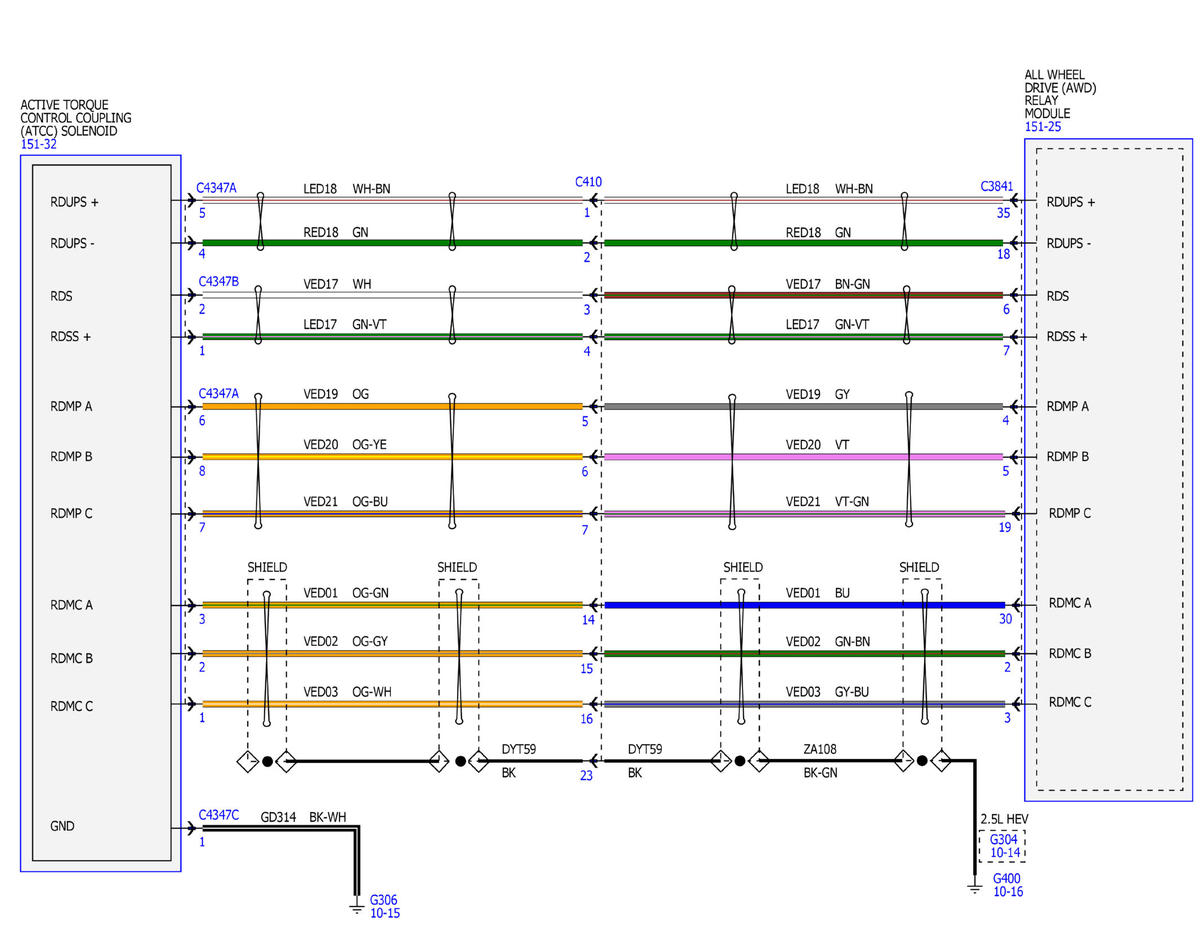

Fig 2: All Wheel Drive (AWD) Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
