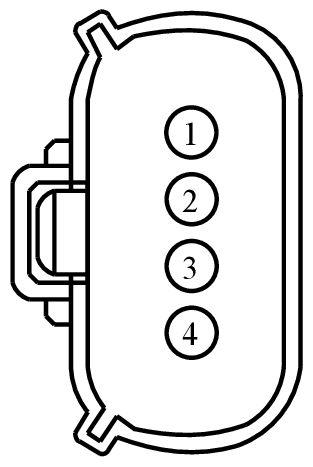

Connector End View (C1898A) - POWER TRANSFER UNIT (PTU)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1898A	POWER TRANSFER UNIT (PTU)	BK	13A840	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LED14 (BN-YE)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL 2 (C-VREF)	BU5T-14474-UA
2	VED16 (WH-BU)	20	SENSOR - POWER TRANSFER UNIT CAM POSITION	BU5T-14474-UA
3	VED15 (BN-BU)	20	SENSOR - POWER TRANSFER UNIT FORK POSITION	BU5T-14474-UA
4	RED14 (BU-GN)	20	TRANSDUCER - ENGINE OIL PRESSURE -	BU5T-14474-UA

Available Pigtail Kits

Pigtail Kit Part Number WPT-925

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-TA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• A/C Compressor Clutch
• Lamp - Headlamp - High/Low Beam
