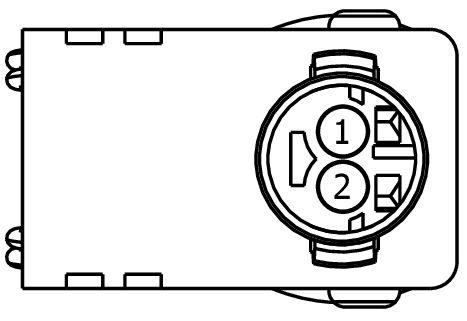

Connector End View (C303B) - SEAT BELT PRETENSIONER RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C303B	SEAT BELT PRETENSIONER RH	LT GN-YE	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
HU5T-14489-UAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR176 (WH-BN)	20	CTRL MOD. - BELT LOAD LIMITER PASSENGER +	HU5T-14489-UAB
2	RR176 (BN)	20	CTRL MOD. - BELT LOAD LIMITER PASSENGER -	HU5T-14489-UAB

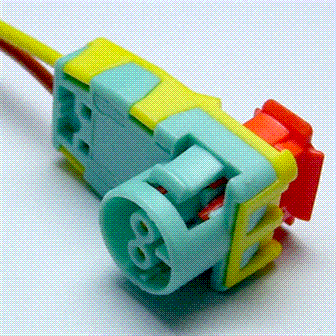

Available Pigtail Kits

Pigtail Kit Part Number WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
