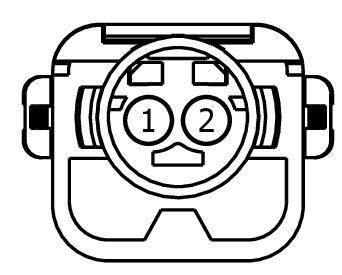

Connector End View (C3686) - SECOND ROW SEAT BELT PRETENSIONER RH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3686 | SECOND ROW SEAT BELT PRETENSIONER RH | BK-YE | 14A005 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| JU5T-14489-BYC | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RR125 (GN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD - | JU5T-14489-BYC | ||||
| 2 | CR125 (BU-BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD + | JU5T-14489-BYC | ||||
