Rear Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear lamp assemblies. Refer to: Rear Lamp Assembly
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

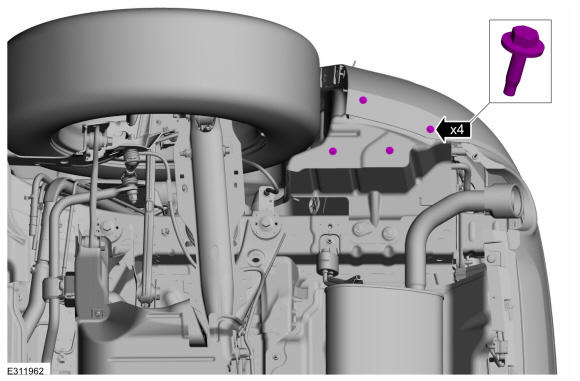

Remove the screws.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

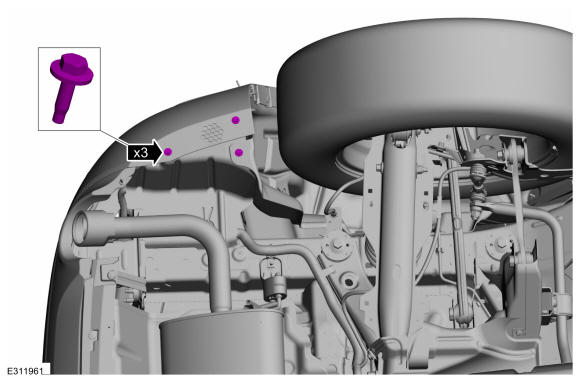

Remove the screws.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

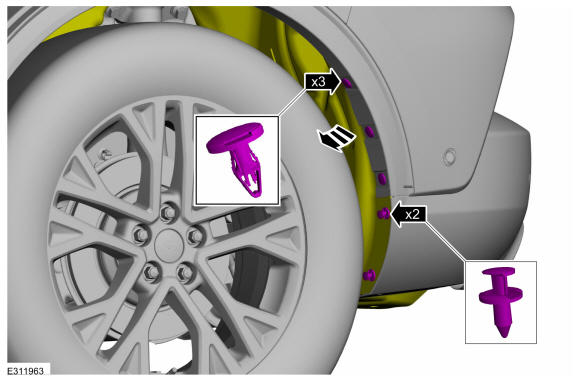

On both sides. Remove the push pins and position the fender liner aside.

Courtesy of FORD MOTOR COMPANY

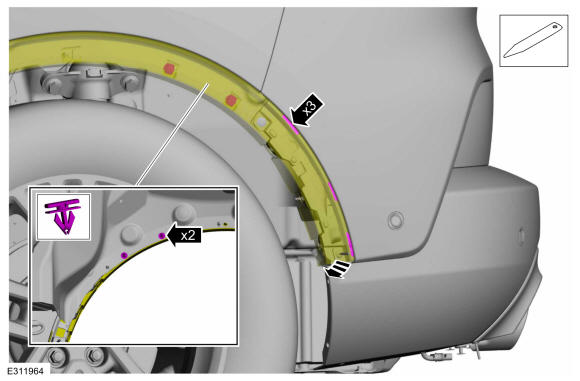

On both sides. Release the retainers, the clips and position the rear quarter panel moulding aside.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

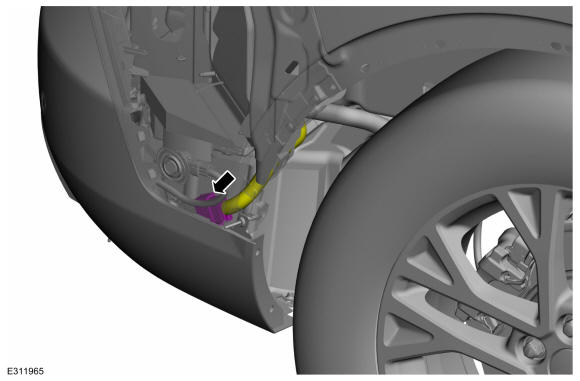

Disconnect the rear bumper harness electrical connector.

Courtesy of FORD MOTOR COMPANY

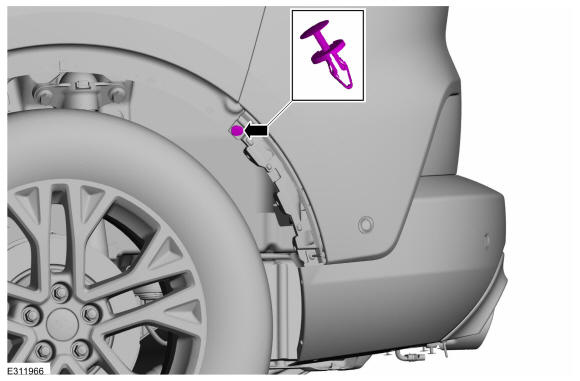

On both sides. Remove the push pin.

Courtesy of FORD MOTOR COMPANY

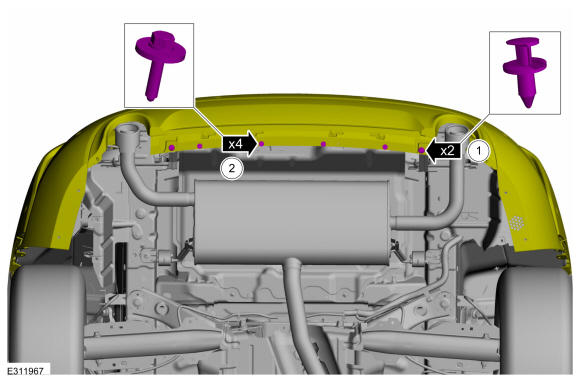

1. Remove the push pins.
2. If equipped. Remove the screws.
  Torque

  : 18 lb.in (2 Nm)
Courtesy of FORD MOTOR COMPANY

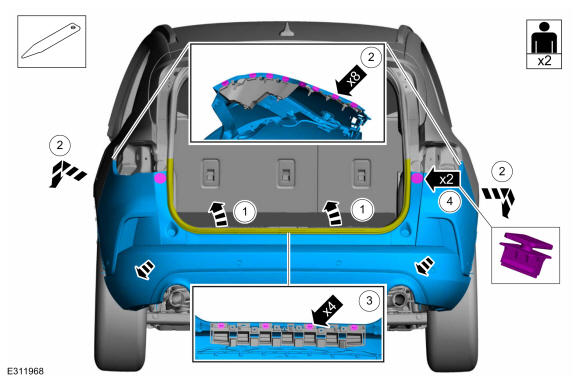

With the help of an assistant. Remove the rear bumper cover.
1. Position the luggage compartment weatherstrip aside.
2. Release the sides and rear of the rear bumper cover from the side and rear brackets.
3. Using a non-marring tool, release the center of the rear bumper cover from the rear bracket.
  Use the General Equipment: Interior Trim Remover
4. Release the trim pins.
Courtesy of FORD MOTOR COMPANY

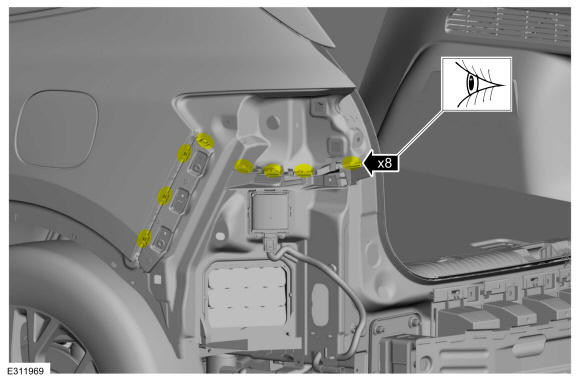

On both sides. Inspect the side brackets for damage.

Courtesy of FORD MOTOR COMPANY

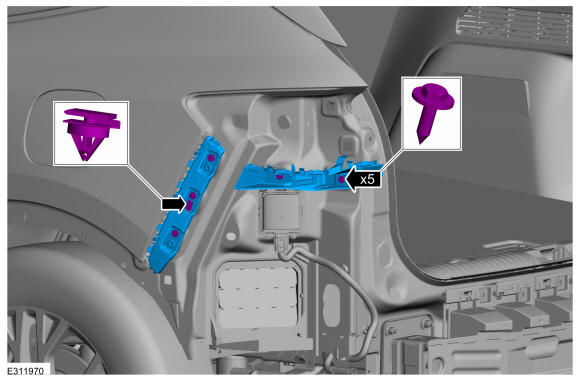

If required, on both sides. Remove the screws, the trim-pin and the damaged side brackets.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

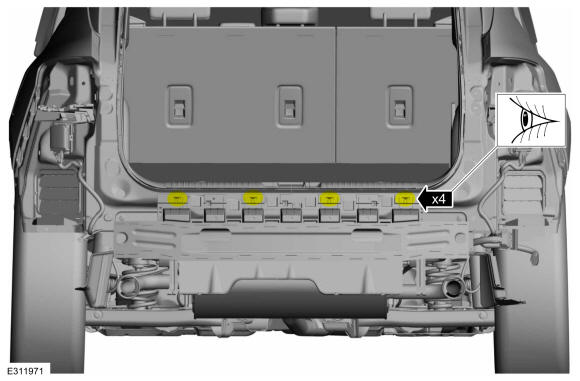

Inspect the rear bracket for damage.

Courtesy of FORD MOTOR COMPANY

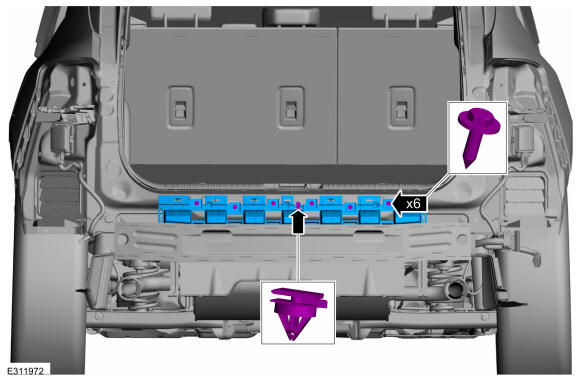

If required. Remove the screws, the trim-pin and the rear bracket.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
