Parking Brake Switch: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

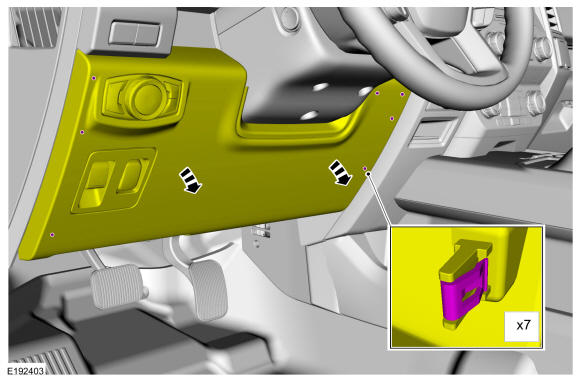

- Pull outward on the steering column opening cover detaching the 7 clips and position the cover downward.
 Courtesy of FORD MOTOR COMPANY
|

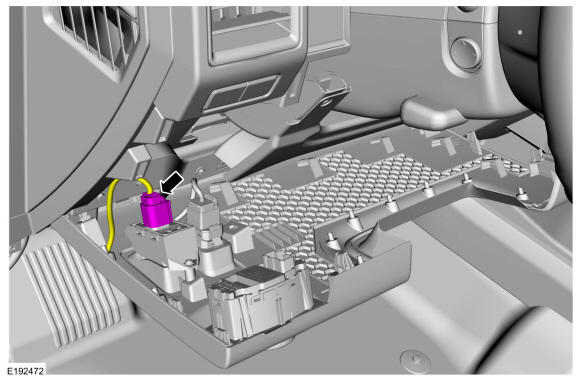

- Disconnect the EPB switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

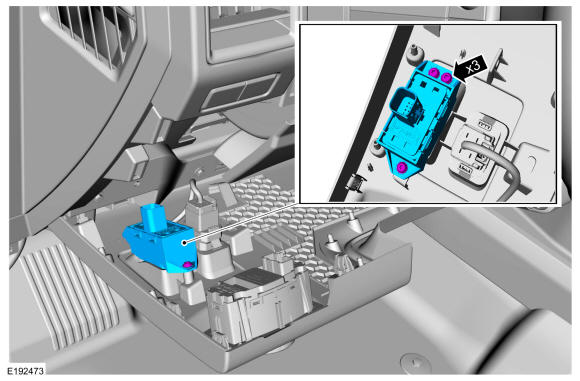

- Remove the 3 screws and the EPB switch.
Torque: 9 lb.in (1 Nm)
 Courtesy of FORD MOTOR COMPANY
|
