Wipers and Washers

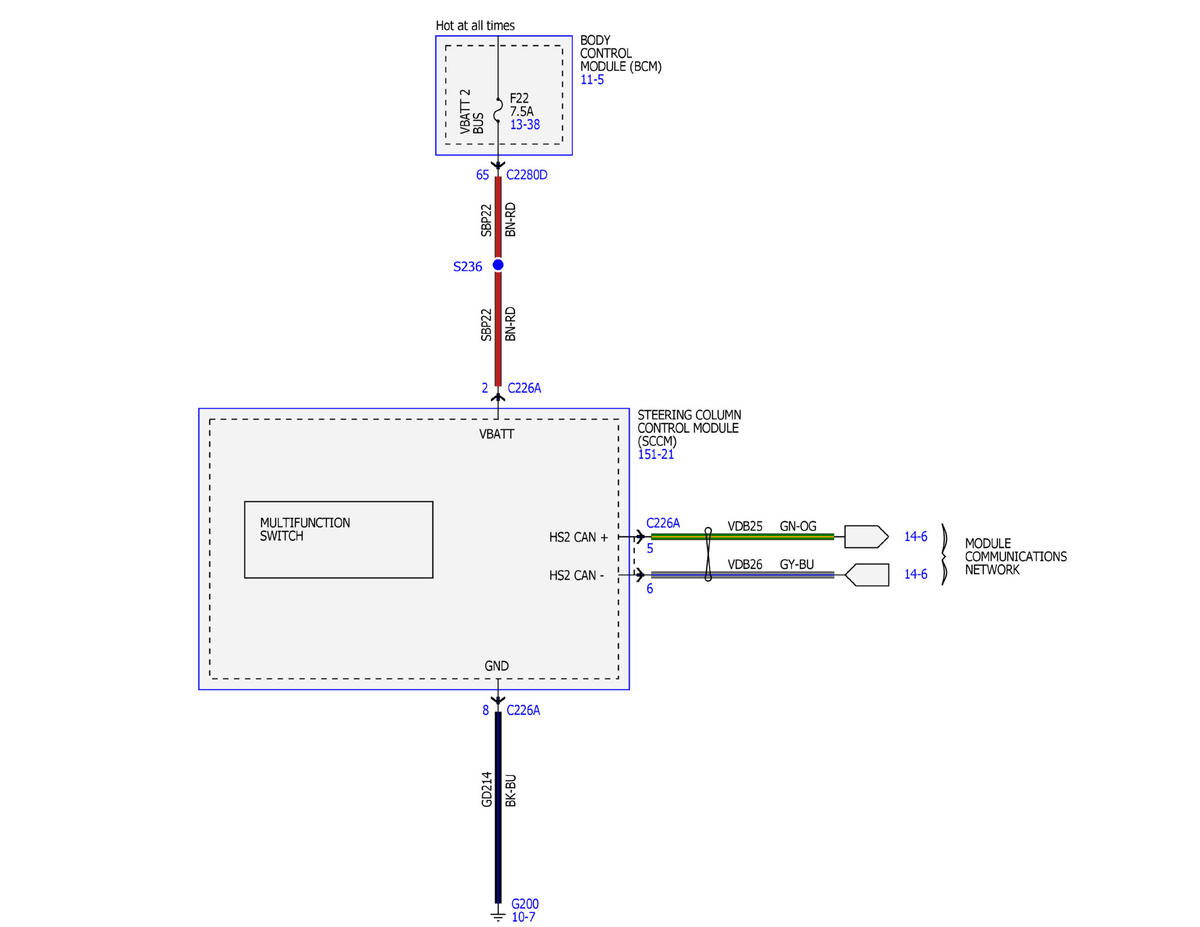

Fig 1: Wipers and Washers Wiring Diagram (1 Of 4)
GFDWR137424Courtesy of FORD MOTOR COMPANY

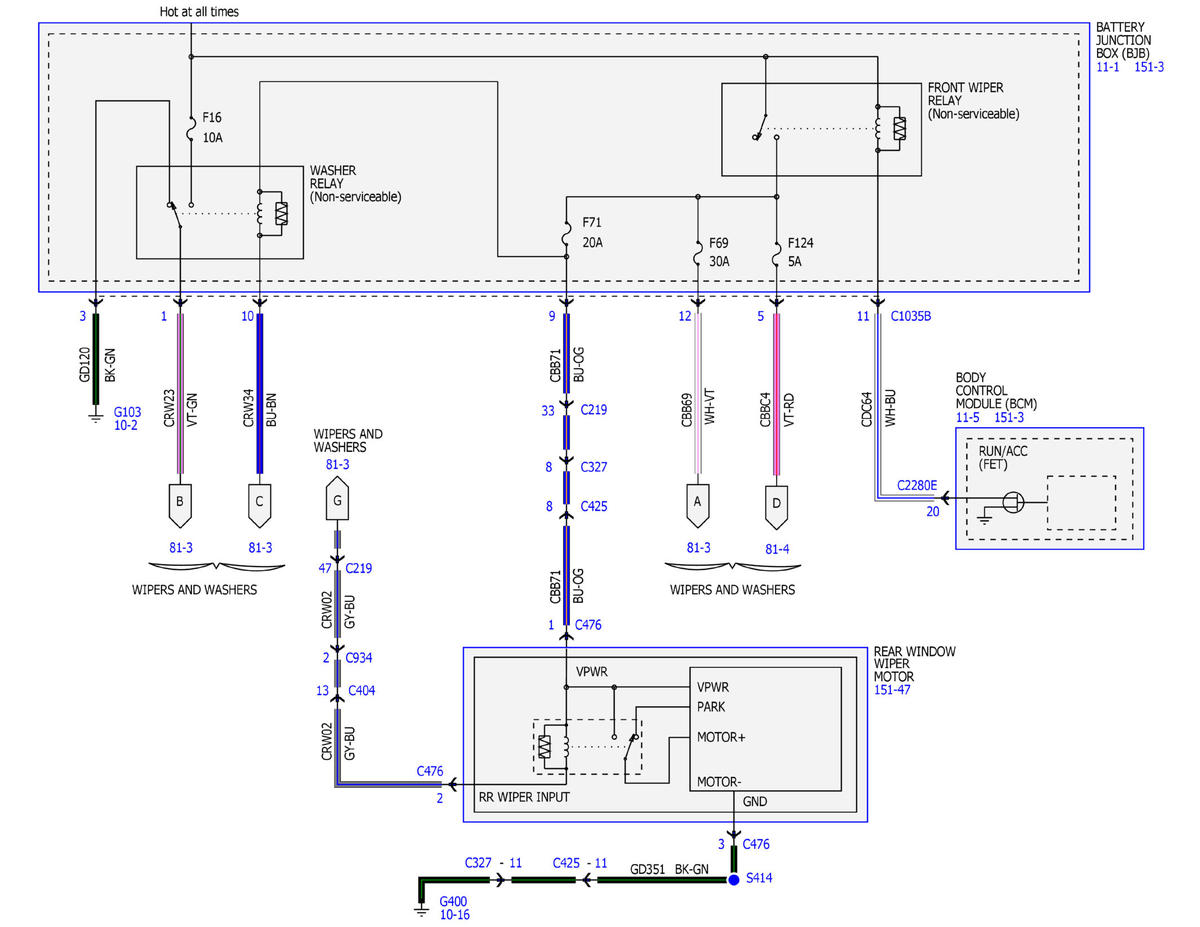

Fig 2: Wipers and Washers Wiring Diagram (2 Of 4)
GFDWR137425Courtesy of FORD MOTOR COMPANY

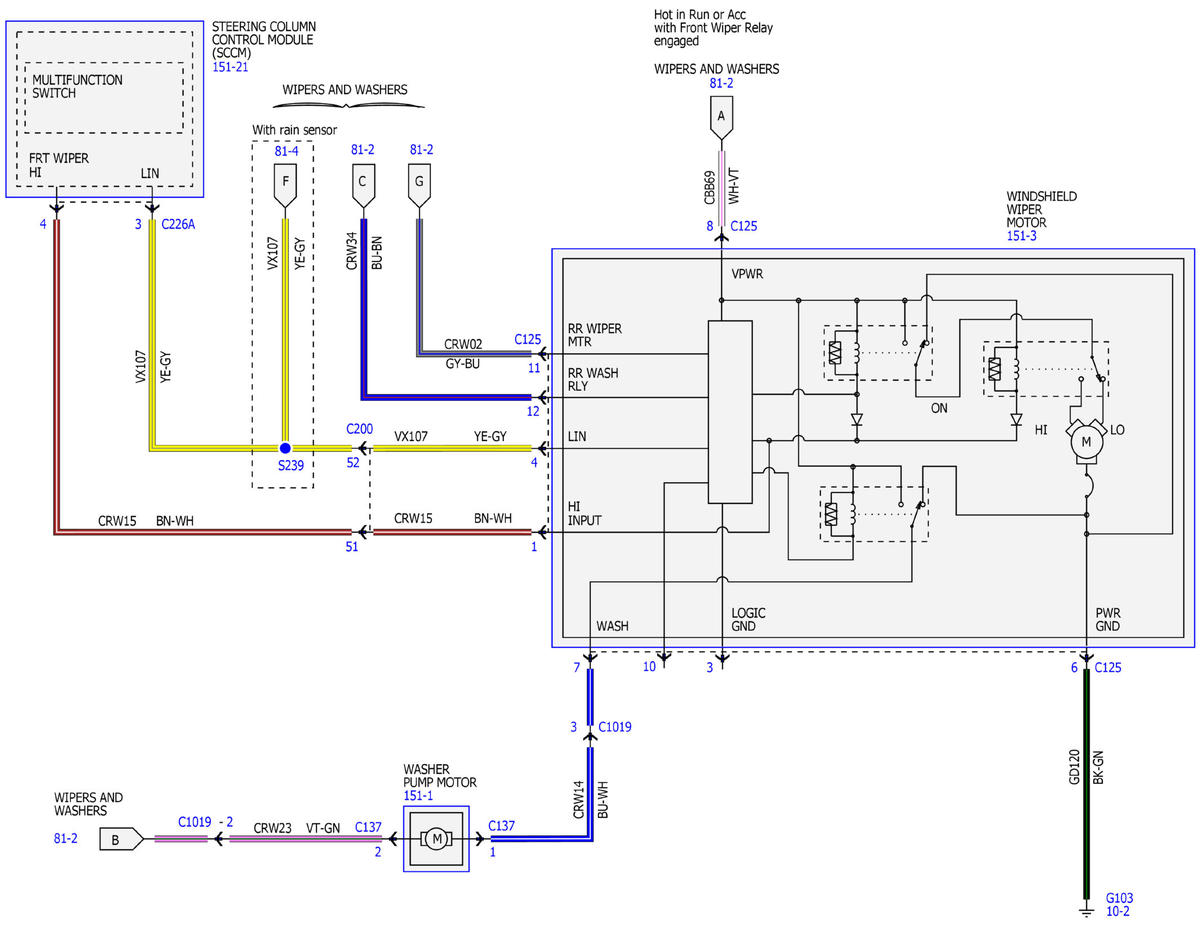

Fig 3: Wipers and Washers Wiring Diagram (3 Of 4)
GFDWR137426Courtesy of FORD MOTOR COMPANY

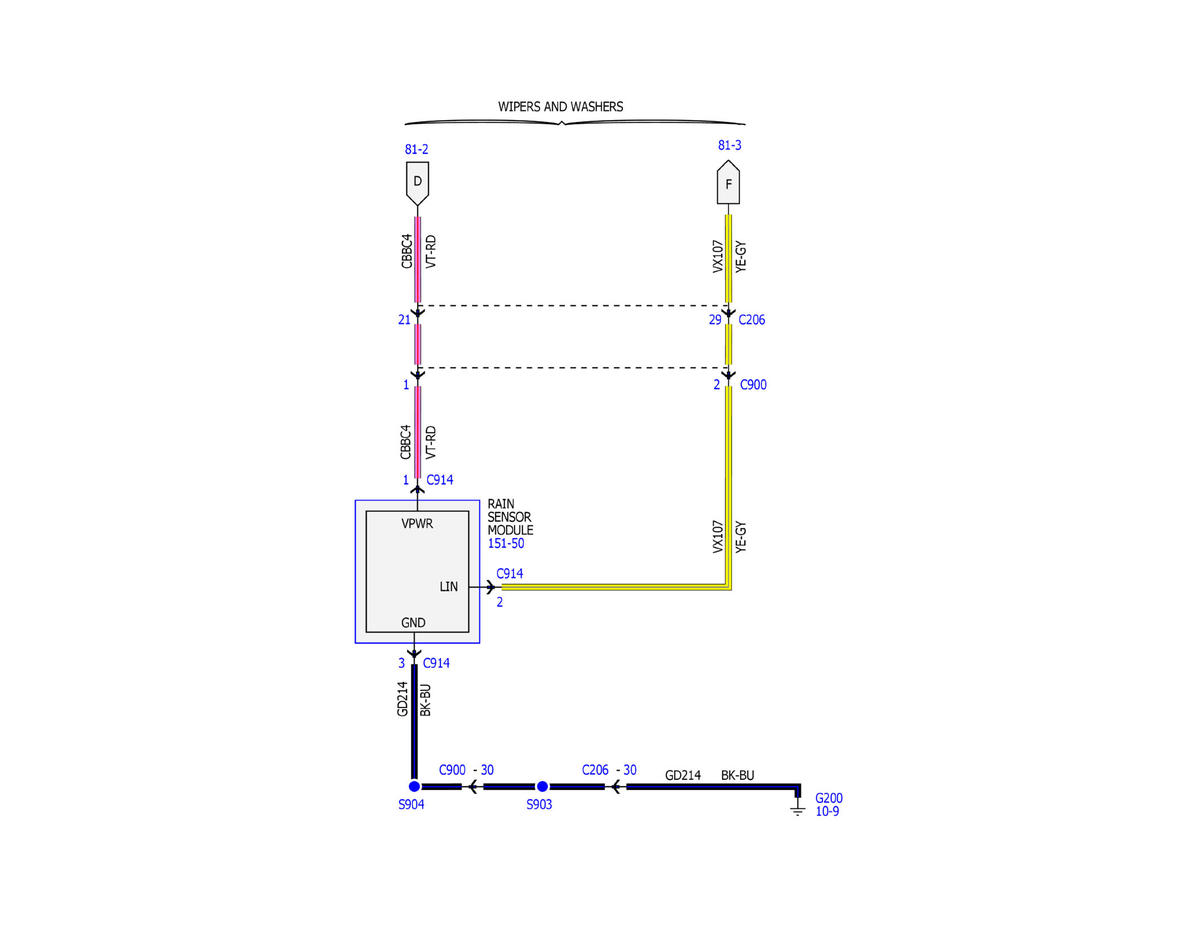

Fig 4: Wipers and Washers Wiring Diagram (4 Of 4)
GFDWR137427Courtesy of FORD MOTOR COMPANY
