Cluster and Panel Illumination
Cluster and Panel Illumination

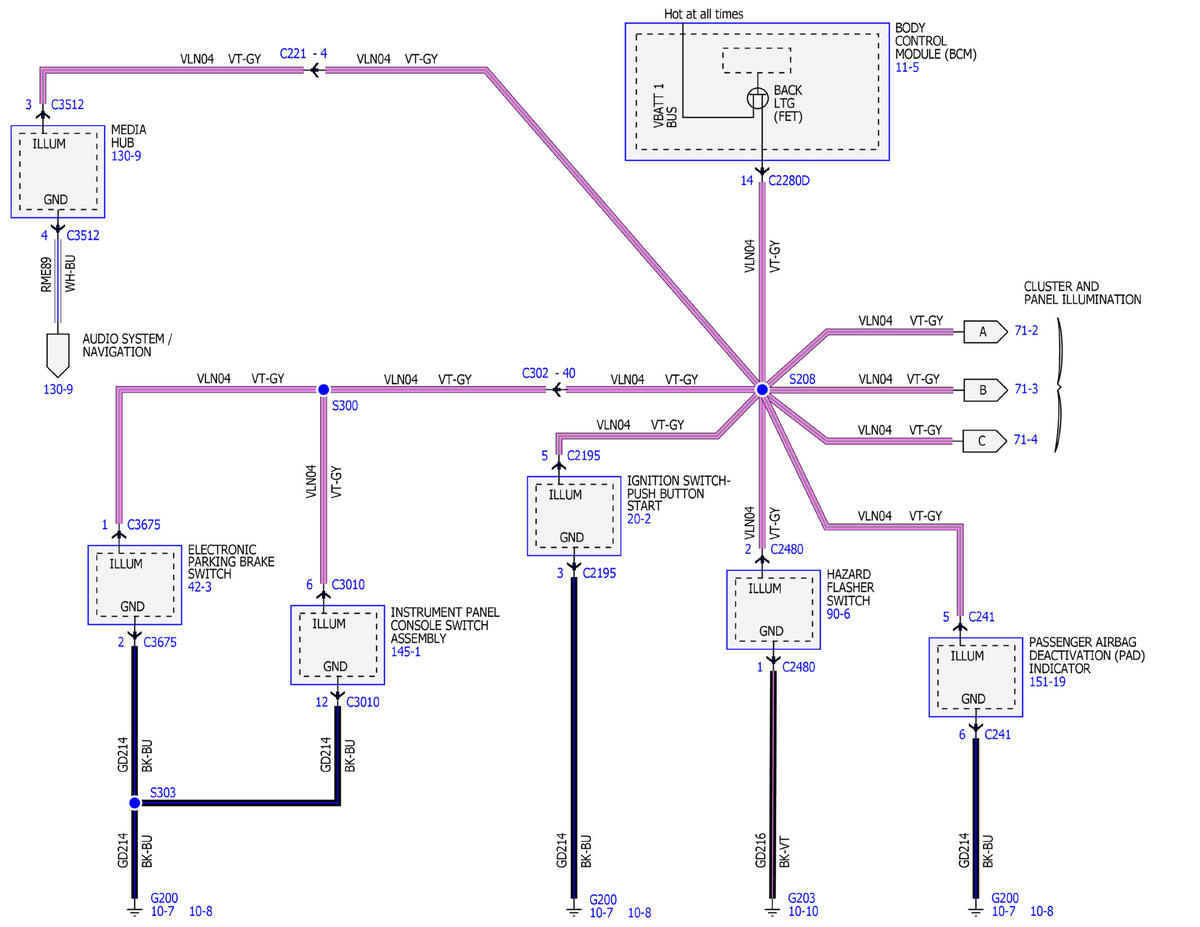

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR COMPANY

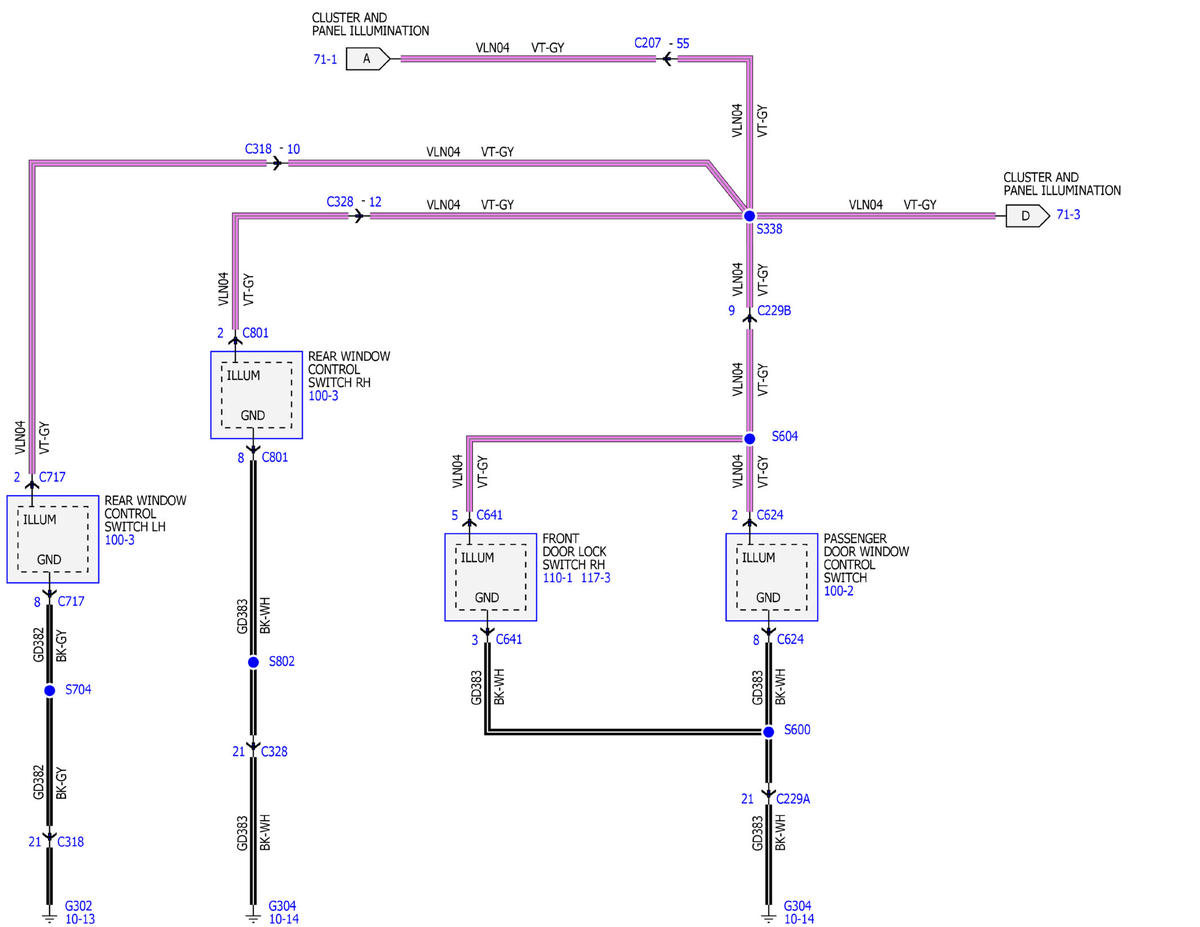

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR COMPANY

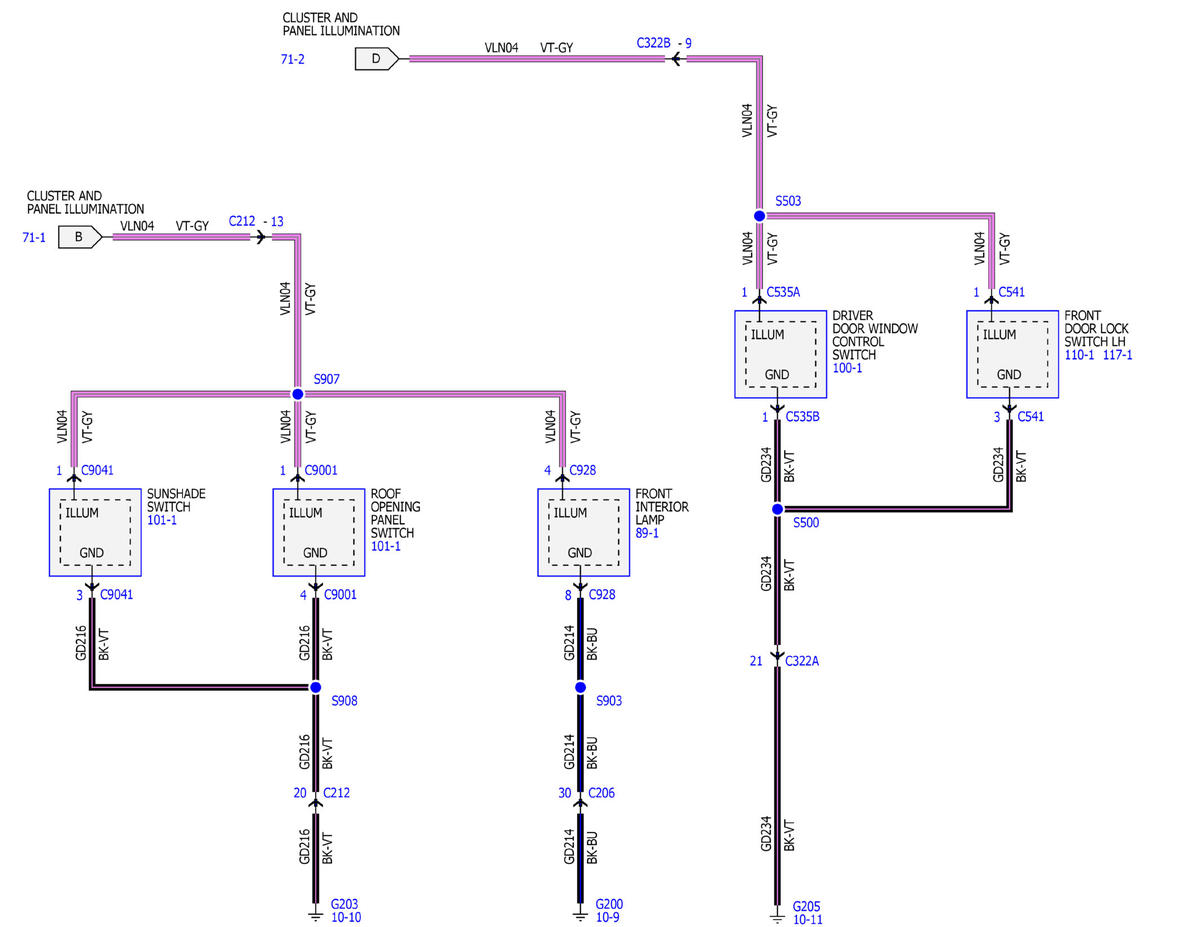

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR COMPANY

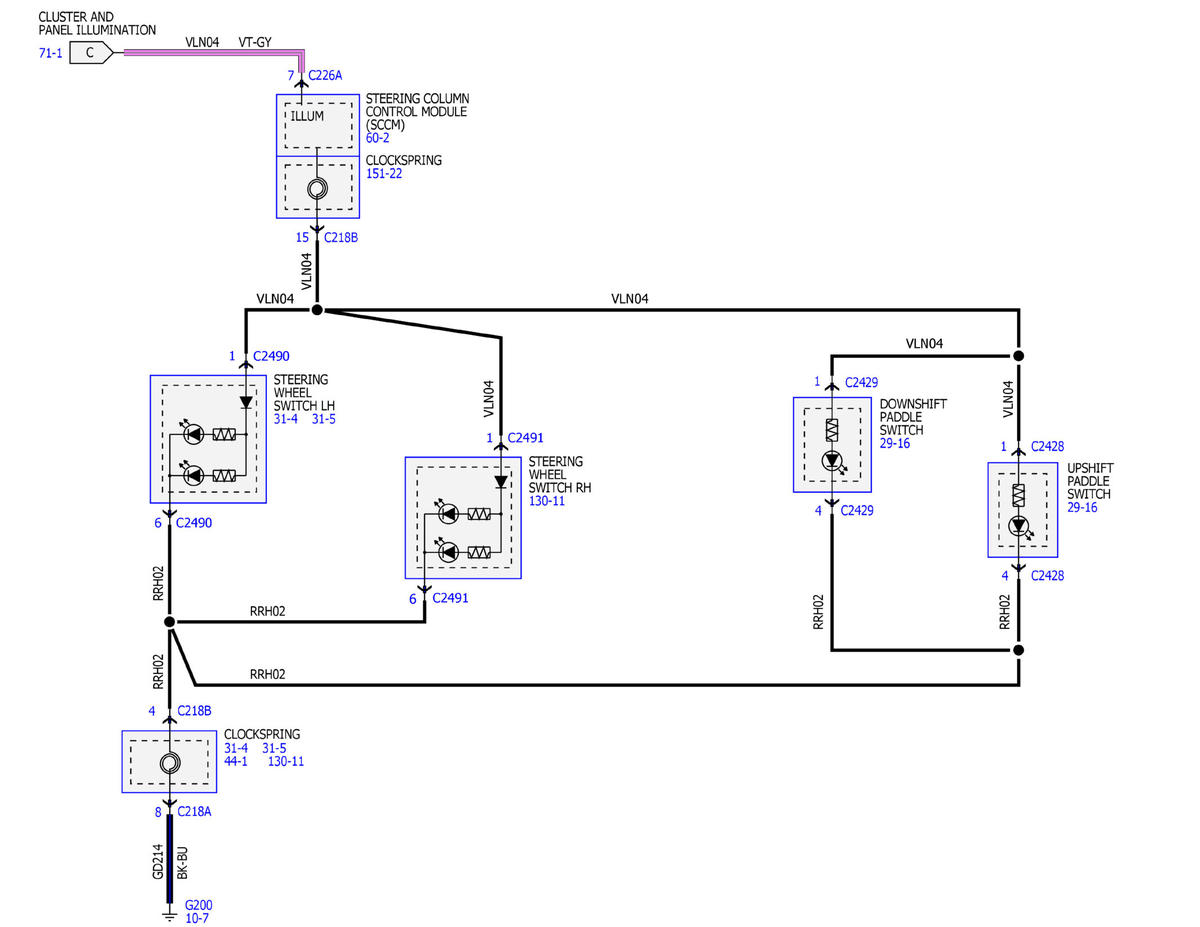

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
