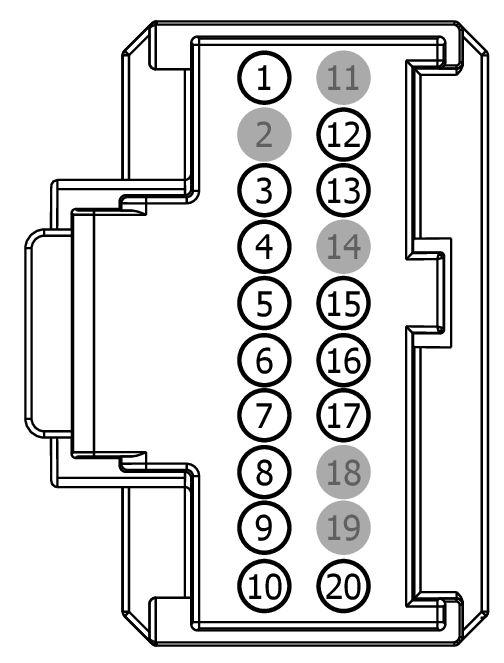

Connector End View (C4226A) - PARKING AID MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4226A	PARKING AID MODULE (PAM)	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-YB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBP08 (GY-YE)	20	FUSE - 8	9U5T-14474-DB
2	*	*	Not Used	N/A
3	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR +	9U5T-14474-DB
4	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	9U5T-14474-DB
5	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	9U5T-14474-DB
6	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE)	9U5T-14474-DB
7	VMP30 (BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE	9U5T-14474-DB
8	VDB26 (GY-BU)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-YB
9	VDB25 (GN-OG)	26	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-YB
10	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR -	9U5T-14474-DB
11	*	*	Not Used	N/A
12	CMP32 (GN)	22	SWITCH - ACTIVE PARK ASSIST (AUTOPARK)	9U5T-14474-DB
13	CMP18 (GN-BN)	22	SWITCH - PARKING AID	9U5T-14474-DB
14	*	*	Not Used	N/A
15	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	9U5T-14474-DB
16	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	9U5T-14474-DB
17	VMP29 (GN-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR LEFT SIDE	9U5T-14474-DB
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	GD382 (BK-GY)	20	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:
