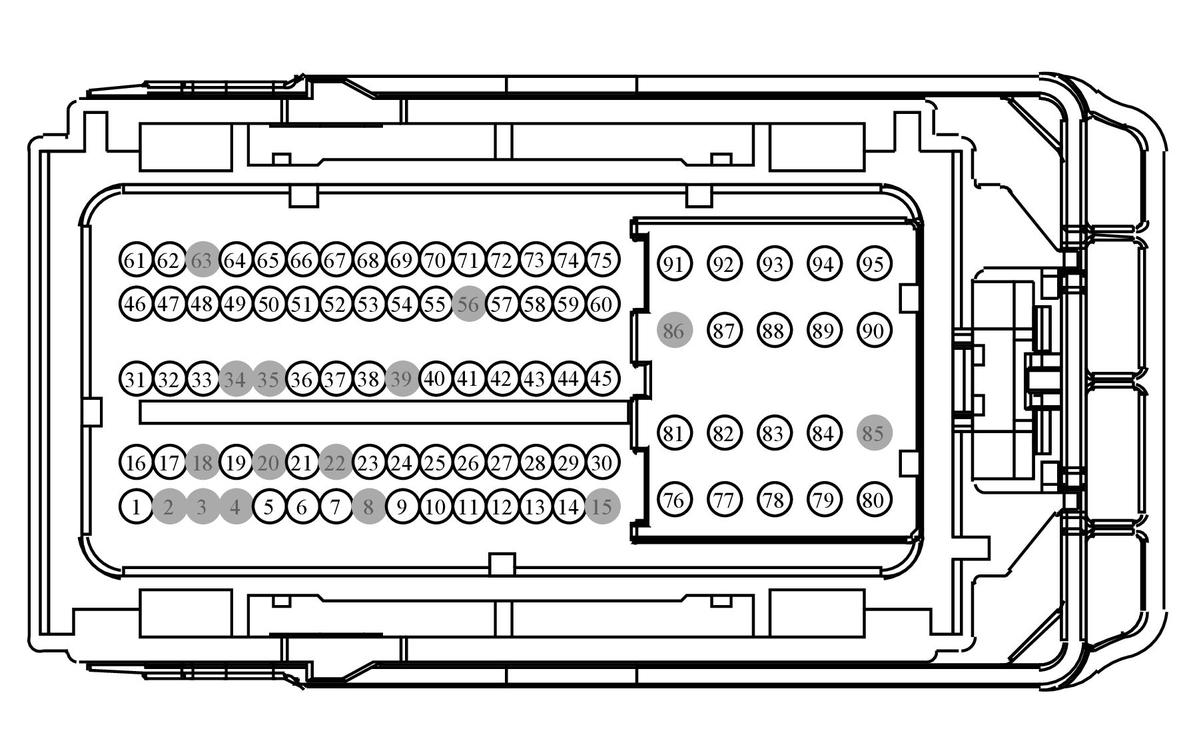

Connector End View (C1551E) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1551E	POWERTRAIN CONTROL MODULE (PCM)	BK	12C508	part# N/A	Not Available

Pin: 45 - CE304(YE-BU)-CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B), Gauge 18

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BUST-14474-BB	Not Available
BUST-14474-AB	Not Available
BUST-14474-UA	Not Available
BU5T-14474-BB	DU2Z-14474-CA	0.64
BU5T-14474-AB	DU2Z-14474-CA	0.64
7C3T-14474-EA	DU2Z-14474-DA	1.50
BU5T-14474-UA	DU2Z-14474-DA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)	BU5T-14474-BB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CE421 (YE-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1)	BU5T-14474-BB
6	CE148 (YE-GY)	20	CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE	BU5T-14474-AB
7	CE358 (GY-YE)	18	CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL	BU5T-14474-BB
8	*	*	Not Used	N/A
9	LE459 (GY)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3)	BU5T-14474-AB
10	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	BU5T-14474-AB
11	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BUST-14474-BB
12	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14474-BB
13	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	BU5T-14474-BB
14	RE429 (GY-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION)	BU5T-14474-AB
15	*	*	Not Used	N/A
16	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	BU5T-14474-AB
17	VE836 (VT-GN)	20	SENSOR - WASTEGATE POSITION (WGT_PS)	BU5T-14474-AB
18	*	*	Not Used	N/A
19	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	BU5T-14474-AB
20	*	*	Not Used	N/A
21	CMC14 (BN-YE)	18	SENSOR - LOW LEVEL ENGINE OIL	BU5T-14474-BB
22	*	*	Not Used	N/A
23	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	BU5T-14474-AB
24	VET97 (VT-OG)	20	SENSOR - TRANSMISSION FLUID PRESSURE 1	BU5T-14474-AB
25	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	BU5T-14474-AB
26	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	BU5T-14474-BB
27	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	BU5T-14474-AB
28	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +	BU5T-14474-AB
29	VET84 (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)	BU5T-14474-AB
30	LE135 (GY-VT)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	BU5T-14474-AB
31	VE826 (YE-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)	BUST-14474-BB
32	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)	BU5T-14474-BB
33	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)	BU5T-14474-BB
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	VE721 (WH-OG)	20	SENSOR - EXHAUST GAS RECIRCULATION VALVE POSITION	BU5T-14474-AB
37	VE713 (GN-OG)	20	SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE)	BU5T-14474-AB
38	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	BU5T-14474-AB
39	*	*	Not Used	N/A
40	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	BU5T-14474-AB
41	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	BU5T-14474-BB
42	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	BU5T-14474-BB
43	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	BU5T-14474-BB
44	VET98 (BN-YE)	20	SENSOR - TRANSMISSION FLUID PRESSURE 2	BUST-14474-AB
45	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	BU5T-14474-BB
46	VE850 (WH-VT)	20	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-AB
47	RE460 (GN-BU)	20	CTRL MOD. - POWERTRAIN # WASTEGATE SOLENOID (WGT_CV) -	BU5T-14474-AB
48	RE139 (GY-OG)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE -	BU5T-14474-AB
49	LE139 (BN-WH)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE +	BU5T-14474-AB
50	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	BU5T-14474-BB
51	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	BU5T-14474-BB
52	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	BU5T-14474-AB
53	VE804 (GN-BN)	20	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	BU5T-14474-AB
54	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	BU5T-14474-AB
55	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	BU5T-14474-AB
56	*	*	Not Used	N/A
57	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	BU5T-14474-AB
58	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)	BU5T-14474-BB
59	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	BU5T-14474-BB
60	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	BU5T-14474-BB
61	VE744 (GY-BN)	20	SENSOR - INTERMEDIATE SHAFT SPEED (ISS)	BUST-14474-AB
62	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	BU5T-14474-AB
63	*	*	Not Used	N/A
64	CET10 (BU-GY)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC)	BU5T-14474-AB
65	CET09 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS]	BU5T-14474-AB
66	CET94 (WH-OG)	20	CTRL MOD. - POWERTRAIN # ONE-WAY CLUTCH CONTROL HYDRAULIC	BU5T-14474-AB
67	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]	BU5T-14474-AB
68	VET26 (BN-RD)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	BUST-14474-AB
69	VE719 (GY-VT)	20	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE	BU5T-14474-AB
70	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF)	BU5T-14474-AB
71	LE461 (GY-YE)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2)	BU5T-14474-BB
72	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]	BU5T-14474-AB
73	CET11 (GN-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS]	BU5T-14474-AB
74	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]	BU5T-14474-AB
75	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	BU5T-14474-AB
76	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11)	7C3T-14474-DA
77	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	7C3T-14474-DA
78	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	7C3T-14474-DA
79	CE226 (YE-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	7C3T-14474-EA
80	VET81 (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)	BUST-14474-UA
81	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	7C3T-14474-DA
82	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	7C3T-14474-DA
83	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	7C3T-14474-DA
84	RE226 (GN-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	7C3T-14474-EA
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	CET44 (BU-WH)	20	CTRL MOD. - POWERTRAIN # PARK LOCK PAWL SOLENOID CONTROL	BU5T-14474-UA
88	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	7C3T-14474-DA
89	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	7C3T-14474-DA
90	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	BUST-14474-UA
91	CET49 (BN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)	BU5T-14474-UA
92	CET25 (BU-RD)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	BU5T-14474-UA
93	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	7C3T-14474-DA
94	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	7C3T-14474-DA
95	CET91 (YE-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE	BU5T-14474-UA
