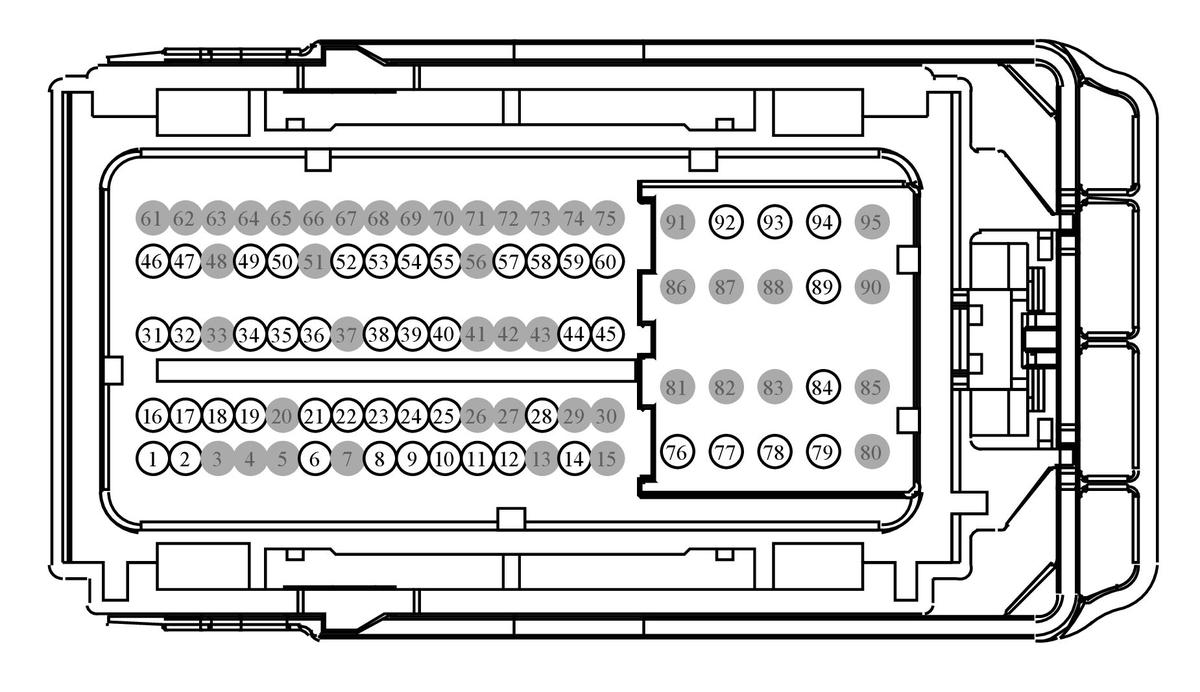

Connector End View (C1381E) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1381E	POWERTRAIN CONTROL MODULE (PCM)	BK	12C508	part# N/A	Not Available

Pin: 45 - VE706(BN-BU)-SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +, Gauge 18

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BB	DU2Z-14474-CA	0.64
BU5T-14474-AB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)	BU5T-14474-BB
2	CE347 (BU-GN)	18	CTRL MOD. - POWERTRAIN # REFUELING CONTROL RELAY (EVAPSV-2)	BU5T-14474-BB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)	BU5T-14474-BB
7	*	*	Not Used	N/A
8	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	BU5T-14474-AB
9	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS)	BU5T-14474-AB
10	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	BU5T-14474-AB
11	LE235 (GY-VT)	18	CTRL MOD. - POWERTRAIN # FUEL TEMPERATURE SENSOR (VREF)	BU5T-14474-BB
12	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	BU5T-14474-BB
13	*	*	Not Used	N/A
14	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	BU5T-14474-BB
15	*	*	Not Used	N/A
16	LE152 (BN-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST PRESSURE SENSOR +	BU5T-14474-BB
17	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	BU5T-14474-BB
18	CBK01 (BU)	18	FUSE - 1 (VPWR 1)	BU5T-14474-BB
19	CET34 (BU-GN)	18	SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)	BU5T-14474-BB
20	*	*	Not Used	N/A
21	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)	BU5T-14474-BB
22	RE152 (WH-GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST PRESSURE SENSOR -	BU5T-14474-BB
23	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	BU5T-14474-AB
24	VE751 (BN-VT)	18	SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2)	BU5T-14474-BB
25	CMC24 (GY)	18	SWITCH - OIL PRESSURE	BU5T-14474-BB
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	LE424 (YE-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)	BU5T-14474-BB
29	*	*	Not Used	N/A
30	*	*	Not Used	N/A
31	VE850 (WH-VT)	18	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-BB
32	VE804 (GN-BN)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +	BU5T-14474-BB
33	*	*	Not Used	N/A
34	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	BU5T-14474-BB
35	RE719 (BN-BU)	18	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE-	BU5T-14474-BB
36	VE826 (BN-VT)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)	BU5T-14474-BB
37	*	*	Not Used	N/A
38	VE713 (GN-OG)	18	SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE)	BU5T-14474-BB
39	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	BU5T-14474-BB
40	RE138 (BU-GN)	18	CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR	BU5T-14474-BB
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	BU5T-14474-BB
45	VE706 (BN-BU)	18	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	BU5T-14474-BB
46	LE164 (BU-GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION +	BU5T-14474-BB
47	RE164 (BN-YE)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. BYPASS POSITION -	BU5T-14474-BB
48	*	*	Not Used	N/A
49	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	BU5T-14474-BB
50	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	BU5T-14474-BB
51	*	*	Not Used	N/A
52	CE205 (GN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	BU5T-14474-AB
53	CE207 (VT-GY)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	BU5T-14474-AB
54	CE208 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	BU5T-14474-AB
55	CE206 (GY-YE)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	BU5T-14474-AB
56	*	*	Not Used	N/A
57	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14474-BB
58	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BU5T-14474-BB
59	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	BU5T-14474-BB
60	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKPP) +	BU5T-14474-BB
61	*	*	Not Used	N/A
62	*	*	Not Used	N/A
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	*	*	Not Used	N/A
66	*	*	Not Used	N/A
67	*	*	Not Used	N/A
68	*	*	Not Used	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	*	*	Not Used	N/A
73	*	*	Not Used	N/A
74	*	*	Not Used	N/A
75	*	*	Not Used	N/A
76	VE719 (GY-VT)	18	SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE	7C3T-14474-DA
77	RE804 (GY-BU)	18	SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) -	7C3T-14474-DA
78	VE734 (BN-YE)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)	7C3T-14474-DA
79	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	7C3T-14474-DA
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	7C3T-14474-DA
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)	7C3T-14474-DA
90	*	*	Not Used	N/A
91	*	*	Not Used	N/A
92	CE233 (WH-OG)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)	7C3T-14474-DA
93	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11)	7C3T-14474-DA
94	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	7C3T-14474-DA
95	*	*	Not Used	N/A
