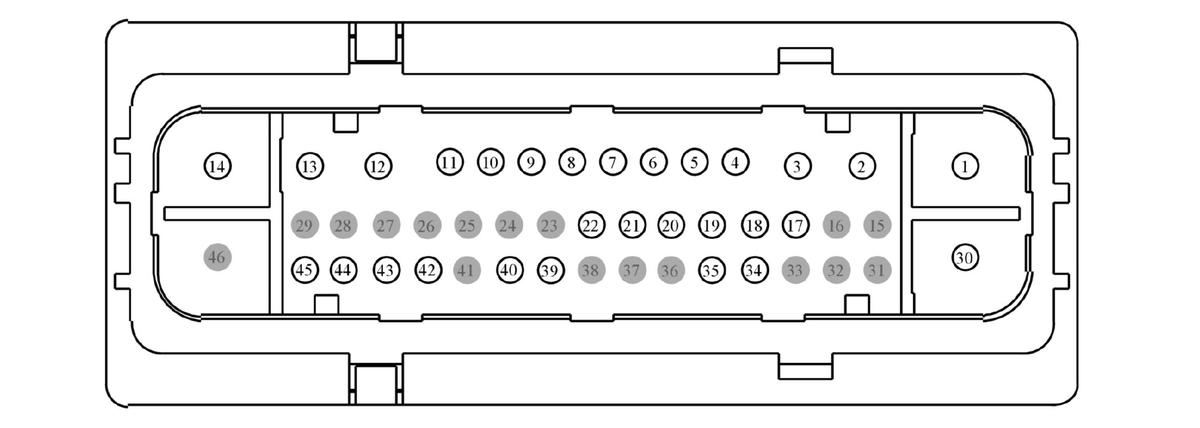

Connector End View (C155) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C155	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	BK	14290	part# N/A	See Below

Pin: 22 - CCB25(BN)-CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6, Gauge 22

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1C1T-14474-AA	KU2Z-14474-AA	6.30
DU5T-14474-LBB	EU2Z-14474-AB	2.80
CU5T-14474-EB	DU2Z-14474-CA	0.64
97BG-14474-CFA	KU2Z-14474-AA	6.30

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB29 (GY-RD)	8	FUSE - 29	1C1T-14474-AA
2	CCB18 (YE-GY)	12	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT LOCK (+)	DU5T-14474-LBB
3	CCB19 (GN-BN)	12	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-)	DU5T-14474-LBB
4	RCA19 (GN-WH)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
5	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT	CU5T-14474-EB
6	RCA18 (BN-GN)	22	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	CU5T-14474-EB
7	VCA04 (BU-OG)	22	SENSOR - WHEEL SPEED LEFT REAR	CU5T-14474-EB
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	CU5T-14474-EB
9	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	CU5T-14474-EB
10	RCA20 (BN)	22	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	CU5T-14474-EB
11	VCA06 (WH-OG)	22	SENSOR - WHEEL SPEED RIGHT REAR	CU5T-14474-EB
12	CCB17 (BU-GN)	12	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-)	DU5T-14474-LBB
13	CCB16 (WH-VT)	12	CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT LOCK (+)	DU5T-14474-LBB
14	GD124 (BK-VT)	8	GROUND - FENDER FRONT RIGHT # 2ND POINT	1C1T-14474-AA
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CCB20 (BU-WH)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 1	CU5T-14474-EB
18	CCB21 (GN-VT)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 2	CU5T-14474-EB
19	CCB22 (WH-BN)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 3	CU5T-14474-EB
20	CCB23 (VT-GN)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 4	CU5T-14474-EB
21	CCB24 (WH-OG)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 5	CU5T-14474-EB
22	CCB25 (BN)	22	CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6	CU5T-14474-EB
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	SBB28 (GN-RD)	10	FUSE - 28	97BG-14474-CFA
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	VCA38 (BN)	22	SENSOR - BRAKE VACUUM SIGNAL 1	CU5T-14474-EB
35	CBB23 (BN-YE)	20	FUSE - 23	CU5T-14474-EB
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	CU5T-14474-EB
40	LCA37 (YE-OG)	22	CTRL MOD. - SENSOR BRAKE VACUUM +	CU5T-14474-EB
41	*	*	Not Used	N/A
42	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	CU5T-14474-EB
43	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	CU5T-14474-EB
44	RMC19 (YE-GY)	20	SWITCH - LOW LEVEL BRAKE FLUID	CU5T-14474-EB
45	RCA37 (WH-BU)	22	CTRL MOD. - SENSOR BRAKE VACUUM -	CU5T-14474-EB
46	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1603

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-NA

Gauge:

12 14 20

Pin material:

Tin

Cavities:

46

Vehicle Uses:

• Module - Anti-Lock Brake System
