Electric Brake Booster (EBB) - Full Hybrid Electric Vehicle (FHEV)/Plug-In Hybrid Electric Vehicle (PHEV): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The EBB and the ABS module are serviced as an assembly and should not be separated.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

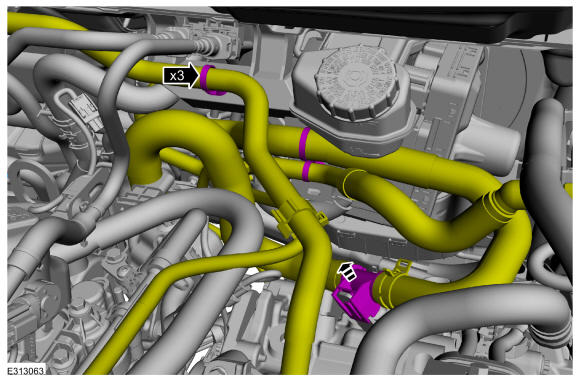

Detach the coolant hose retainers and position the coolant hoses aside.

Courtesy of FORD MOTOR COMPANY

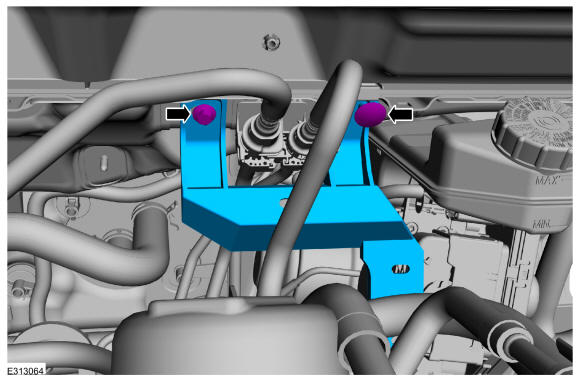

Remove the bolt, the pin-type retainer and the bracket.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the DCDC. Refer to: Direct Current/Direct Current (DC/DC) Converter Control Module

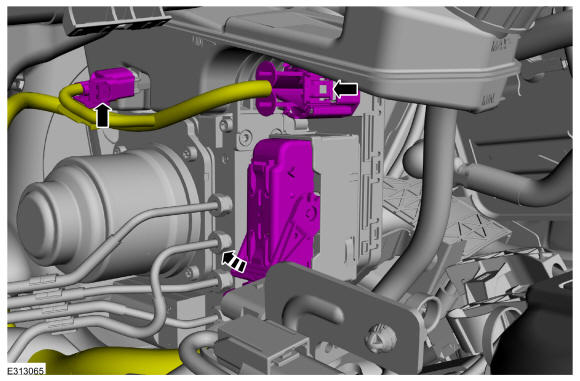

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
NOTE: If the brake fluid is spilled on any component, the affected area must be immediately washed down with cold water.

NOTE: Make sure that all openings are sealed.

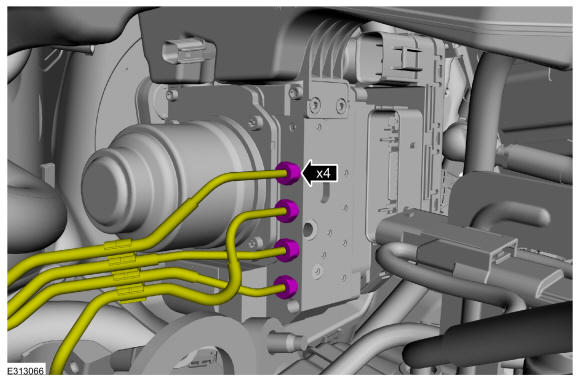

Disconnect the brake tube fittings.

Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the stoplamp switch. Refer to: Stoplamp Switch

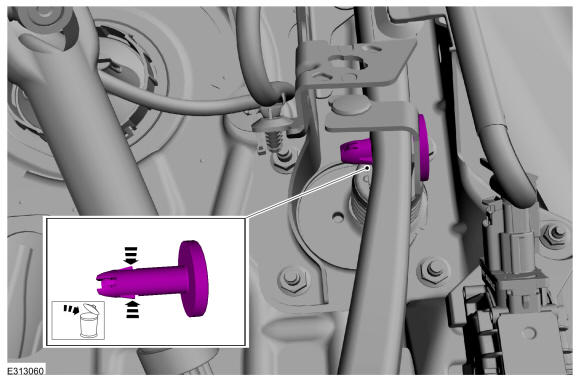

Push inward on the tabs and remove the clevis pin. Discard the pin.

Courtesy of FORD MOTOR COMPANY

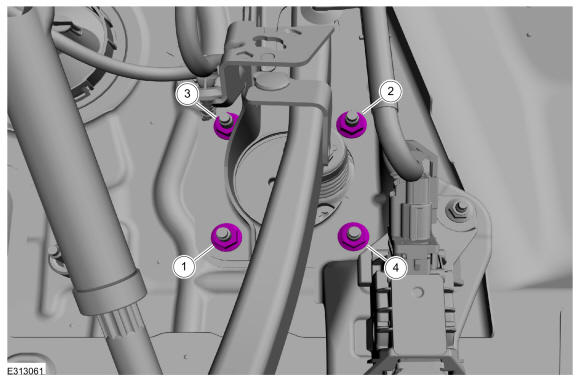

Remove the EBB nuts in the order shown in illustration.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

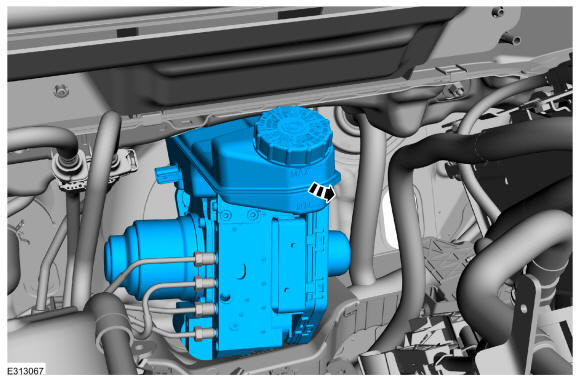

Remove the the EBB.

Courtesy of FORD MOTOR COMPANY
