RTT Indicators

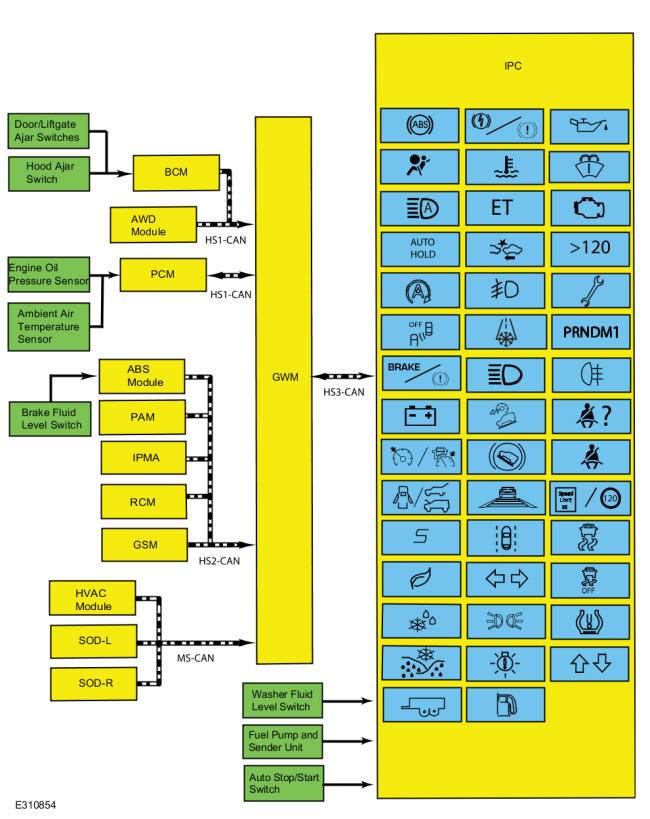

System Diagram - Indicators and RTT Indicators

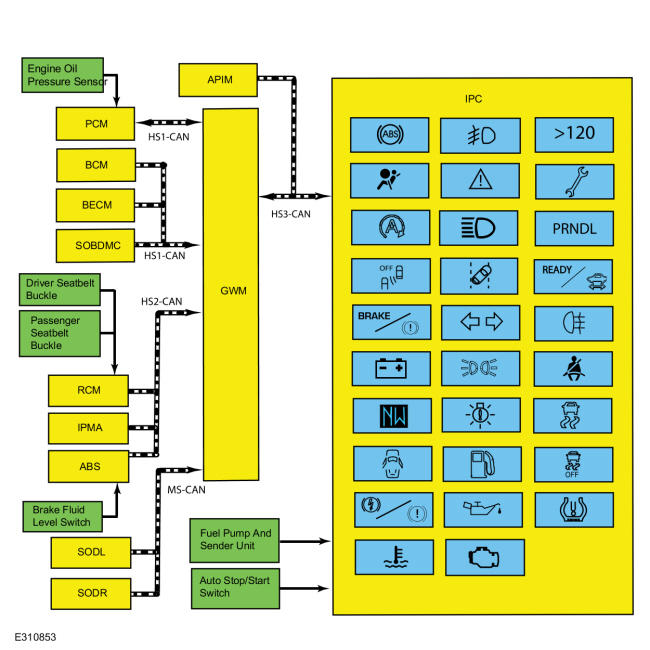

Indicators
RTT Indicators

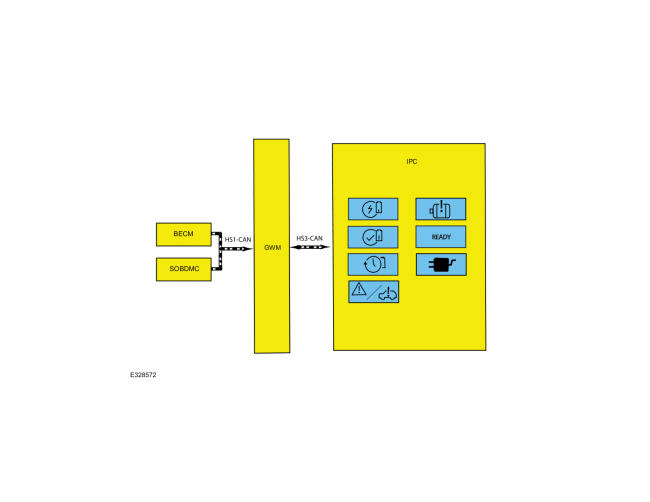

RTT Indicators, Hybrid Only
Network Message Chart - Indicators and RTT Indicators
Module Network Input Messages - IPC
| Broadcast Message | Originating Module | Message Purpose |
|---|---|---|
| ABS warning indicator request | ABS module | Input used to control the ABS warning indicator and RTT warning indicator. |
| Active drive mode status | ABS module | Input used to control the selected drive mode RTT indicator. |
| Adaptive cruise control gap display | IPMA | Input used to control the adaptive cruise control gap RTT indication. |
| Adaptive cruise control follow mode display | IPMA | Input used to control the adaptive cruise control follow mode RTT indication. |
| Adjustable speed limiter indicator request | PCM | Input used to control the speed limiter RTT indicator. |
| Airbag warning indicator request | RCM | Input used to control the airbag warning indicator and RTT warning indicator. |
| Auto high beam indication request | IPMA | Input used to control the auto high beam RTT indicator. |
| Auto hold mode indicator | ABS module | Input used to control the auto hold RTT indicator. |
| AWD service required | AWD module | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| Battery low state of charge | BCM | Input used to control the charging system warning indicator and RTT indicator. |
| Battery shed level request | BCM | Input used to control the PRNDL or PRNDM display. |
| Body service required request | BCM | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| Brake lamp request | ABS module | Brake fluid level input used to control the brake warning indicator and RTT indicator. |
| Brake warning indicator request | BCM | Parking brake input used to control the brake warning indicator and RTT indicator. |
| Brake (red) warning indicator request | ABS module | ABS input used to control the brake warning indicator and RTT indicator. |
| Charge cord connection status (PHEV) | SOBDMC | Input used to control the vehicle plugged in RTT indicator. |
| Check plug to start display request (PHEV) | SOBDMC | Input used to control the vehicle plugged in RTT indicator. |
| Compass direction | APIM | Input used to control the compass indication. |
| Cruise control override | PCM | Input used to control the cruise control RTT indicator. |
| Cruise control set speed display | PCM | Input used to control the set speed display RTT indicator. |
| Cruise control status | PCM | Input used to control the cruise control RTT indicator. |
| Cross traffic alert left sensor status | SODL | Input used to control the BLIS off indicator and RTT indicator. |
| Cross traffic alert left status | SODL | Input used to control the BLIS off indicator and RTT indicator. |
| Cross traffic alert right sensor status | SODR | Input used to control the BLIS off indicator and RTT indicator. |
| Cross traffic alert right status | SODR | Input used to control the BLIS off indicator and RTT indicator. |
| Driver door ajar status | BCM | Input used to control the door ajar indicator and RTT indicator. |
| Driver rear seatbelt buckle status | RCM | Input used to control the rear seatbelt monitor RTT indicator. |
| Driver seatbelt buckle status | RCM | Input used to control the seatbelt warning indicator and RTT indicator. |
| Electric vehicle (EV) charge mode status (PHEV) | BECM | Input used to control the Electric Vehicle (EV) charge RTT indicator. |
| Electric vehicle (EV) later mode status (PHEV) | SOBDMC | Input used to control the Electric Vehicle (EV) later RTT indicator. |
| Electric vehicle (EV) now mode status (PHEV) | SOBDMC | Input used to control the Electric Vehicle (EV) now RTT indicator. |
| Engine coolant temperature data | PCM | Input used to control the engine over-temperature warning indicator and RTT indicator. |
| Engine oil pressure warning indicator request | PCM | Input used to control the engine oil pressure warning indicator and RTT warning indicator. |
| Engine overheat indication request | PCM | Input used to control the engine over-temperature warning indicator and RTT indicator. |
| Engine rpm data | PCM | Input used to control the low engine oil pressure warning indicator and RTT warning indicator. |
| Engine service required request | PCM | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| Forward collision warning indicator request | IPMA | Input used to control the forward collision alert RTT warning indicator. |
| Front fog lamp indicator request | BCM | Input used to control the front fog lamp indicator and RTT indicator. |
| Gear lever position | PCM | Input used to control the seatbelt warning indicator, RTT indicator and BeltMinder®. |
| GSM service required | GSM | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| Headlamp low beam out | BCM | Input used to control the LED low beam malfunction indicator and RTT indicator. |
| HEV battery warning lamp request | BECM | Input used to control the HEV hazard warning indicator and RTT warning indicator. |
| HEV motor over-temperature indicator request | SOBDMC | Input used to control the HEV motor over-temperature RTT warning indicator. |
| HEV service required display | SOBDMC | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| HEV transmission warning lamp request | SOBDMC | Input used to control the HEV hazard warning indicator and RTT warning indicator. |
| High beam status | BCM | Input used to control the high beam indicator and RTT indicator. |
| Hill descent control indicator request | ABS module | Input used to control the hill descent control RTT indicator. |
| Hill start assist status | ABS module | Input used to control the hill start assist indicator and RTT indicator. |
| Hood ajar status | BCM | Input used to control the door ajar indicator and hood ajar RTT indicator. |
| Ignition status | BCM | Ignition RUN, START and accessory states required for the IPC operating modes and fault reporting. |
| Lane keeping system active display | IPMA | Input used to control the lane keep assist indication. |
| Lane keeping system status display | IPMA | Input used to control the lane departure warning RTT indicator. |
| Left rear door ajar status | BCM | Input used to control the door ajar indicator and RTT indicator. |
| Left turn lamp on request | BCM | Input used to control the LH turn indicator and RTT indicator. |
| Liftgate ajar status | BCM | Input used to control the door ajar indicator and liftgate ajar RTT indicator. |
| Low fuel warning indicator request | PCM | Input used to control the low fuel warning indicator and RTT warning indicator. |
| MIL request | PCM | Input used to control the MIL indicator and RTT indicator. |
| Outside air temperature status | HVAC module | Input used to control the frost warning RTT indicator. |
| Parking brake (red) indicator request | ABS module | Input from the ABS for the parking brake input used to control the brake warning indicator and RTT indicator. |
| Parking brake (yellow) indicator request | ABS module | Input used to control the electric parking brake indicator and RTT indicator. |
| Parklamp status | BCM | Input used to control the lights on indicator and RTT indicator. |
| Park lock control status | BCM | Input used to control the PRNDL or PRNDM display. |
| Passenger door ajar status | BCM | Input used to control the door ajar indicator and RTT indicator. |
| Passenger front detect status | RCM | Input used to control the seatbelt warning indicator and RTT indicator. |
| Passenger rear seatbelt buckle status | RCM | Input used to control the rear seatbelt monitor RTT indicator. |
| Passenger seatbelt buckle status | RCM | Input used to control the seatbelt warning indicator and RTT indicator. |
| Ready to drive indication request (HEV) | SOBDMC | Input used to control the ready to drive indicator and RTT indicator. |
| Rear center seatbelt buckle status | RCM | Input used to control the rear seatbelt monitor RTT indicator. |
| Rear fog lamp indicator request | BCM | Input used to control the rear fog lamp indicator and RTT indicator. |
| Right rear door ajar status | BCM | Input used to control the door ajar indicator and RTT indicator. |
| Right turn lamp on request | BCM | Input used to control the RH turn indicator and RTT indicator. |
| Selectable drive mode request | ABS module | Input used to control the selected drive mode RTT indicator. |
| Selectable drive mode status | ABS module | Input used to control the selected drive mode RTT indicator. |
| Side obstacle status-left | SODL | Input used to control the BLIS off indicator and RTT indicator. |
| Side obstacle status-right | SODR | Input used to control the BLIS off indicator and RTT indicator. |
| Stability-traction control indicator request | ABS module | Input used to control the stability/traction control (sliding car icon) indicator and RTT indicator. |
| Stop-start drive mode indicator request | PCM | Input used to control the auto stop-start indicator and RTT indicator. |
| Stop-start standby indicator request | PCM | Input used to control the auto stop-start indicator and RTT indicator. |
| Tire pressure warning indicator | BCM | Input used to control the TPMS indicator and RTT indicator. |
| Traction control off indicator request | ABS module | Input used to control the stability/traction control disabled (sliding car OFF icon) indicator and RTT indicator. |
| Traffic sign recognition status request | IPMA | Input used to control the speed limit sign recognition RTT indicator. |
| Transmission gear display | PCM | Input used to control the PRNDL or PRNDM display. Input used to control the SelectShift RTT indicator. |
| Transmission gear display mode | PCM | Input used to control the PRNDL or PRNDM display. |
| Transmission service required | PCM | Input used to control the powertrain malfunction (wrench) warning indicator and RTT indicator. |
| Transport mode | BCM | Input used to control the PRNDL or PRNDM state upon vehicle entry and at key off to conserve battery voltage when in transport mode. |
| Vehicle speed | PCM | Input used to confirm a park detect input concern for PRNDL or PRNDM indication. Input used to control the seatbelt warning indicator, RTT indicator and BeltMinder®. Input used to control the overspeed warning indicator and RTT indicator (Gulf Cooperative Countries [GCC]). |
