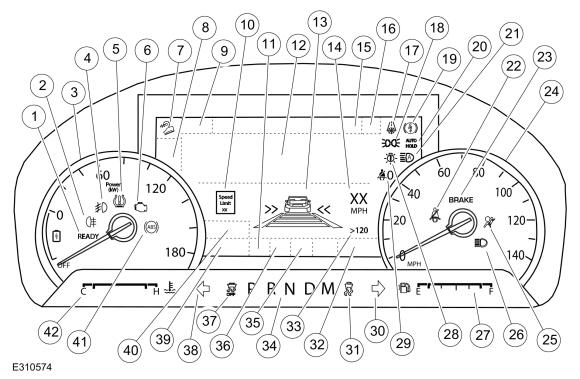

Mid-Level IPC - Hybrid
Mid-Level IPC
| Item | Description |
|---|---|
| 1 | Ready to drive indicator |
| 2 | Rear fog lamp indicator (Except North America) |
| 3 | Power gauge |
| 4 | Front fog lamp indicator |
| 5 | TPMS indicator |
| 6 | MIL |
| 7 | Hill descent control RTT indicator |
| 8 | Rotating RTT indicators: Engine over-temperature Low fuel Hill start assist BLIS off Door, hood, liftgate ajar Low engine oil pressure Charging system (12-volt) Powertrain malfunction (wrench) Low washer fluid Engineering test (ET) mode Hazard HEV Motor over-temperature HEV Battery shut-off (HEV), China only State of charge (HEV), China only Vehicle plugged in (PHEV) |
| 9 | Navigation indication |
| 10 | Speed limit sign recognition RTT indicator |
| 11 | Rotating RTT indicators: Electric Vehicle (EV) now (PHEV) Electric Vehicle (EV) later (PHEV) Electric Vehicle (EV) charge (PHEV) |
| 12 | Message center display |
| 13 | Adaptive cruise control RTT indicator Lane keeping assist RTT indicator |
| 14 | Digital speedometer display |
| 15 | Compass display |
| 16 | Outside air temperature display |
| 17 | Frost RTT indicator (Except North America) |
| 18 | Parklamps/headlamps on RTT indicator |
| 19 | Electric parking brake RTT indicator |
| 20 | Auto hold RTT indicator |
| 21 | Auto high beam RTT indicator |
| 22 | Seatbelt/BeltMinder® warning indicator |
| 23 | Brake warning indicator |
| 24 | Speedometer |
| 25 | Airbag warning indicator |
| 26 | High beam indicator |
| 27 | Fuel gauge |
| 28 | LED low beam malfunction RTT indicator |
| 29 | Rear seatbelt monitor RTT indicator |
| 30 | RH turn indicator |
| 31 | Stability-traction control (sliding car icon) warning indicator |
| 32 | DTE display Battery gauge (PHEV) Electric Vehicle (EV) range display |
| 33 | Overspeed warning RTT indicator (Gulf Cooperative Countries [GCC]) |
| 34 | PRNDM indicator |
| 35 | Selectshift RTT indicator |
| 36 | Drive mode RTT indicators: Normal Sport ECO Tow haul Slippery Sand/Snow |
| 37 | Stability-traction control disabled (sliding car off icon) warning indicator |
| 38 | LH turn indicator |
| 39 | Odometer display |
| 40 | Cruise control RTT indicator Adaptive cruise control RTT indicator Cruise control set speed display |
| 41 | ABS warning indicator |
| 42 | Temperature gauge |
