High-Level IPC - Single Gauge, Hybrid

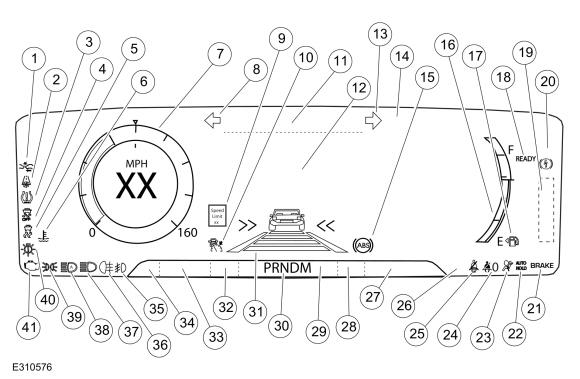

High-Level IPC
| Item | Description |
|---|---|
| 1 | Forward collision alert warning RTT indicator |
| 2 | Frost warning RTT indicator (Except North America) |
| 3 | TPMS indicator |
| 4 | Stability-traction control disabled (sliding car off icon) warning RTT indicator |
| 5 | Stability-traction control (sliding car icon) warning RTT indicator |
| 6 | Engine over-temperature warning RTT indicator |
| 7 | Virtual speedometer |
| 8 | LH turn RTT indicator |
| 9 | Speed limit sign recognition RTT indicator |
| 10 | Cruise control RTT indicator Adaptive cruise control RTT indicator |
| 11 | Audio selection display Navigation display |
| 12 | Main message center display |
| 13 | RH turn RTT indicator |
| 14 | ABS warning RTT indicator |
| 15 | Information on-demand display area |
| 16 | Virtual fuel gauge |
| 17 | Low fuel warning RTT indicator |
| 18 | Ready to drive RTT indicator |
| 19 | Rotating RTT indicators: BLIS off Charging system Door, hood, liftgate ajar Engineering test (ET) mode Hazard HEV Motor over-temperature HEV Battery shut off HEV) China only Hill descent control Hill start assist Low engine oil pressure Low washer fluid Powertrain malfunction (wrench) Vehicle plugged in (PHEV) |
| 20 | Electric parking brake RTT indicator |
| 21 | Brake warning RTT indicator |
| 22 | Auto hold RTT indicator |
| 23 | Airbag warning RTT indicator |
| 24 | Rear seatbelt monitor RTT indicator |
| 25 | Seatbelt/BeltMinder® warning RTT indicator |
| 26 | Rotating RTT indicators: Electric Vehicle (EV) now (PHEV) Electric Vehicle (EV) later (PHEV) Electric Vehicle (EV) charge (PHEV) |
| 27 | DTE display Battery gauge (PHEV) Electric Vehicle (EV) range display |
| 28 | Outside air temperature display |
| 29 | SelectShift |
| 30 | PRNDM display |
| 31 | Adaptive cruise control RTT indicator Lane keeping assist RTT indicator |
| 32 | Drive mode RTT indicators: Normal Sport ECO Tow haul Slippery Sand/Snow |
| 33 | Odometer display |
| 34 | Compass display |
| 35 | Front fog lamp RTT indicator |
| 36 | Rear fog lamp RTT indicator (Except North America) |
| 37 | High beam RTT indicator |
| 38 | Auto high beam RTT indicator |
| 39 | Lights on RTT indicator |
| 40 | LED low beam malfunction RTT indicator |
| 41 | MILRTT indicator |
