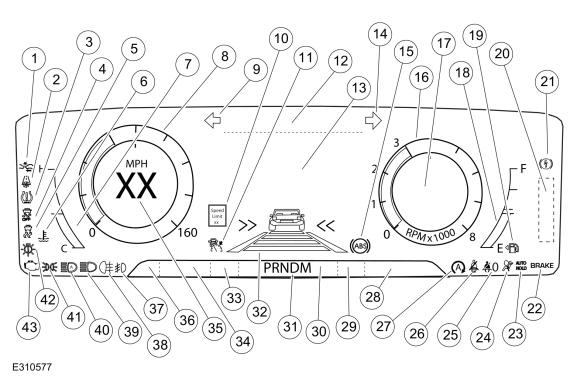

High-Level IPC - Dual Gauge, Gas
High-Level IPC
| Item | Description |
|---|---|
| 1 | Forward collision alert warning RTT indicator |
| 2 | Frost warning RTT indicator (Except North America) |
| 3 | TPMS indicator |
| 4 | Stability-traction control disabled (sliding car off icon) warning RTT indicator |
| 5 | Stability-traction control (sliding car icon) warning RTT indicator |
| 6 | Engine over-temperature warning RTT indicator |
| 7 | Virtual temperature gauge |
| 8 | Virtual speedometer |
| 9 | LH turn RTT indicator |
| 10 | Speed limit sign recognition RTT indicator |
| 11 | Cruise control RTT indicator Adaptive cruise control RTT indicator |
| 12 | Audio selection display Navigation display |
| 13 | Main message center display Information on-demand display |
| 14 | RH turn RTT indicator |
| 15 | ABS warning RTT indicator |
| 16 | Virtual tachometer |
| 17 | Off road display |
| 18 | Virtual fuel gauge |
| 19 | Low fuel warning RTT indicator |
| 20 | Rotating RTT indicators: BLIS off Charging system (12-volt) Door, hood, liftgate ajar Engineering test (ET) mode Hill descent control Hill start assist Low engine oil pressure Low washer fluid Powertrain malfunction (wrench) |
| 21 | Electric parking brake RTT indicator |
| 22 | Brake warning RTT indicator |
| 23 | Auto hold RTT indicator |
| 24 | Airbag warning RTT indicator |
| 25 | Rear seatbelt monitor RTT indicator |
| 26 | Seatbelt/BeltMinder® warning RTT indicator |
| 27 | Auto stop/start RTT indicator |
| 28 | DTE display |
| 29 | Outside air temperature display |
| 30 | SelectShift |
| 31 | PRNDM display |
| 32 | Adaptive cruise control RTT indicator Lane keeping assist RTT indicator |
| 33 | Drive mode RTT indicators: Normal Sport ECO Tow haul Slippery Sand/Snow |
| 34 | Odometer display |
| 35 | Digital speedometer |
| 36 | Compass display |
| 37 | Front fog lamp RTT indicator |
| 38 | Rear fog lamp RTT indicator (Except North America) |
| 39 | High beam RTT indicator |
| 40 | Auto high beam RTT indicator |
| 41 | Lights on RTT indicator |
| 42 | LED low beam malfunction RTT indicator |
| 43 | MILRTT indicator |
