Head Up Display (HUD) - Overview: Overview
The HUD provides a supplemental display for driver information. All selectable HUD information and warnings are displayed approximately 2 meters forward of the driver and in the driver's line of sight. A screen that folds up or down from the instrument panel operates as a semi-transparent mirror reshaping the light rays from the internal TFT display. The driver can raise or lower the screen in order to adjust the reflected virtual image up or down. The display can be turned on, off, adjusted and set up to display individual features using the RH steering wheel switch.

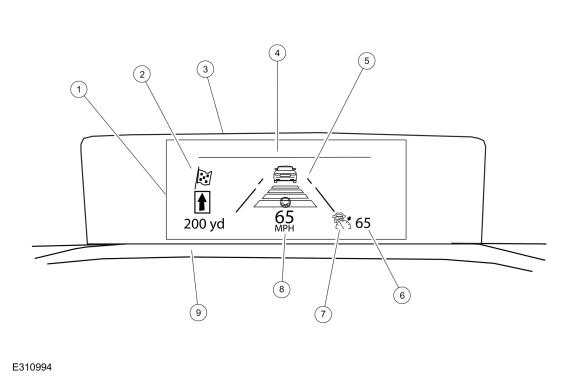

HUD
| Item | Description |
|---|---|
| 1 | Virtual driver information display |
| 2 | Navigation display area |
| 3 | Combiner HUD screen |
| 4 | Main information display Incoming call display Navigation display |
| 5 | Adaptive cruise control display area Lane centering assist display area Lane keeping assist display area Distance indication display area Forward collision warning display |
| 6 | Cruise control set speed display |
| 7 | Cruise control/adaptive cruise control indicator |
| 8 | Digital speedometer display |
| 9 | Instrument panel |
The HUD menu can be activated using the switch located in the center console.
The following items are displayed in the HUD and can be turned on or off using the setup menu.
- Cruise control/Adaptive cruise control
- Distance indication
- Forward collision warning
- Incoming phone calls
- Lane centering assist
- Lane keeping assist
- Navigation
- Speed
The HUD settings can be adjusted using the setup menu button.
- Vertical position of the virtual display
- Vertical size of the virtual display
- Brightness level of the virtual display
For details about the HUD functionality and the display setup, refer to the Owner's Literature.
