Glove Compartment: Removal

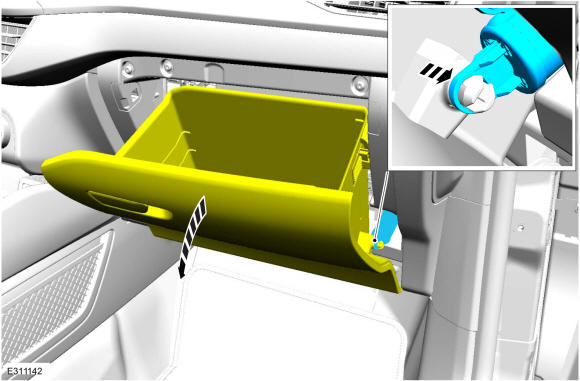

  1. Open the glove compartment and remove the check strap.
    GFD591700Courtesy of FORD MOTOR COMPANY

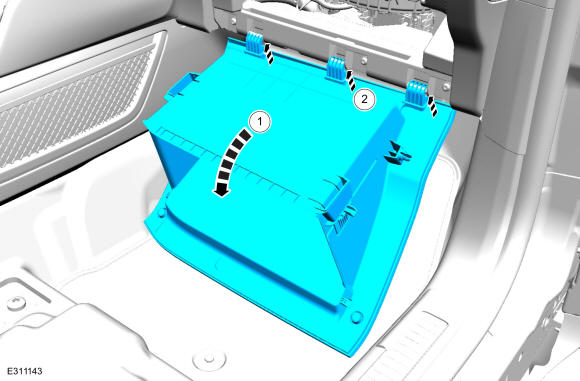

    1. Fully lower the glove compartment.
    2. Lift glove compartment off hinge pivot.
    GFD591701Courtesy of FORD MOTOR COMPANY

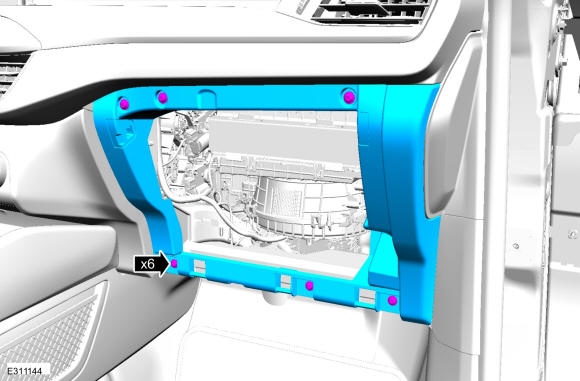

  3. Remove the bolts and the glove compartment close out.

    Torque

    : 22 lb.in (2.5 Nm)

GFD591702Courtesy of FORD MOTOR COMPANY
