Parking Aid - Component Location

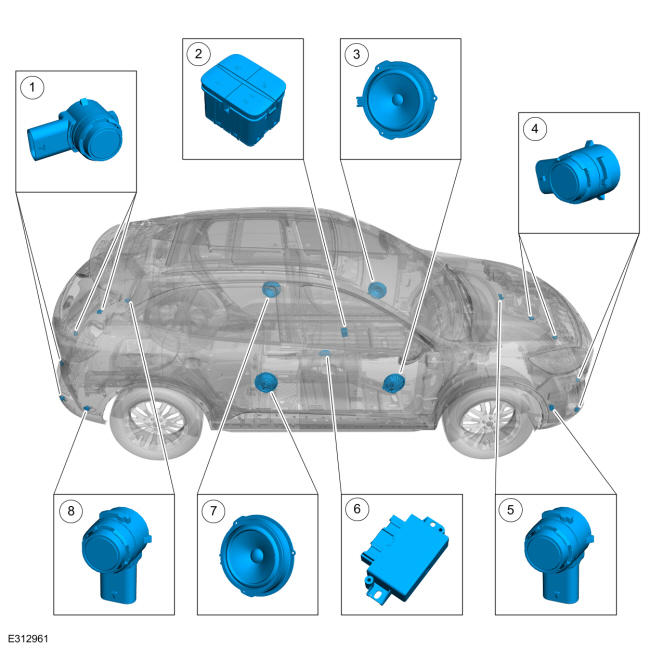

Component Location, Parking Aid - Audible without 360 Degree View Camera
| Item | Description |
|---|---|
| 1 | Rear parking aid sensors |
| 2 | Parking aid switch |
| 3 | Front speakers (part of audio system) |
| 4 | Front parking aid sensors |
| 5 | Front active park assist sensors |
| 6 | PAM |
| 7 | Rear speakers (part of audio system) |
| 8 | Rear side sensors |
