Removal And Installation: Radiator: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the condenser outlet line. Refer to: Condenser Outlet Line - 2.5L Duratec - Hybrid (121kW/164PS) (BG)
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding
- Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud

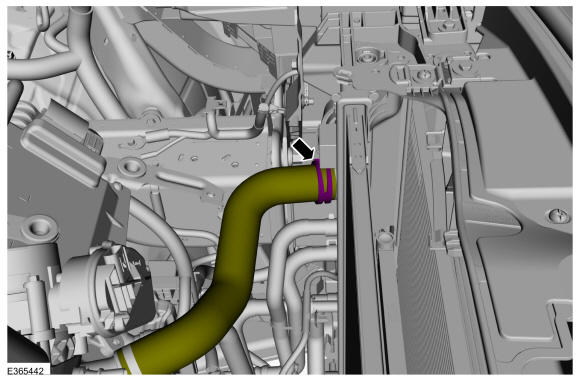

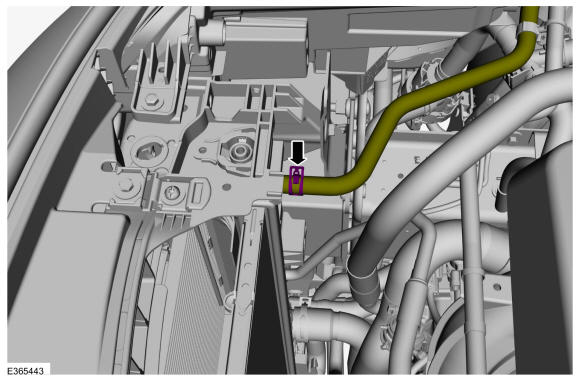

- Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the transmission fluid cooler tubes. Refer to: Transmission Fluid Cooler Tubes

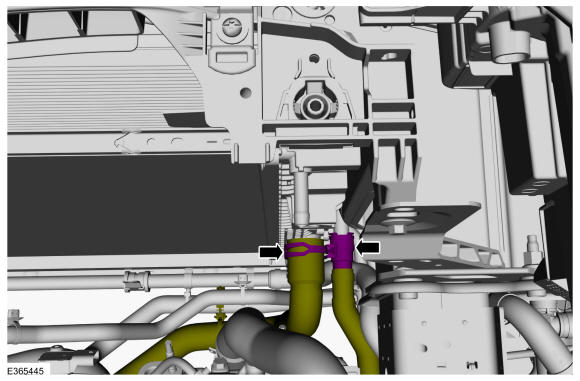

- Release the clamp and disconnect the radiator vent hose. Use the General Equipment: Hose Clamp Remover/Installer
- Remove A/C compressor outlet line. Refer to: Air Conditioning (A/C) Compressor Outlet Line - 2.5L Duratec - Hybrid (121kW/164PS) (BG)
-
NOTE: Make sure to cover any open ports to prevent debris from entering the system.
Remove the nut and disconnect the A/C compressor inlet line from the A/C compressor.
Torque: 159 lb.in (18 Nm)
-

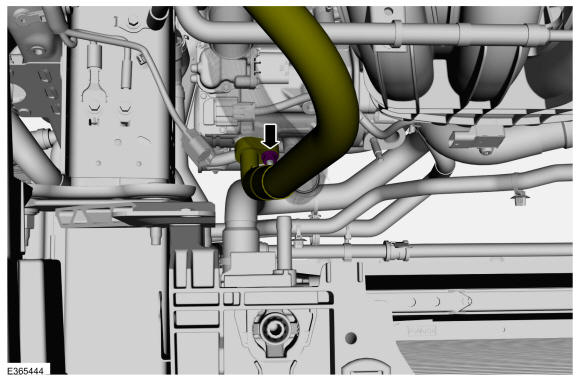

- Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

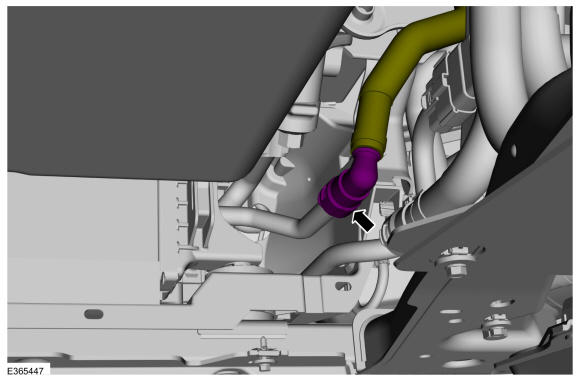

- Disconnect the quick connect hose coupling.

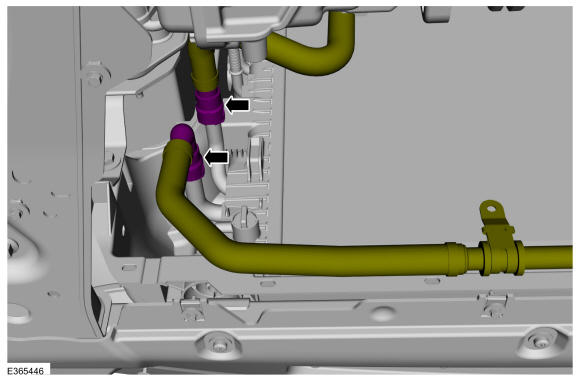

- Disconnect the quick connect hose couplings.
- Remove the coolant pump. Refer to: Coolant Pump
- Disconnect the quick connect hose coupling.
-
NOTE: Take extra care not to damage the clips.

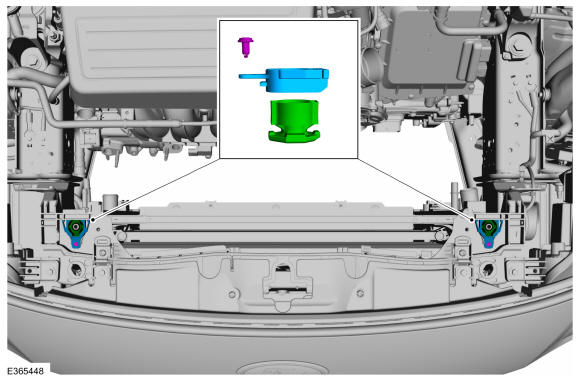

Remove the clips, the radiator support upper insulator frames and the isolators.
-
NOTE: Take extra care not to damage the component.NOTE: All components are not shown for clarity.

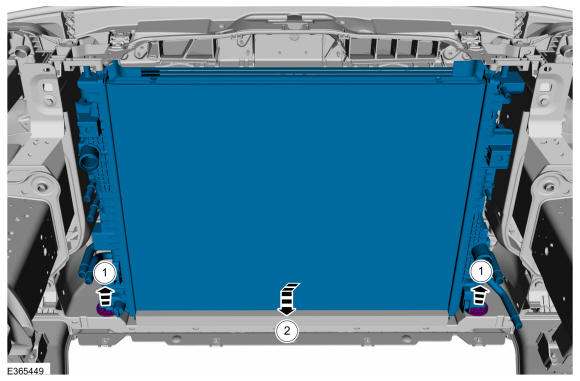

- Lift the radiator out of the insulators.
- Remove the radiator, A/C condenser, transmission oil cooler and auxiliary radiators assembly from below the vehicle.
-

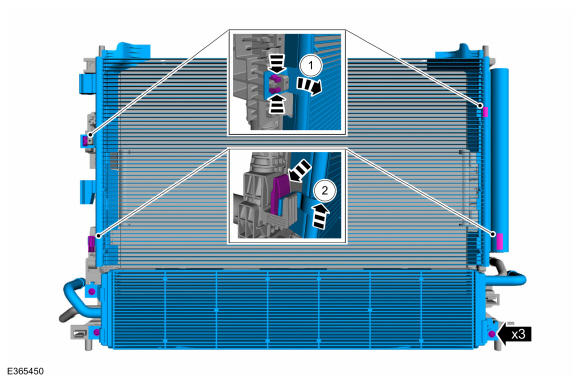

- Release the tabs and remove the A/C condenser.
- Remove the bolts and the high voltage battery radiator.
Torque: 71 lb.in (8 Nm)

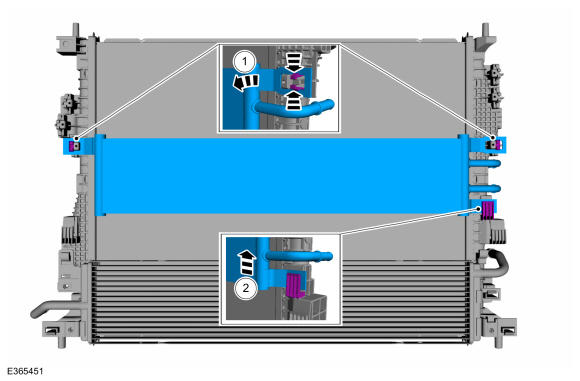

- Release the tabs and remove the transmission oil cooler.

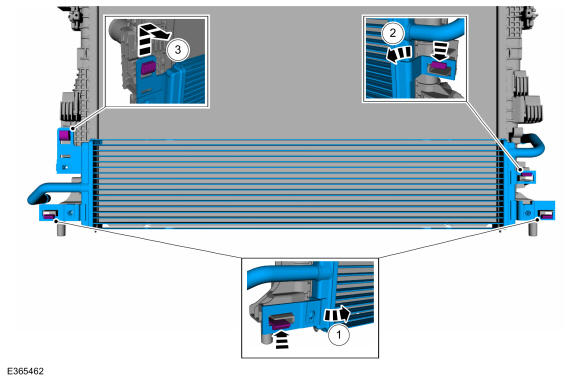

- Release the tabs and remove the electric motor electronics radiator.
