Cooling Fan Motor and Shroud: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview

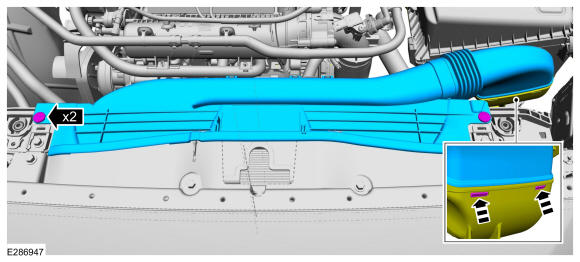

- Remove the retainers, release the tabs and remove the air cleaner intake duct pipe.

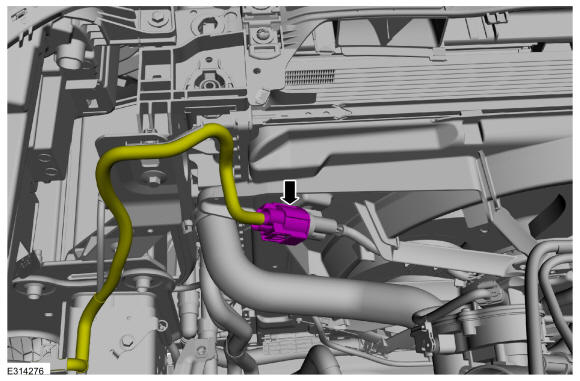

- Disconnect the cooling fan electrical connector.

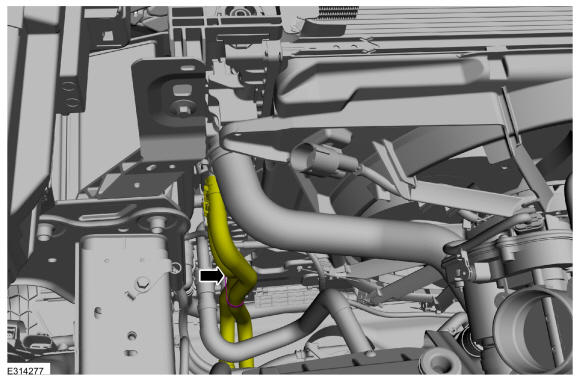

- Detach the transmission oil cooler hoses retainer.

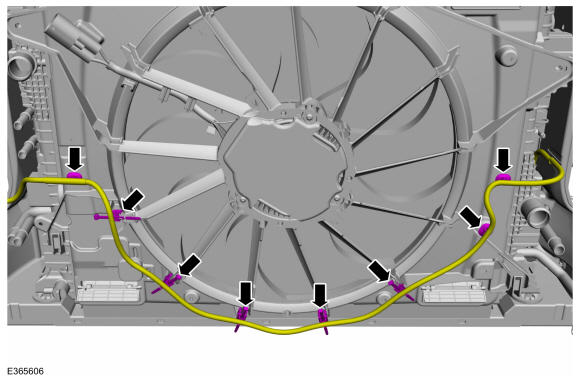

- Detach the wiring harness retainers.
-
NOTE: All components are not shown for clarity.

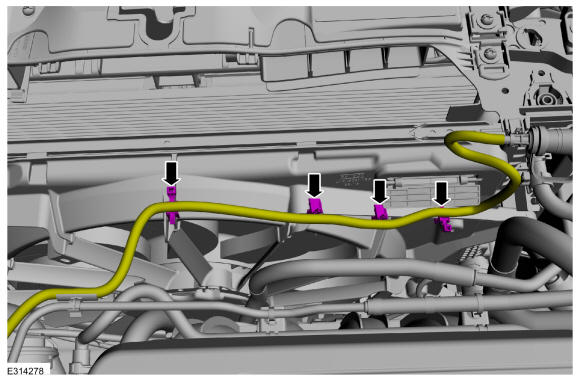

Detach the wiring harness retainers.

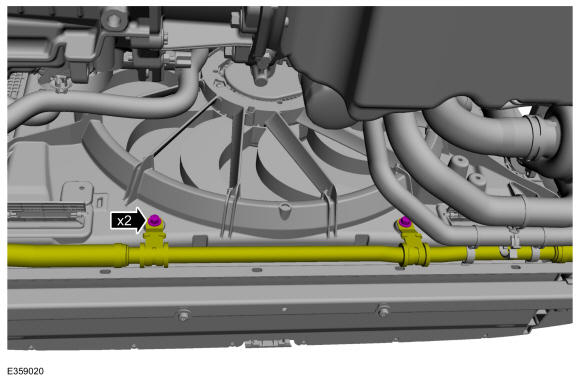

- Remove the retainers and detach the auxiliary radiator coolant hose.
Torque: 36 lb.in (4.1 Nm)

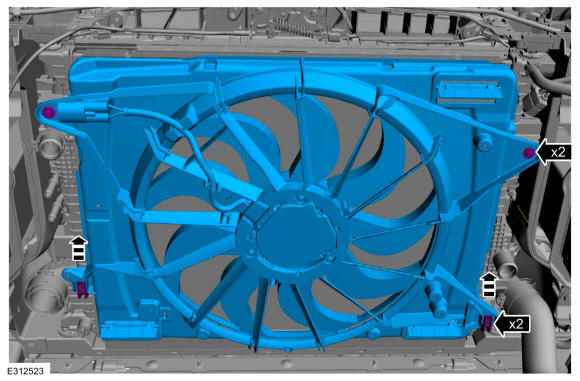

- Remove the bolts, release the tabs and remove the cooling fan motor and shroud.
Torque: 71 lb.in (8 Nm)
