Cooling Fan

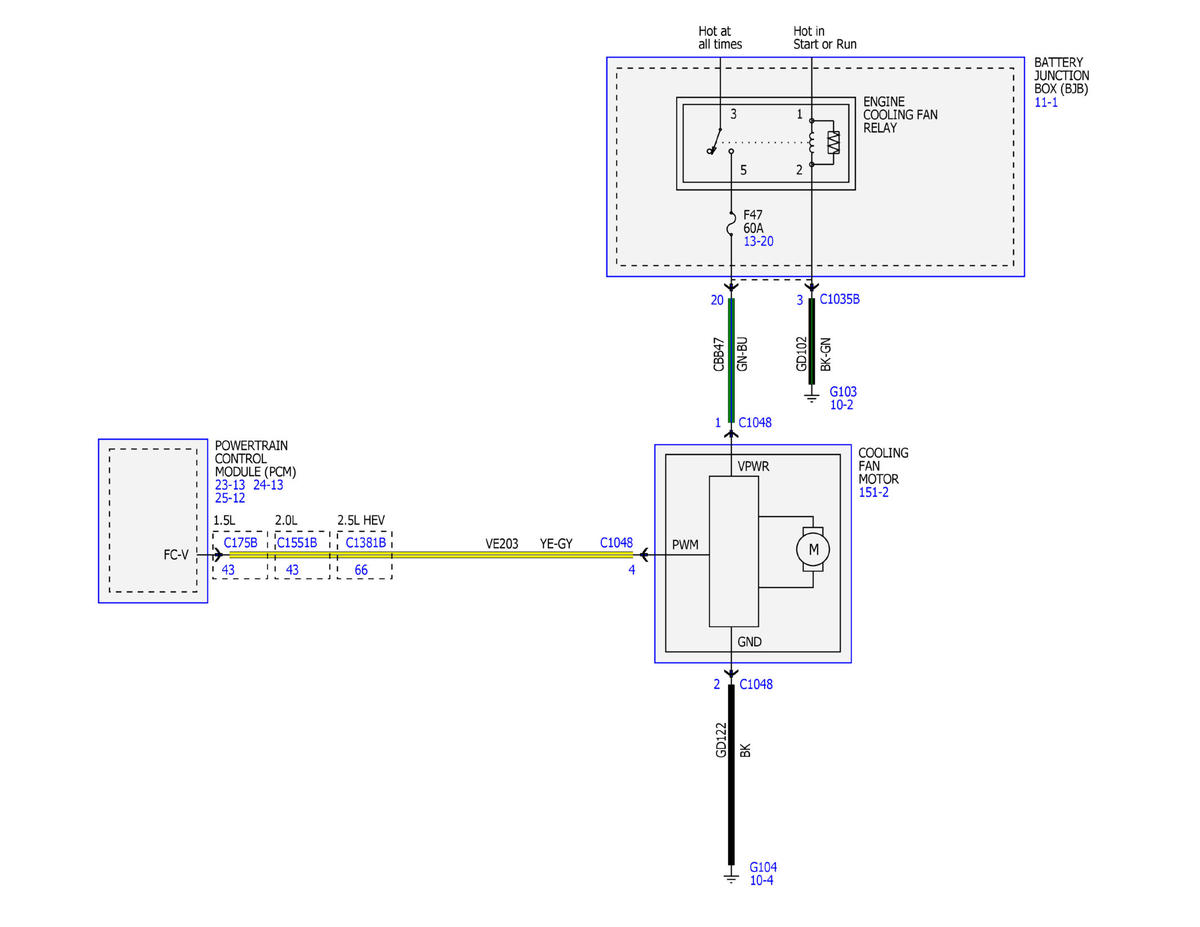

Fig 1: Cooling Fan Wiring Diagram (1 Of 3)
GFDWR137169Courtesy of FORD MOTOR COMPANY

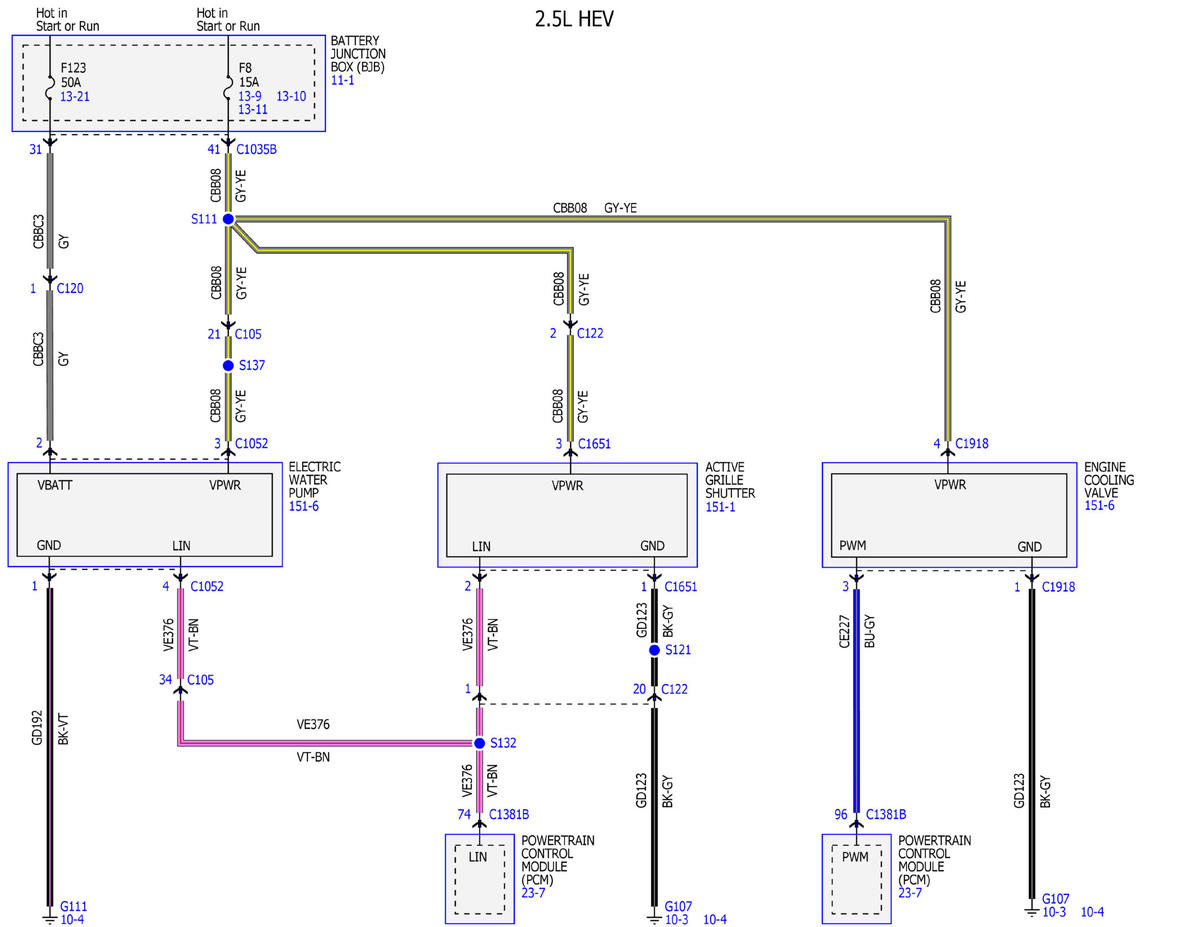

Fig 2: Cooling Fan Wiring Diagram (2 Of 3)
GFDWR137170Courtesy of FORD MOTOR COMPANY

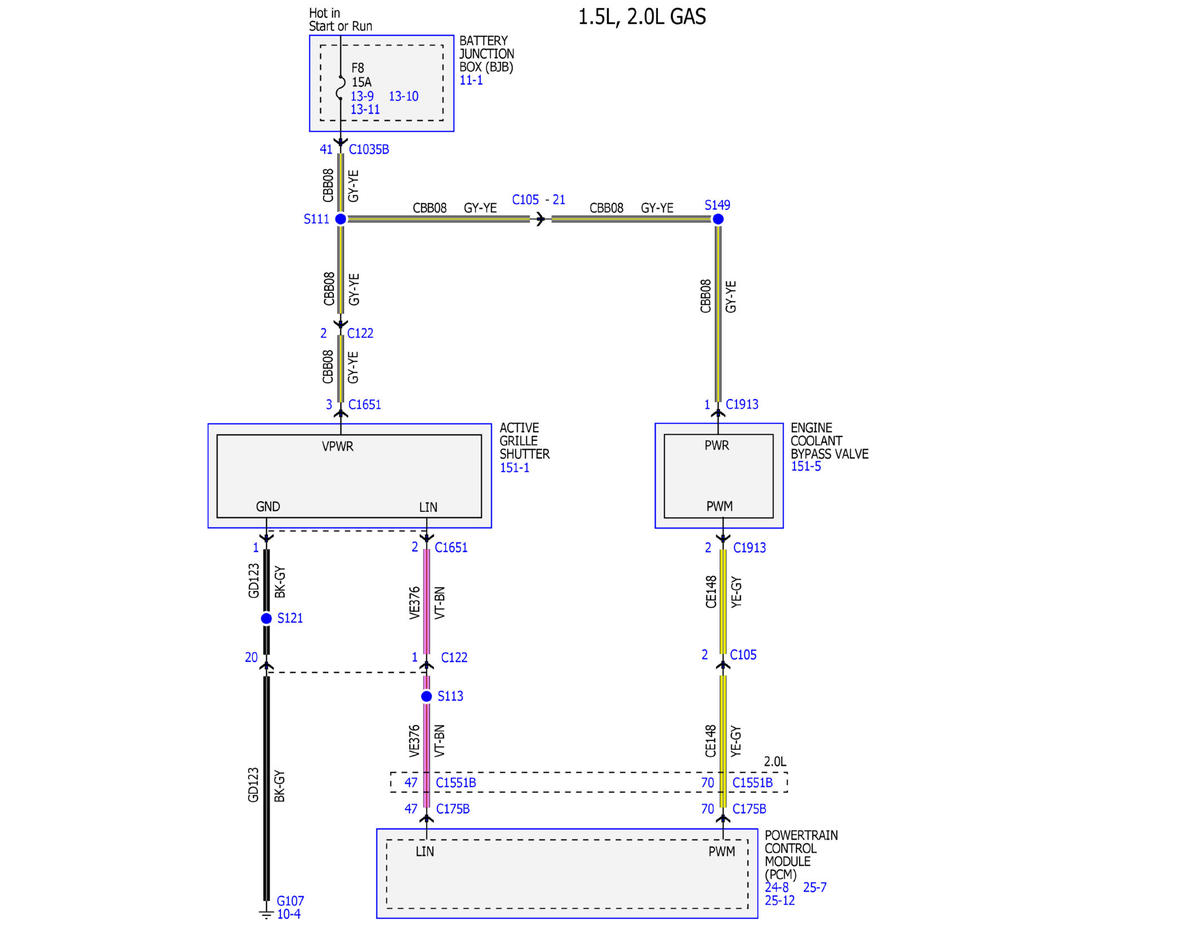

Fig 3: Cooling Fan Wiring Diagram (3 Of 3)
GFDWR137171Courtesy of FORD MOTOR COMPANY
