Shift Interlock
Shift Interlock

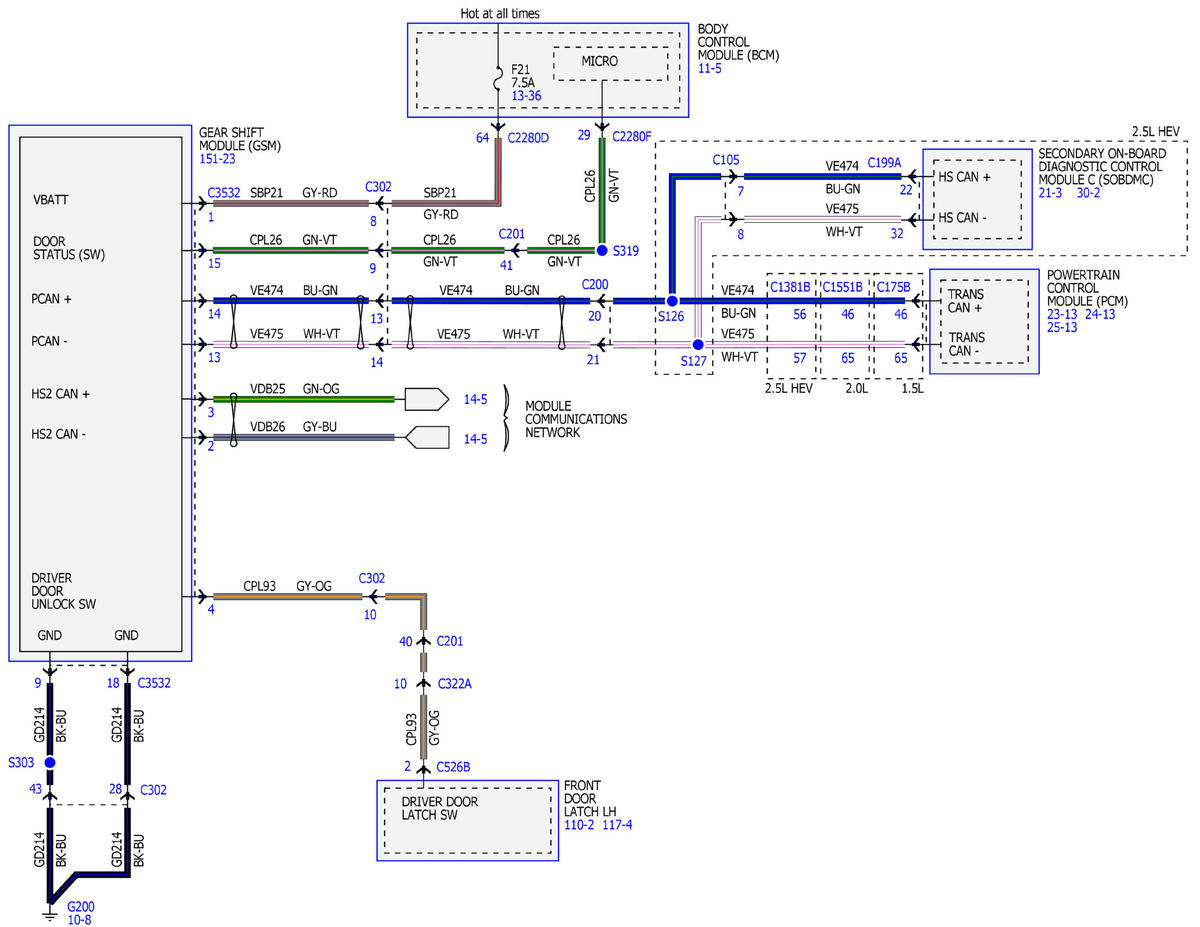

Fig 1: Shift Interlock Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
