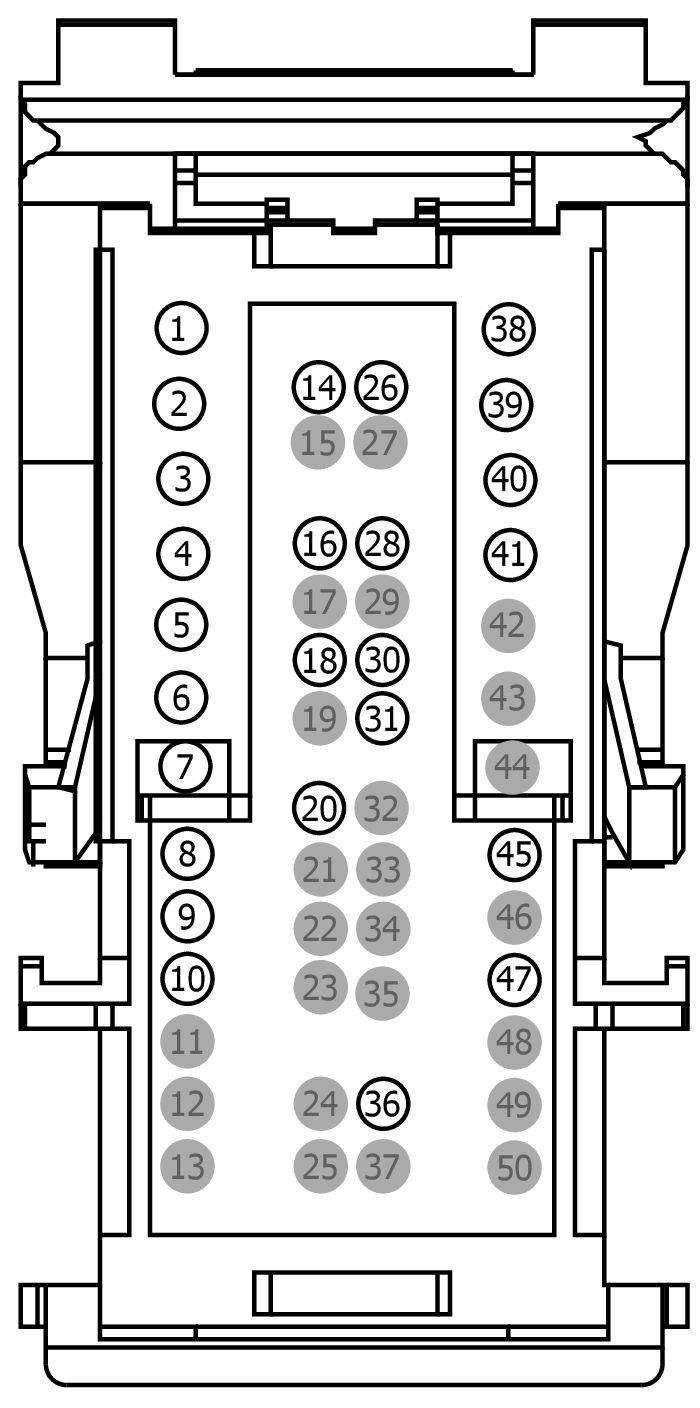

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280E	BODY CONTROL MODULE (BCM)	BK	14290	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-ABB	DU2Z-14474-DA	1.50
97BG-14474-AAB	DU2Z-14474-DA	1.50
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF04 (BN-BU)	18	CTRL MOD. - BEAM LOW LEFT	halogen	97BG-14474-ABB
1	CLF04 (BN-BU)	16	CTRL MOD. - BEAM LOW LEFT	LED	97BG-14474-ABB
2	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT	97BG-14474-AAB
3	CLS21 (BU-GN)	22	CTRL MOD. - TURN LAMP LEFT FRONT	97BG-14474-AAB
4	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	97BG-14474-AAB
5	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	97BG-14474-AAB
6	CLF29 (BN)	22	CTRL MOD. - FOG LAMPS FRONT (LEFT)	97BG-14474-AAB
7	CLF34 (YE-OG)	22	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	97BG-14474-AAB
8	CLF61 (GY-BU)	22	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	halogen	8U5T-14474-BB
8	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	LED	8U5T-14474-BB
9	CLF62 (VT-WH)	22	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT	8U5T-14474-BB
10	CE436 (VT-OG)	22	CTRL MOD. - WAKE UP PCM	8U5T-14474-BB
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CLS06 (GN-OG)	22	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	8U5T-14474-BB
15	*	*	Not Used	N/A
16	VDN13 (BN)	22	CTRL MOD. - LIN BUS # BCM 5	8U5T-14474-BB
17	*	*	Not Used	N/A
18	CRH04 (VT-GN)	22	CTRL MOD. - RELAY HORN	8U5T-14474-BB
19	*	*	Not Used	N/A
20	CDC64 (WH-BU)	22	RELAY - RUN ACCESSORY	8U5T-14474-BB
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	CPL25 (BU-OG)	22	SWITCH - HOOD # AJAR	8U5T-14474-BB
27	*	*	Not Used	N/A
28	CLS07 (BN-YE)	22	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	8U5T-14474-BB
29	*	*	Not Used	N/A
30	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT # SIGNAL OUT	8U5T-14474-BB
31	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT	8U5T-14474-BB
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	*	*	Not Used	N/A
36	CDC55 (GY)	22	RELAY - RUN START	8U5T-14474-BB
37	*	*	Not Used	N/A
38	CLF03 (VT-OG)	20	CTRL MOD. - BEAM HIGH RIGHT	LED	97BG-14474-AAB
38	CLF03 (VT-OG)	18	CTRL MOD. - BEAM HIGH RIGHT	halogen	97BG-14474-AAB
39	CLF05 (BU-GN)	20	CTRL MOD. - BEAM LOW RIGHT	LED	97BG-14474-AAB
39	CLF05 (BU-GN)	18	CTRL MOD. - BEAM LOW RIGHT	halogen	97BG-14474-AAB
40	CLF02 (GY-BN)	18	CTRL MOD. - BEAM HIGH LEFT	halogen	97BG-14474-ABB
40	CLF02 (GY-BN)	16	CTRL MOD. - BEAM HIGH LEFT	LED	97BG-14474-ABB
41	CDC35 (BU-WH)	22	SWITCH - IGNITION # START	97BG-14474-AAB
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	*	*	Not Used	N/A
45	VDN04 (VT-WH)	20	CTRL MOD. - LIN BUS # BCM 4	1.5L/2.0L	8U5T-14474-BB
45	VDN04 (VT-WH)	22	CTRL MOD. - LIN BUS # BCM 4	2.5L	8U5T-14474-BB
46	*	*	Not Used	N/A
47	VDN18 (VT-GY)	22	CTRL MOD. - LIN BUS # BCM 10	8U5T-14474-BB
48	*	*	Not Used	N/A
49	*	*	Not Used	N/A
50	*	*	Not Used	N/A
