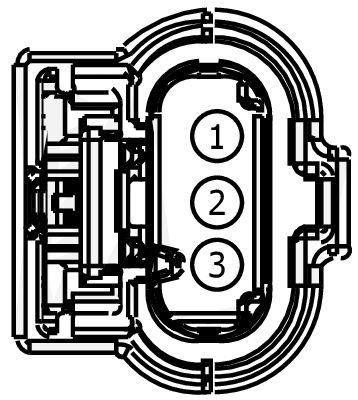

Connector End View (C1958) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1958	FUEL RAIL PRESSURE (FRP) SENSOR	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
JU5T-14474-AHA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RE238 (BU-BN)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	JU5T-14474-AHA
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	JU5T-14474-AHA
3	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	JU5T-14474-AHA

Available Pigtail Kits

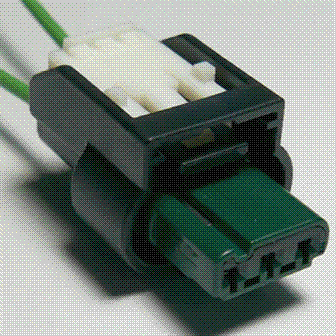

Pigtail Kit Part Number WPT-1602

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Rail Pressure

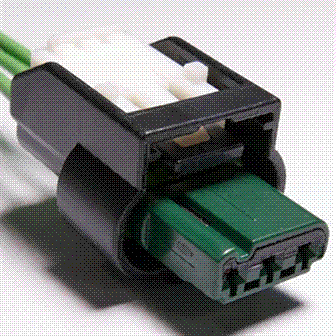

Pigtail Kit Part Number WPT-1558

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ASA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
