Turbocharger Oil Supply Tube: Installation
-
NOTE: A new turbocharger oil supply tube filter must be installed. Failure to install a new filter will cause turbocharger failure.

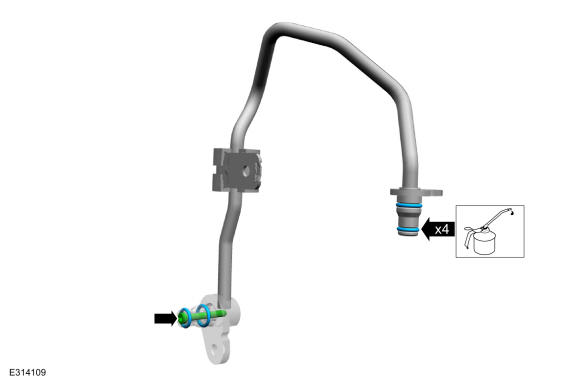

Install the new O-rings if not already installed. Lubricate the O-ring seals with clean engine oil. Refer to: Specifications
-
NOTE: The oil supply tube must be fully seated prior to fastener tightening.
- Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger and engine O-ring bores. Inspect the area for deep scratches and gouges. Install new components if needed.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
- Install and fully seat the turbocharger oil supply tube, install and finger tighten the bolts at this stage.
Torque:1 : 89 lb.in (10 Nm)2 : 89 lb.in (10 Nm)3 : 22 lb.ft (30 Nm)
- Carefully use a nylon brush to remove the old O-ring residue, use brake cleaner to rinse the O-ring residue out of the turbocharger and engine O-ring bores. Inspect the area for deep scratches and gouges. Install new components if needed.
- Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe
- Install the cowl panel grille. Refer to: Cowl Panel Grille
- Check and top off the engine oil as needed. Refer to: Specifications
- Start and check for leaks.
