Brake Master Cylinder - Vehicles With: Vacuum Brake Booster: Removal
NOTE:
If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery. Refer to: Battery

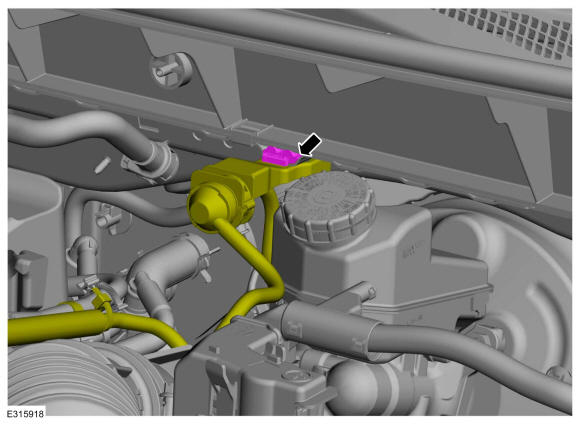

- Detach the brake booster tube from dash panel and position aside.
-
NOTE: Make sure that all openings are sealed.

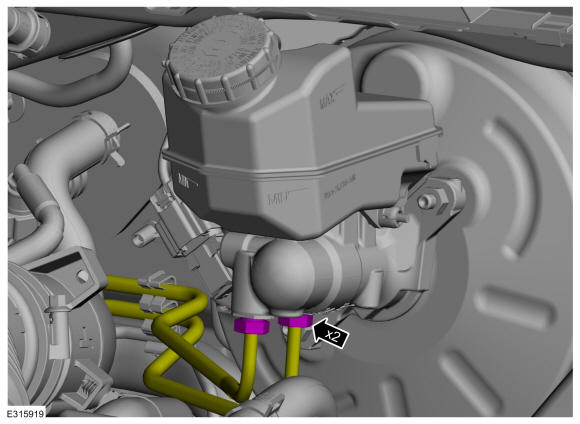

If equipped. Disconnect the brake tube fittings.
Torque: 159 lb.in (18 Nm)
-
NOTE: Make sure that all openings are sealed.

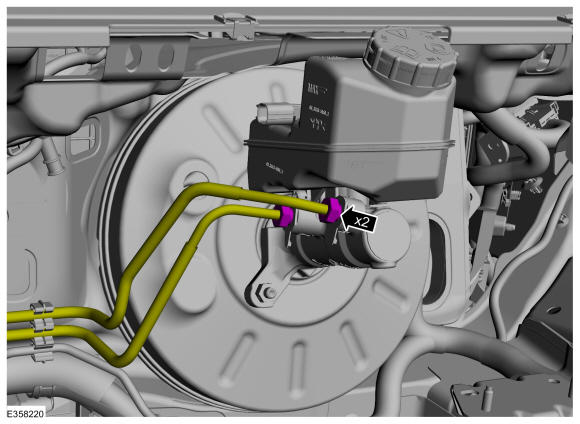

If equipped. Disconnect the brake tube fittings.
Torque: 159 lb.in (18 Nm)

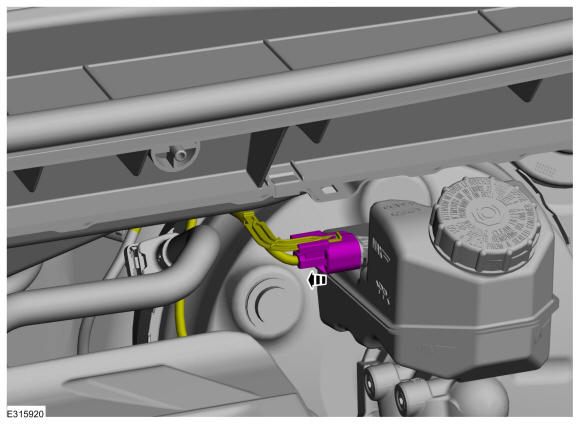

- Disconnect the brake fluid level sensor electrical connector.

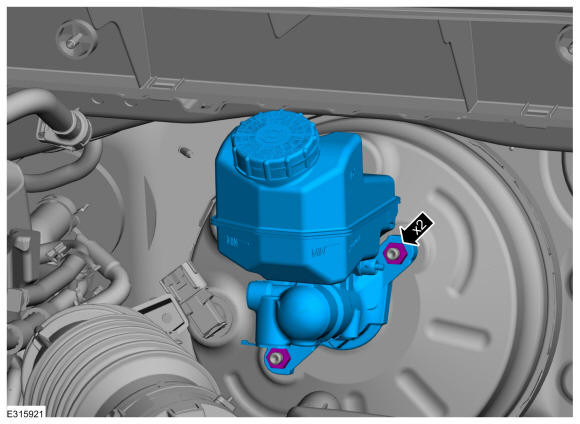

- Remove the nuts and the brake master cylinder.
Torque: 18 lb.ft (25 Nm)
