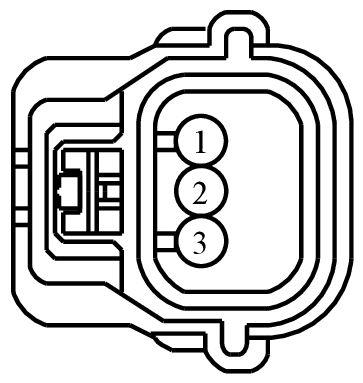

Connector End View (C1607) - FRONT ACTIVE PARK ASSIST SENSOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1607	FRONT ACTIVE PARK ASSIST SENSOR LH	15K867			part# N/A	See Below

Pin: 2 - VMP20(GY-OG)-SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE, Gauge 22

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT +	9U5T-14474-LA
2	VMP20 (GY-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE	9U5T-14474-LA
3	RMP06 (YE-OG)	22	CTRL MOD. - PARKING AID # SENSORS FRONT -	9U5T-14474-LA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1394

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFB

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Front Park Aid (FPA)

Pigtail Kit Part Number WPT-1095

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Sensor - Front Park Aid (FPA)
