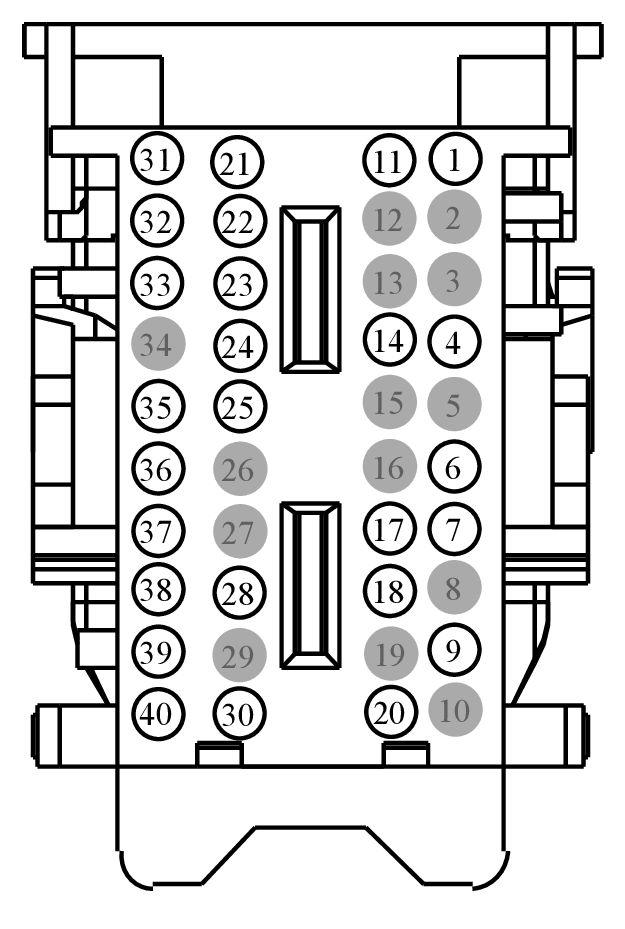

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280C	BODY CONTROL MODULE (BCM)	12A581			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMP21 (WH-BN)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	9U5T-14474-DB
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CDC56 (WH)	22	CTRL MOD. - BATTERY MONITORING SYSTEM LIN BUS	9U5T-14474-DB
5	*	*	Not Used	N/A
6	CLS56 (YE-GN)	20	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT	9U5T-14474-DB
7	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT +	9U5T-14474-DB
8	*	*	Not Used	N/A
9	CDC45 (VT-BN)	20	CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK +	9U5T-14474-DB
10	*	*	Not Used	N/A
11	VMP20 (GY-OG)	22	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE	9U5T-14474-DB
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR	9U5T-14474-DB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	CLS58 (BU-WH)	20	LAMP - TURN FRONT RIGHT # SIGNAL OUT	9U5T-14474-DB
18	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	9U5T-14474-DB
19	*	*	Not Used	N/A
20	CRH02 (BU-WH)	22	SWITCH - HORN	9U5T-14474-DB
21	VMP13 (BU-OG)	22	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)	9U5T-14474-DB
22	VMP12 (BU-GY)	22	SENSOR - PARKING AID # FRONT # (RIGHT INNER)	9U5T-14474-DB
23	CDC71 (YE-GY)	22	CTRL MOD. - POWER OUTLET ENABLE OR SET	9U5T-14474-DB
24	CDC40 (VT-GY)	22	RELAY - DELAY ACCESSORY	9U5T-14474-DB
25	CDC55 (BN-VT)	20	RELAY - RUN START	9U5T-14474-DB
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	9U5T-14474-DB
29	*	*	Not Used	N/A
30	CLS06 (BN-BU)	18	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	9U5T-14474-EB
31	VMP11 (BU-GN)	22	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	9U5T-14474-DB
32	VMP10 (WH-BU)	22	SENSOR - PARKING AID # FRONT # (LEFT INNER)	9U5T-14474-DB
33	CDC72 (BN-WH)	22	CTRL MOD. - POWER OUTLET DISABLE OR RESET	9U5T-14474-DB
34	*	*	Not Used	N/A
35	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -	9U5T-14474-DB
36	CLF62 (VT-WH)	18	CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT	9U5T-14474-EB
37	CLS07 (BU-WH)	18	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	9U5T-14474-EB
38	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	9U5T-14474-DB
39	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	9U5T-14474-DB
40	CLF61 (GY-BU)	18	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	9U5T-14474-EB
