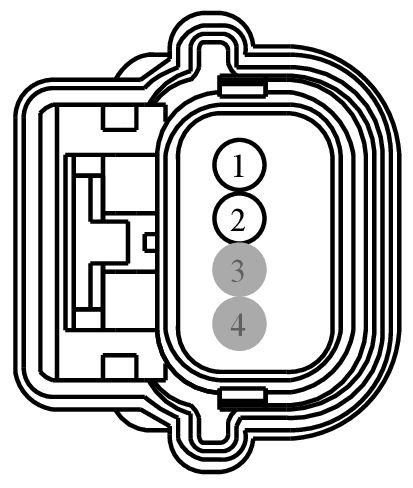

Connector End View (C4321) - PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4321	PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA	17N400			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-EAB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK06 (GY-VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) +	DU5T-14474-EAB
2	RPK06 (BU-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) -	DU5T-14474-EAB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

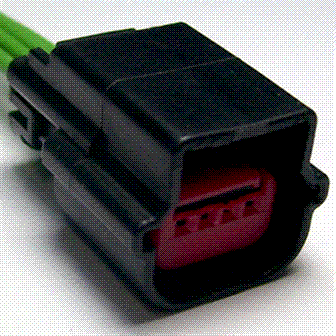

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
