Engine Undershield - 2.0L EcoBoost (184kW/250PS) - MI4

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

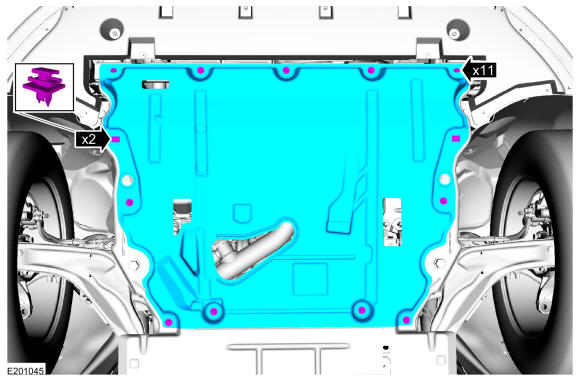

1. NOTE: FWD shown, AWD similar.

   Remove the bolts, grommets and the engine undershield.

   Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY
