Wastegate Vacuum Sensor: Installation

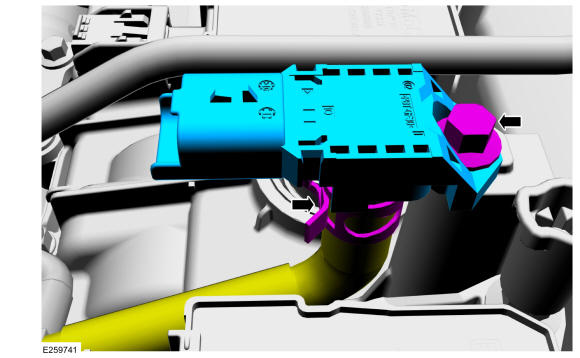

- Connect the wastegate vacuum sensor hose. Install the wastegate vacuum sensor, then install and tighten the wastegate vacuum sensor retainer. Use the General Equipment: Hose Clamp Remover/Installer
Torque
: 62 lb.in (7 Nm)

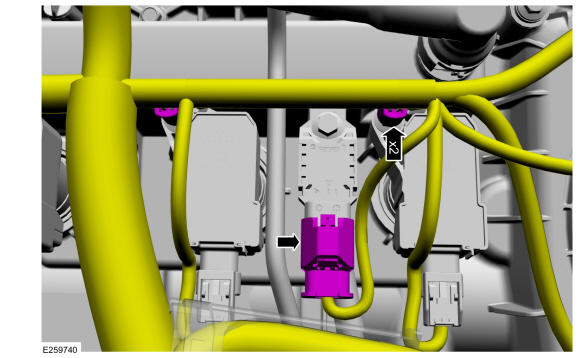

- Attach the wire harness retainers. Connect the wastegate vacuum sensor electrical connector.

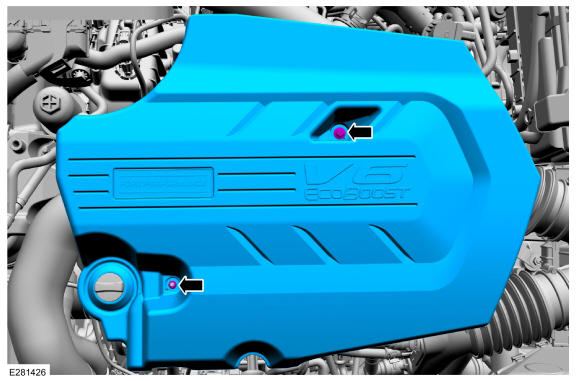

- If equipped, install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque
: Tighten the nut to: : 42 lb.in (4.8 Nm) Tighten the bolt to: : 97 lb.in (11 Nm)
