Wastegate Control Valve Solenoid: Installation

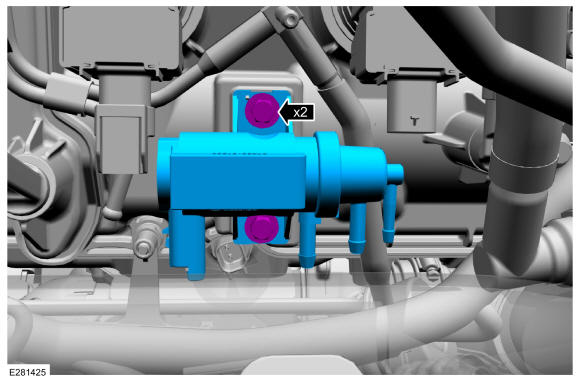

- Install the wastegate control valve solenoid, then install and tighten the wastegate control valve solenoid retainers.
Torque
: 62 lb.in (7 Nm)

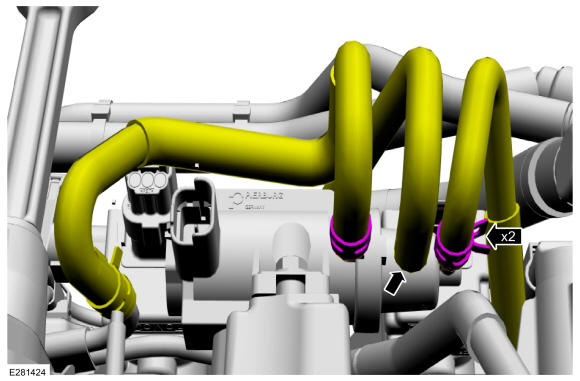

- Connect the wastegate control valve solenoid hoses. Use the General Equipment: Hose Clamp Remover/Installer

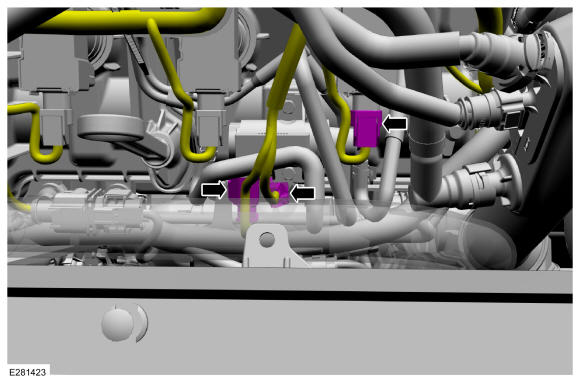

- Connect the wastegate control valve solenoid, the ignition coil and the cylinder head temperature sensor electrical connectors.

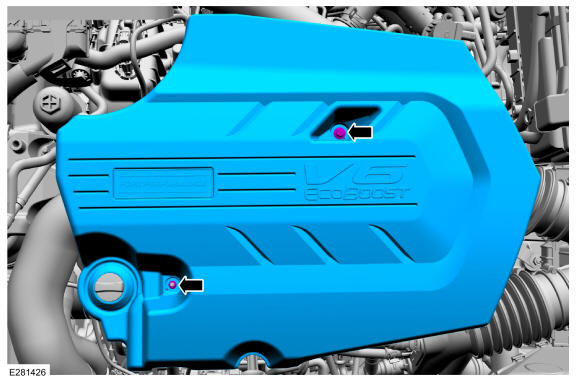

- If equipped, install the engine appearance cover, then install and tighten the engine appearance cover retainers.
Torque
: Tighten the nut to: : 42 lb.in (4.8 Nm) Tighten the bolt to: : 97 lb.in (11 Nm)
