Turbocharger Oil Supply Tube RH: Installation

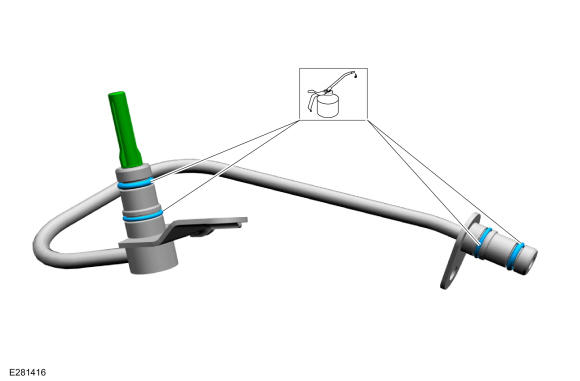

Install the new turbocharger oil supply tube O-ring seals and the new turbocharger oil supply tube oil filter. Lubricate the O-ring seals with clean engine oil. Refer to: SPECIFICATIONS

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

NOTE: When installing the turbocharger oil supply tube into the engine block, use care not to damage the new turbocharger oil supply tube oil filter.
- Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to turbocharger O-ring bore and the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. Install new components as needed.

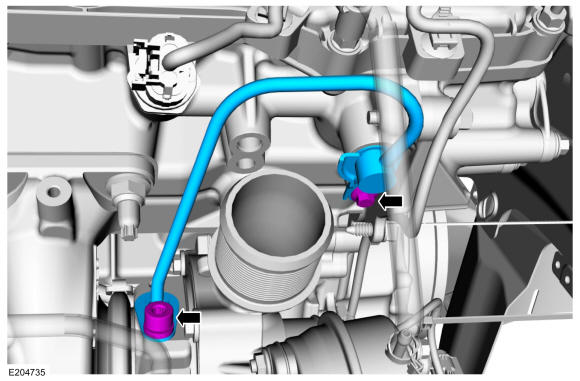

1. Install the turbocharger oil supply tube, then install and tighten the turbocharger oil supply tube bolts.
  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

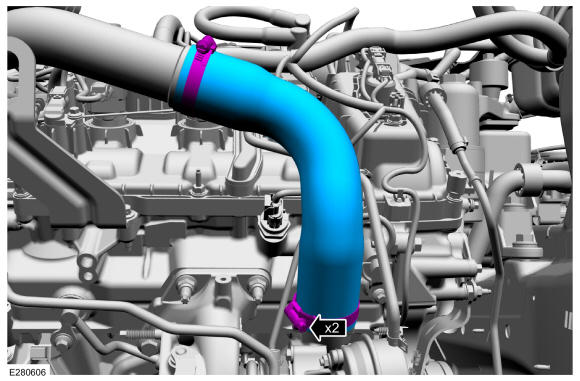

Install the right lower charge air cooler intake pipe, then tighten the clamps.
Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Install the upper and lower air cleaner outlet pipe RH. Refer to: Air Cleaner Outlet Pipe RH
Install the right front wheel and tire. Refer to: Wheel and Tire
Check and top off the engine oil level as needed. Refer to: SPECIFICATIONS
