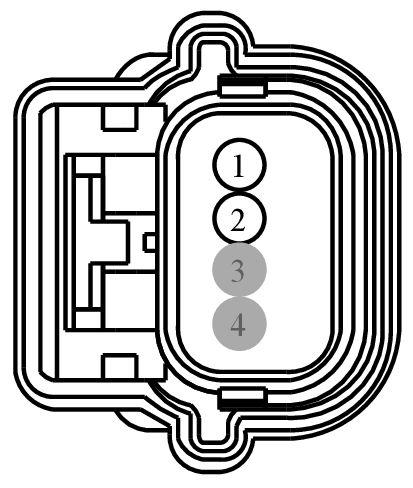

Connector End View (C3513) - PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3513	PASSIVE ANTI-THEFT SYSTEM (PATS) CENTER ANTENNA	14B079			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK05 (BN-GN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) +	8U5T-14474-BB
2	RPK05 (YE-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) -	8U5T-14474-BB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
