Wastegate Control Actuator: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .
Remove the right front tire. Refer to: Wheel and Tire
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers, then remove the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers, then remove the shield.

Courtesy of FORD MOTOR COMPANY

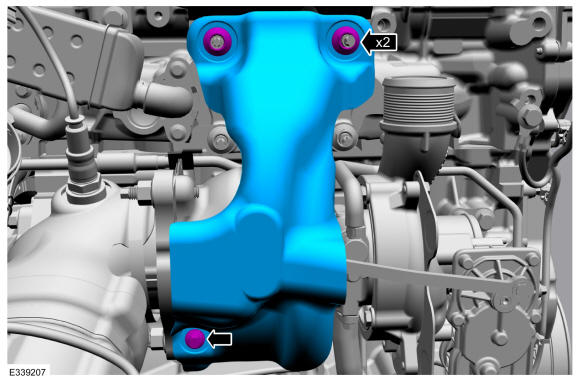

Remove the nuts and bolt, then remove the heat shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the wastegate control actuator electrical connector.

Courtesy of FORD MOTOR COMPANY

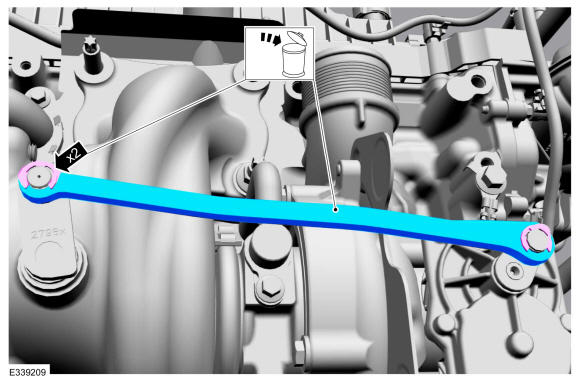

Remove and discard the wastegate control actuator linkage e-clips, then remove and discard the linkage.

Courtesy of FORD MOTOR COMPANY

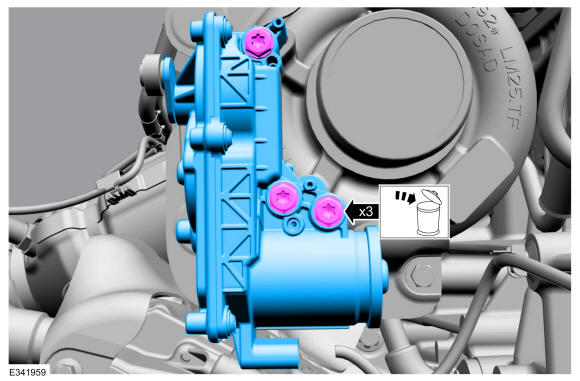

Remove and discard the wastegate control actuator bolts, then remove the wastegate control actuator.

Courtesy of FORD MOTOR COMPANY
