Parking Aid

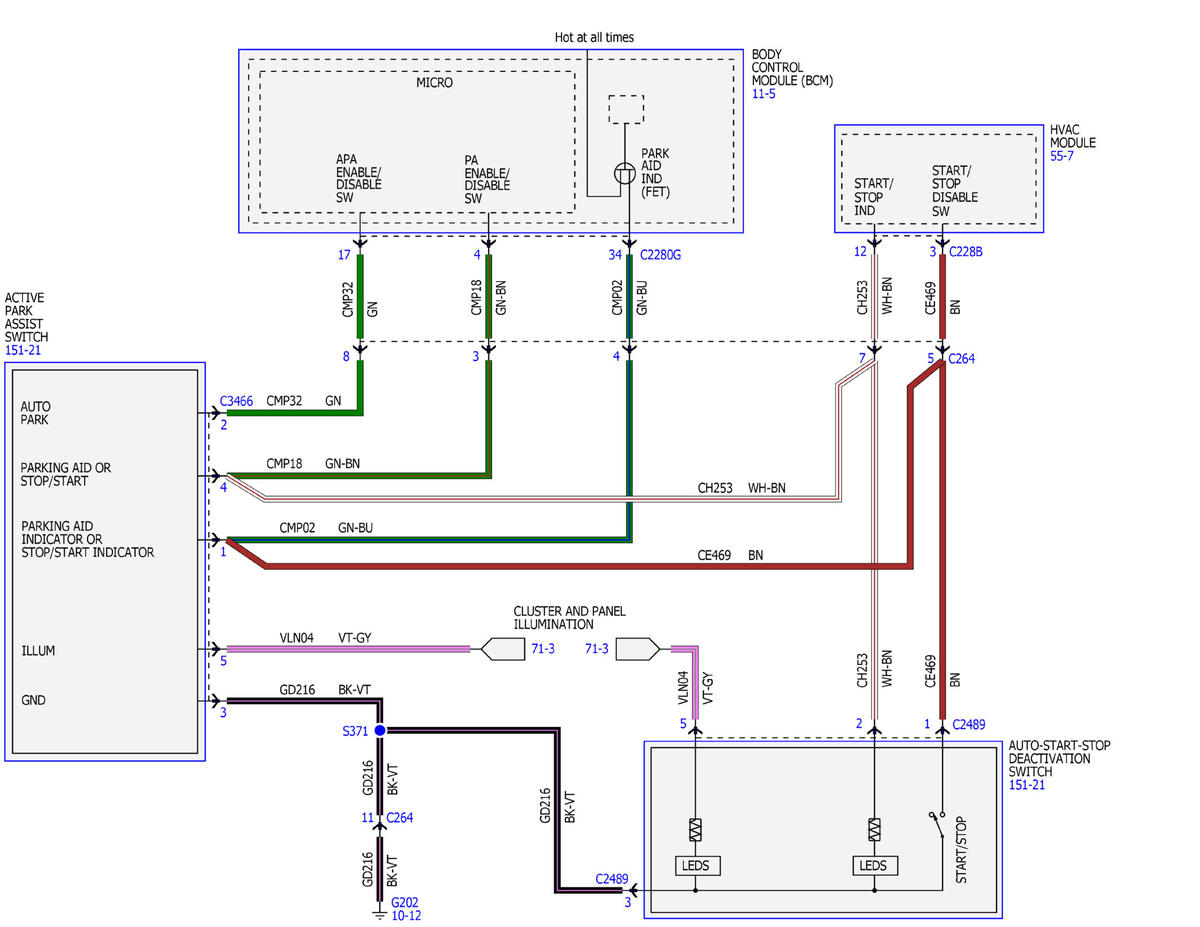

Fig 1: Parking Aid Wiring Diagram (1 Of 8)
GFDWR139197Courtesy of FORD MOTOR COMPANY

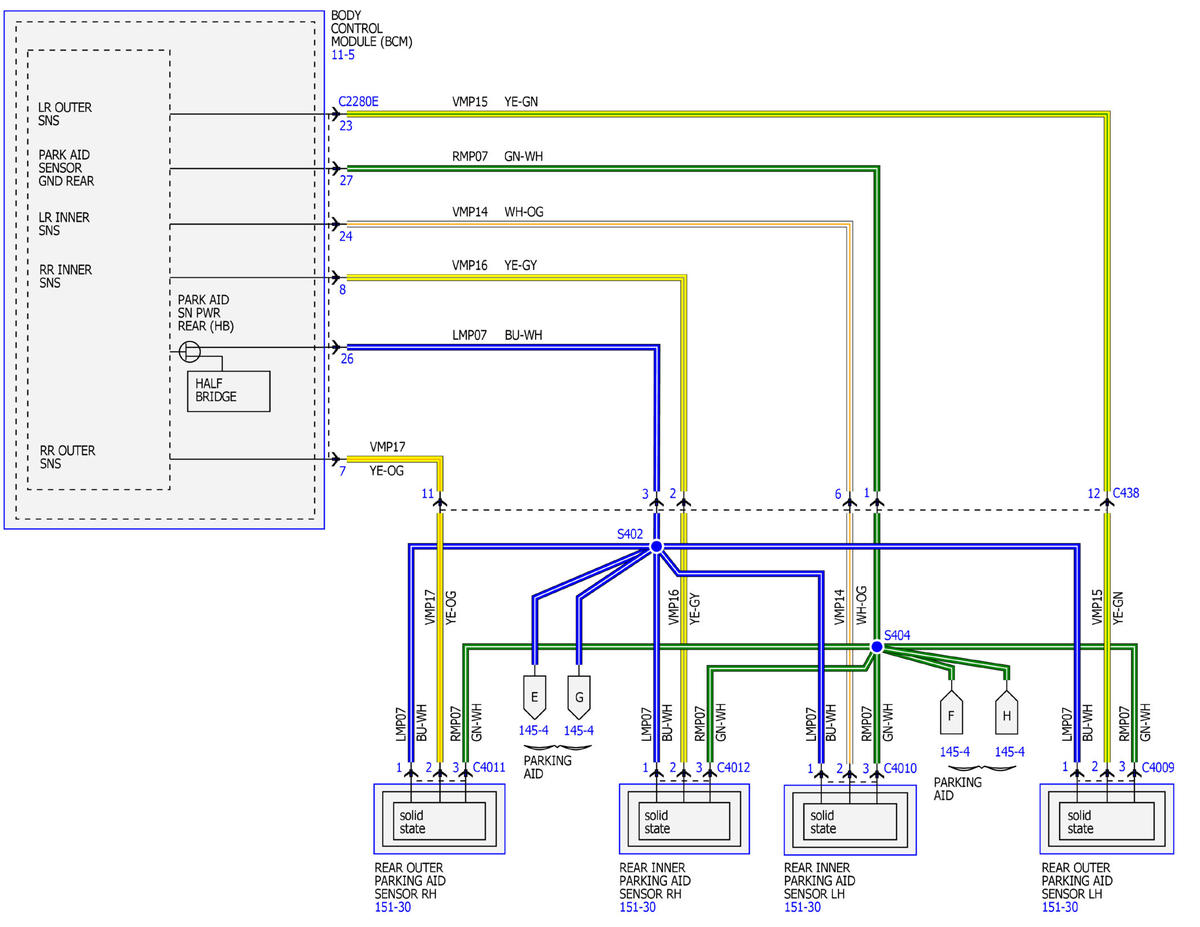

Fig 2: Parking Aid Wiring Diagram (2 Of 8)
GFDWR139198Courtesy of FORD MOTOR COMPANY

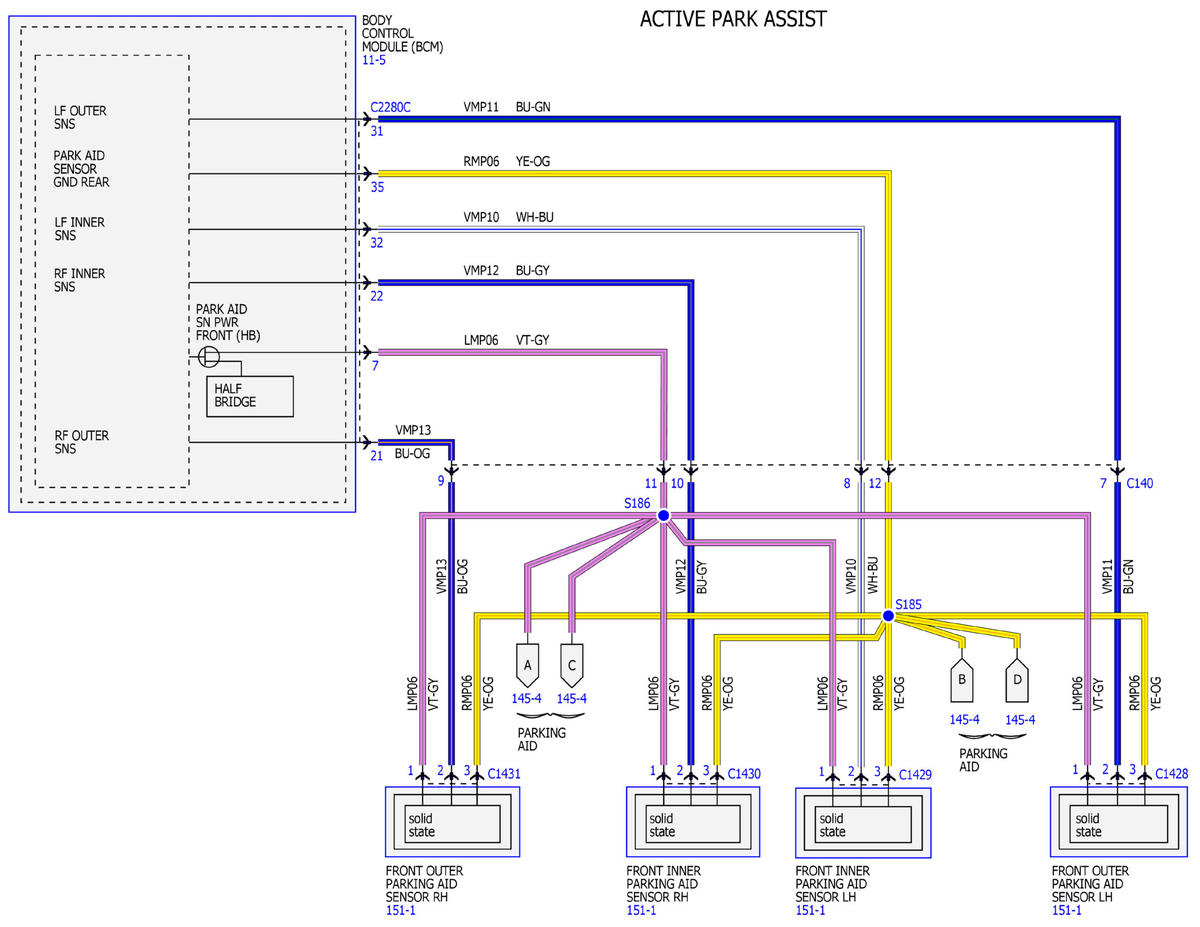

Fig 3: Parking Aid Wiring Diagram (3 Of 8)
GFDWR139199Courtesy of FORD MOTOR COMPANY

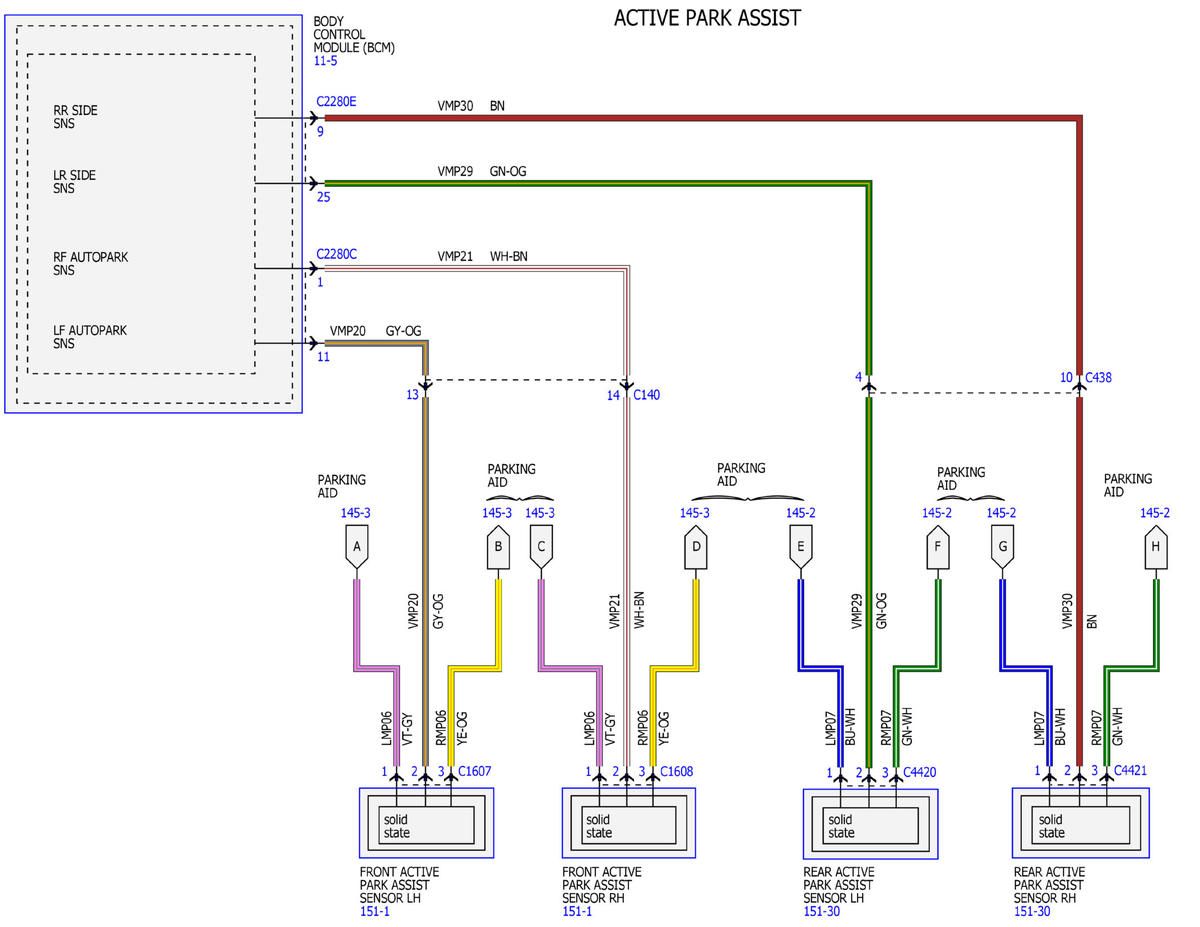

Fig 4: Parking Aid Wiring Diagram (4 Of 8)
GFDWR139200Courtesy of FORD MOTOR COMPANY

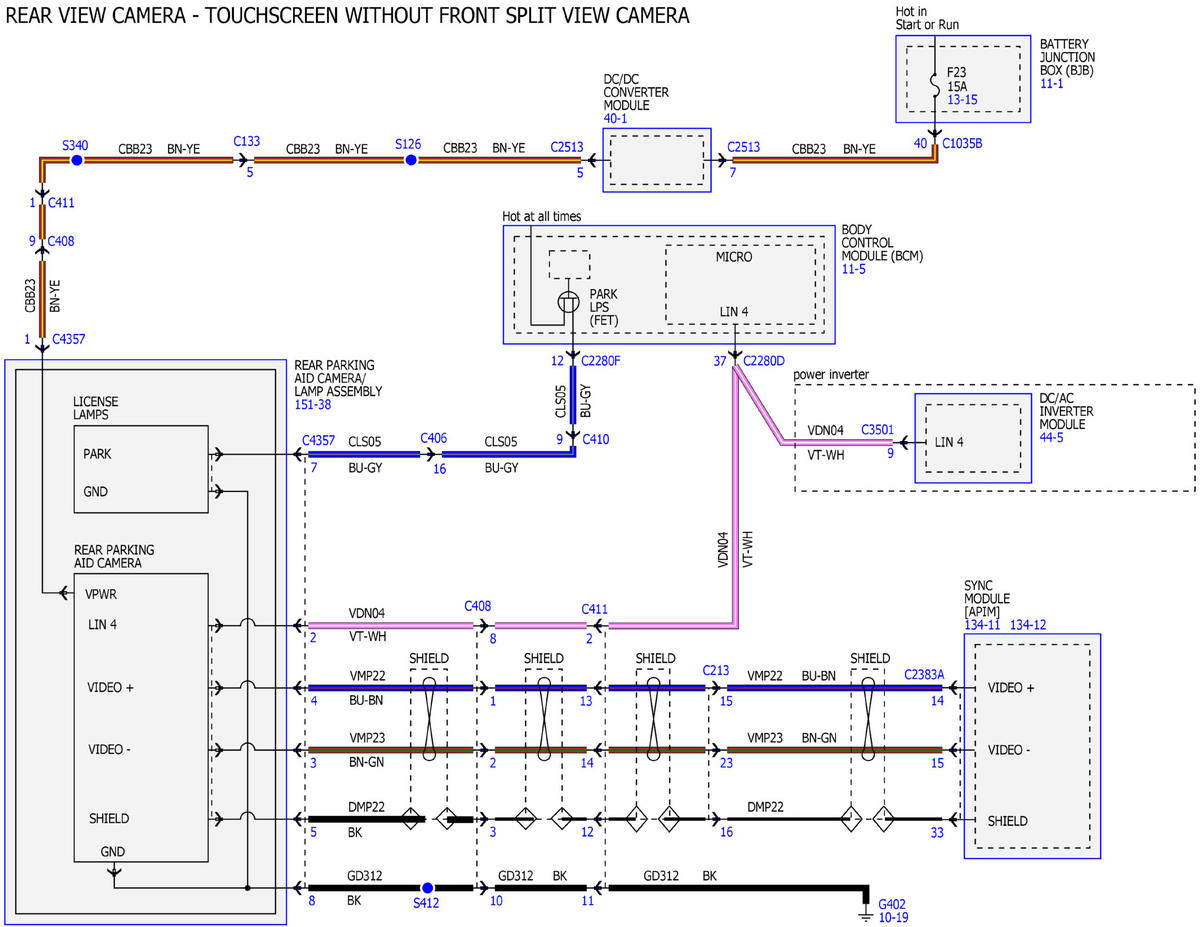

Fig 5: Parking Aid Wiring Diagram (5 Of 8)
GFDWR139201Courtesy of FORD MOTOR COMPANY

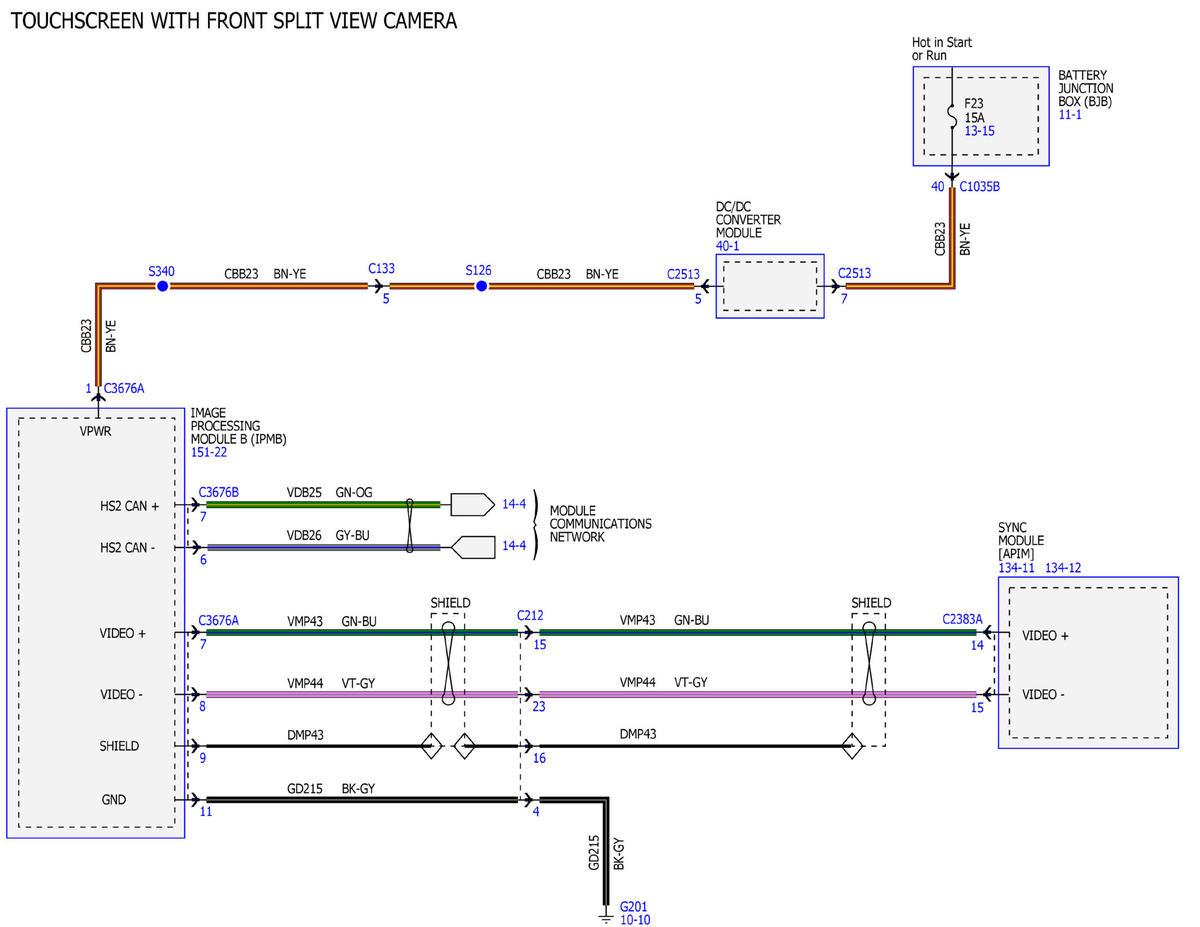

Fig 6: Parking Aid Wiring Diagram (6 Of 8)
GFDWR139202Courtesy of FORD MOTOR COMPANY

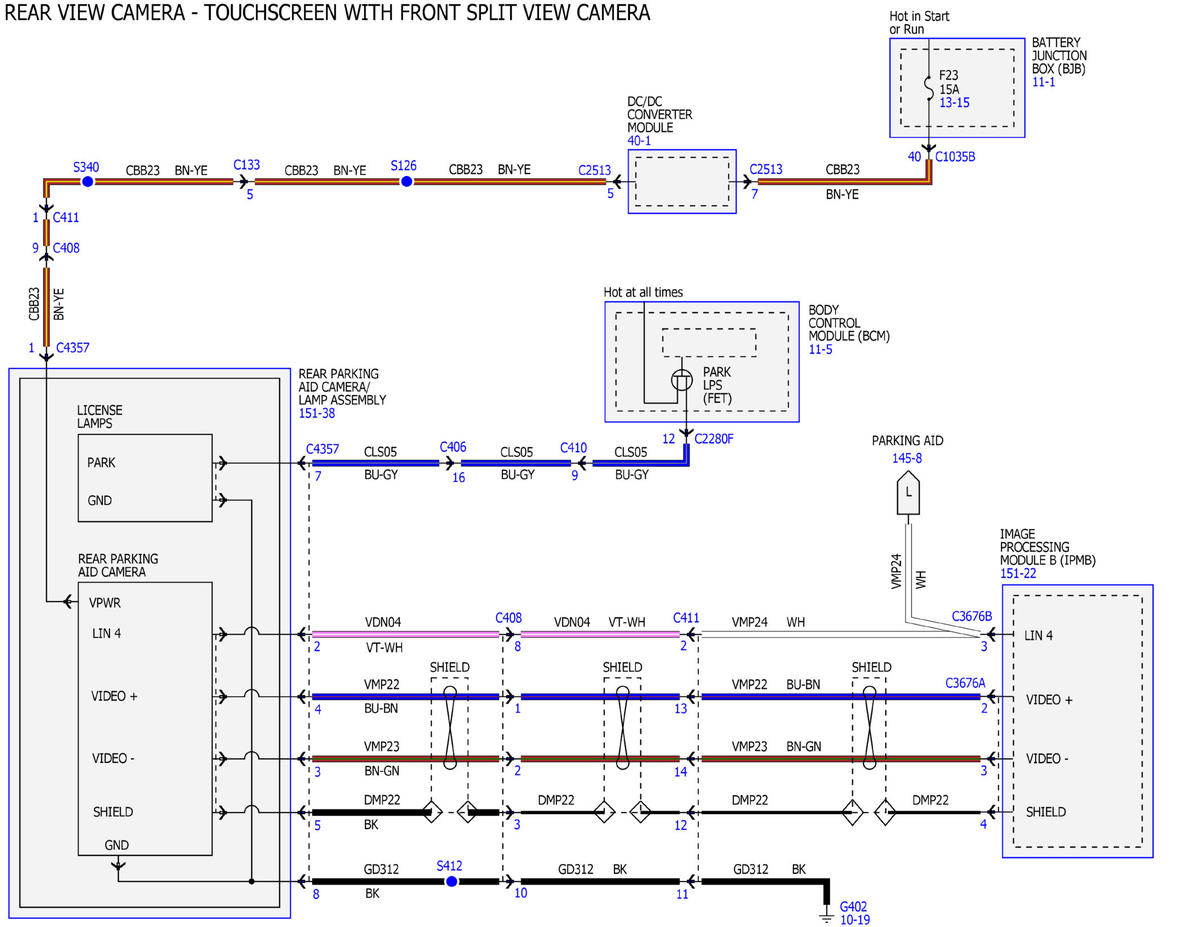

Fig 7: Parking Aid Wiring Diagram (7 Of 8)
GFDWR139203Courtesy of FORD MOTOR COMPANY

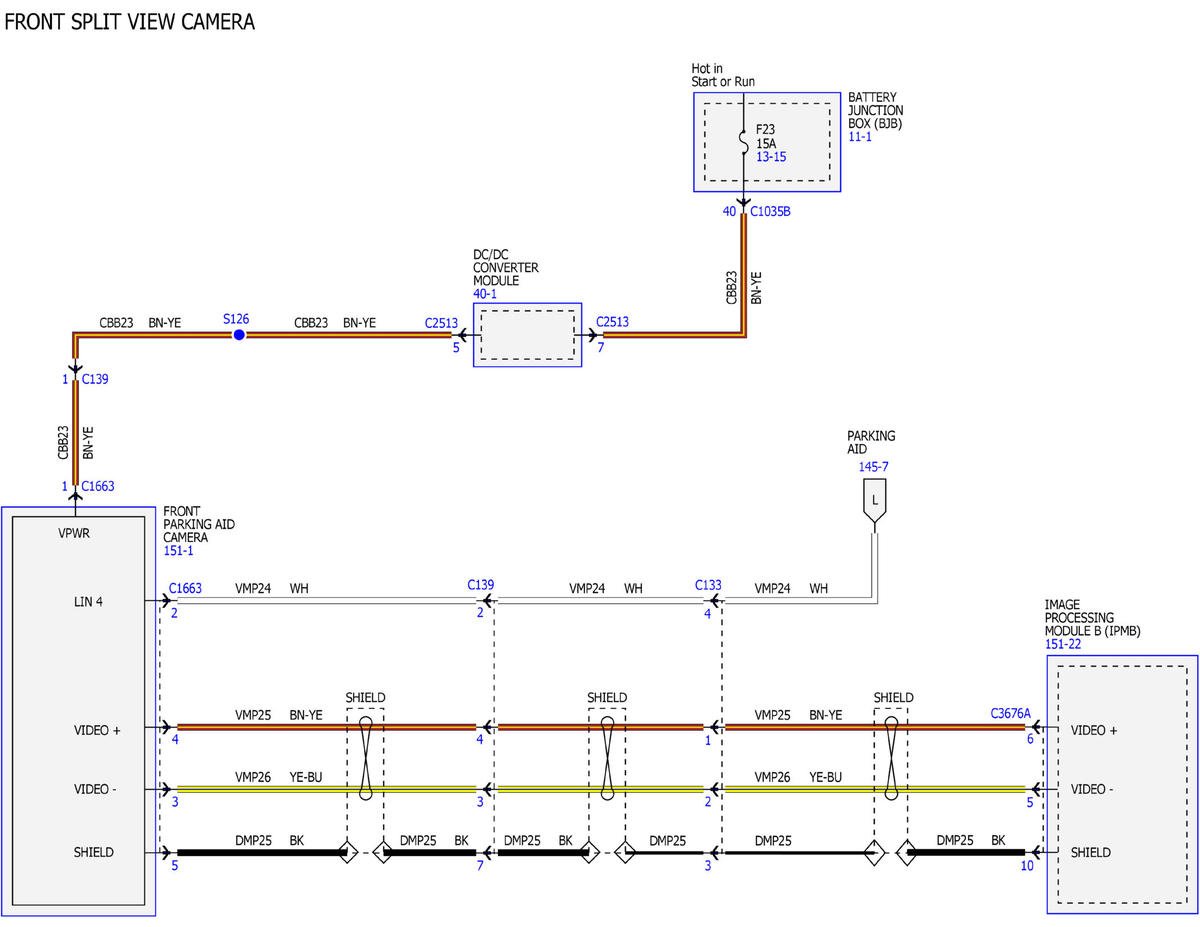

Fig 8: Parking Aid Wiring Diagram (8 Of 8)
GFDWR139204Courtesy of FORD MOTOR COMPANY
