Cluster and Panel Illumination

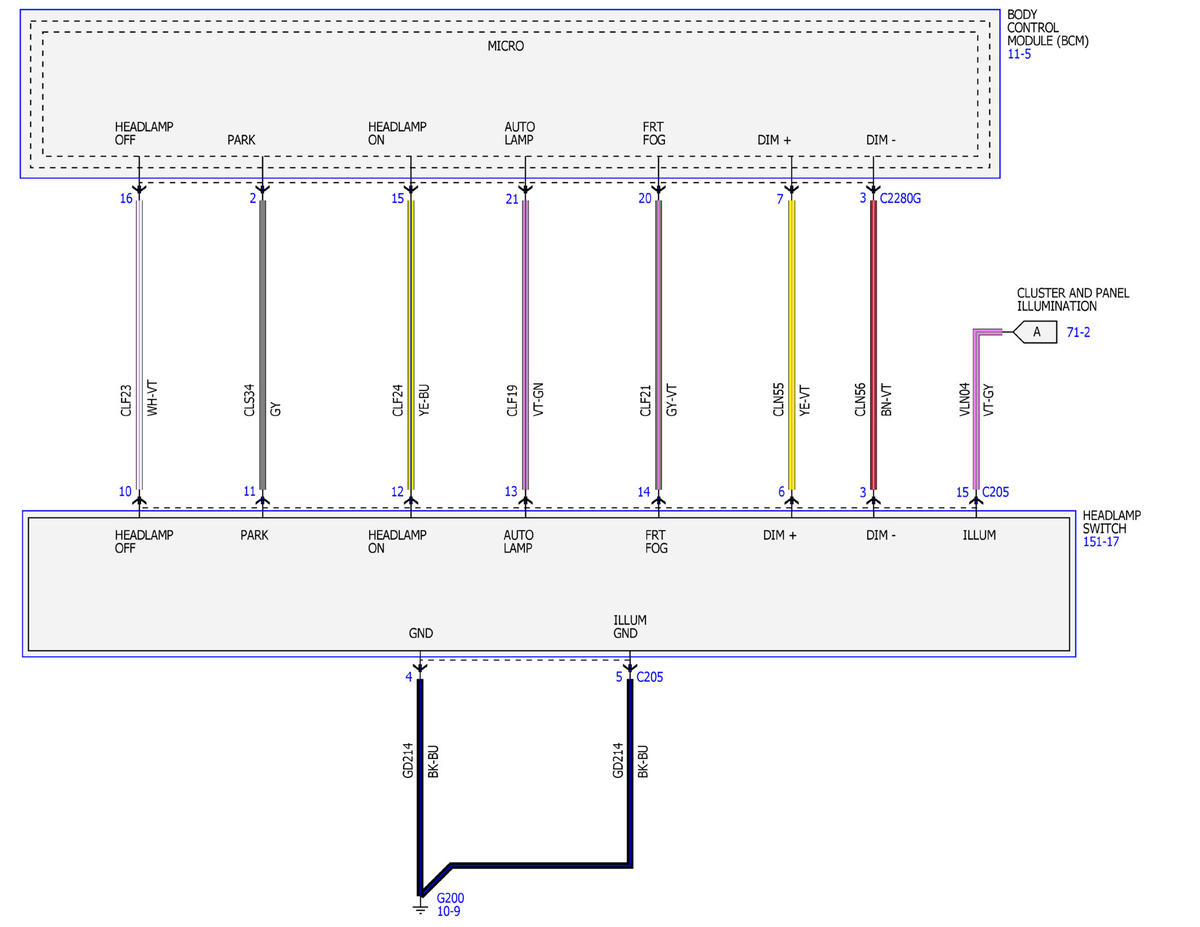

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 5)
GFDWR139101Courtesy of FORD MOTOR COMPANY

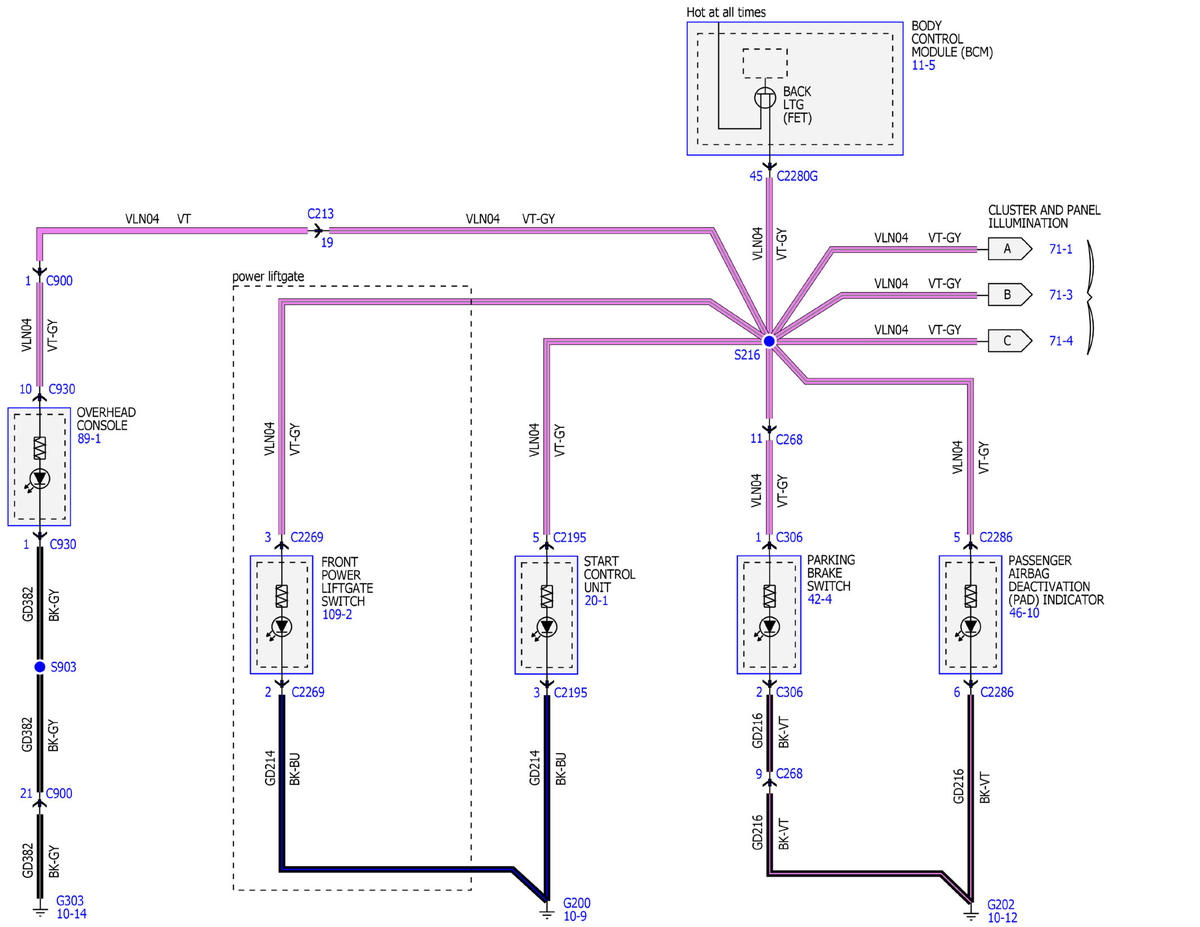

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 5)
GFDWR139102Courtesy of FORD MOTOR COMPANY

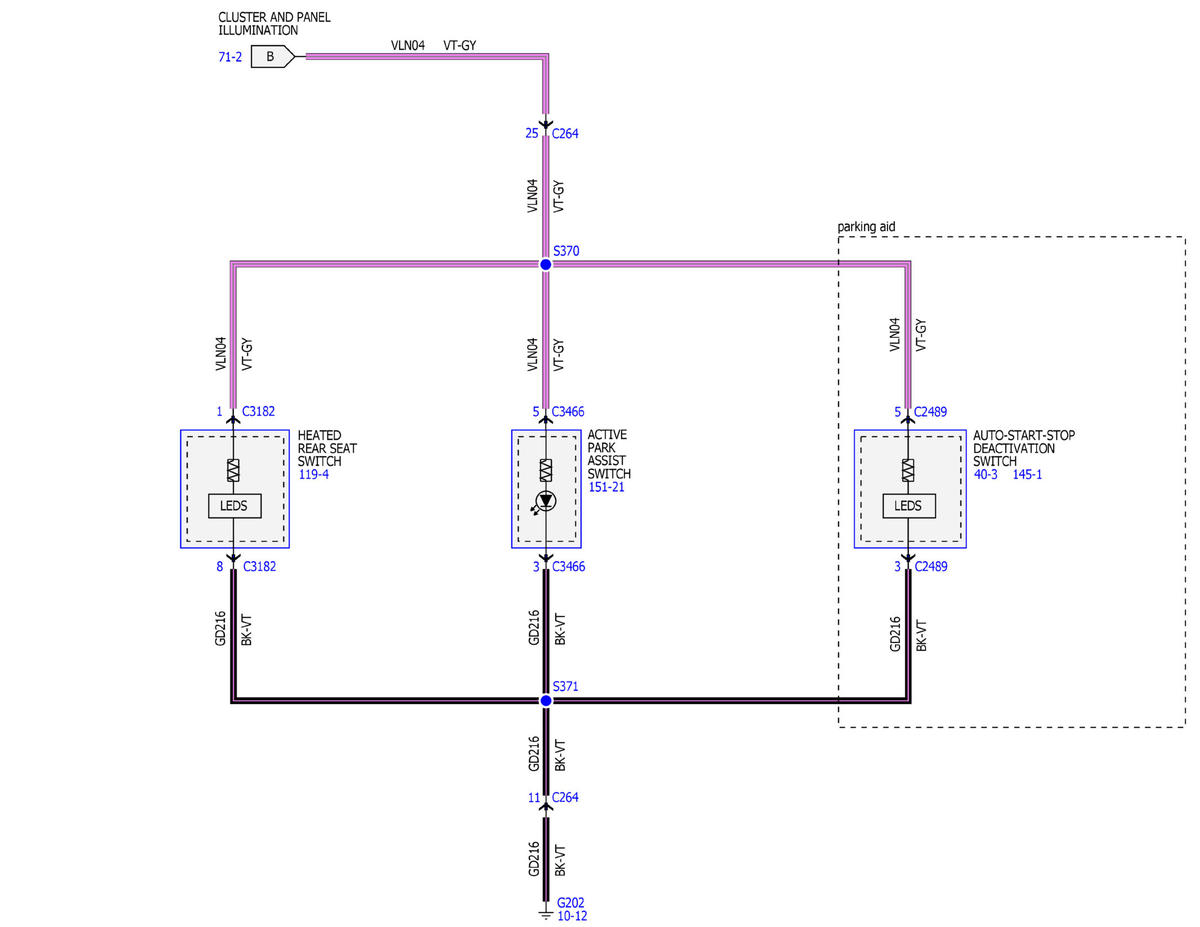

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 5)
GFDWR139103Courtesy of FORD MOTOR COMPANY

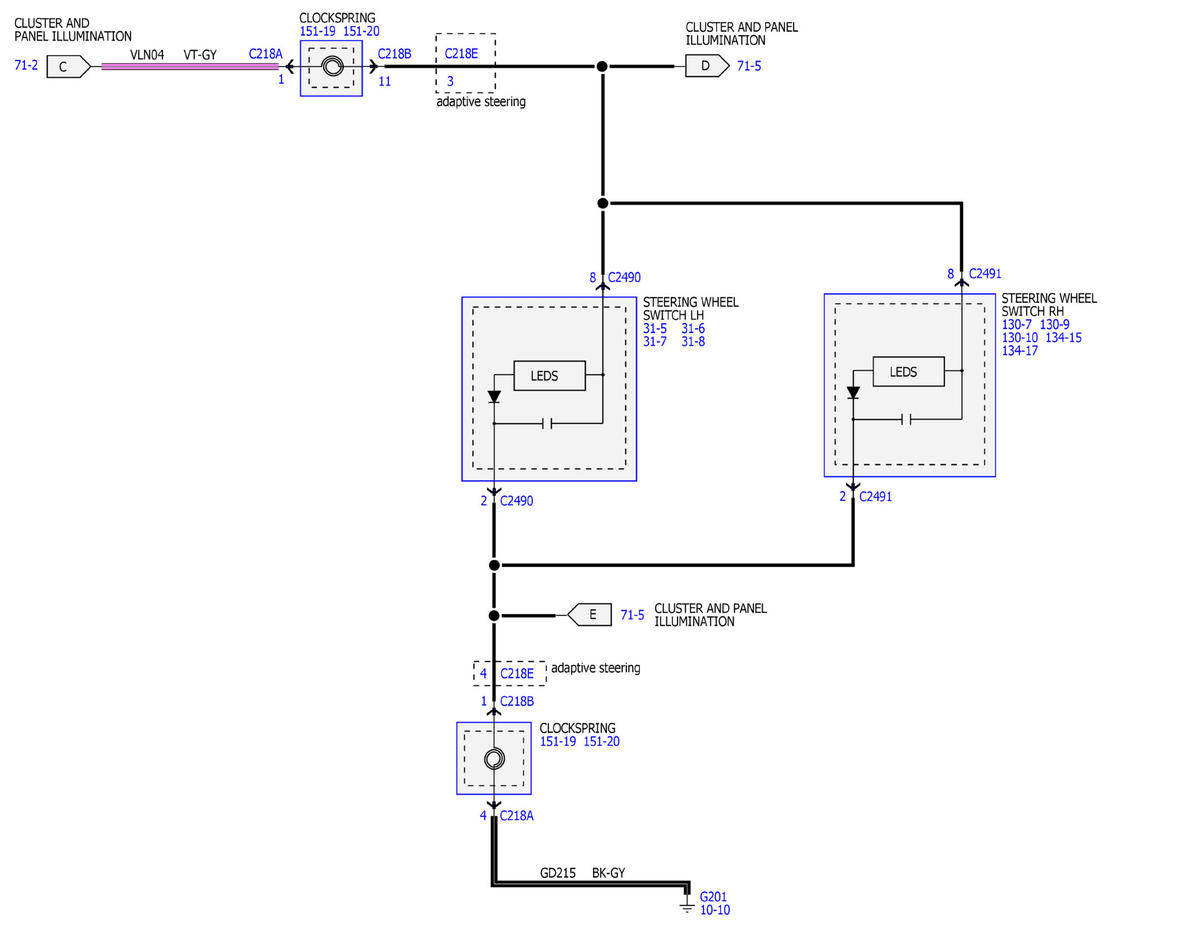

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 Of 5)
GFDWR139104Courtesy of FORD MOTOR COMPANY

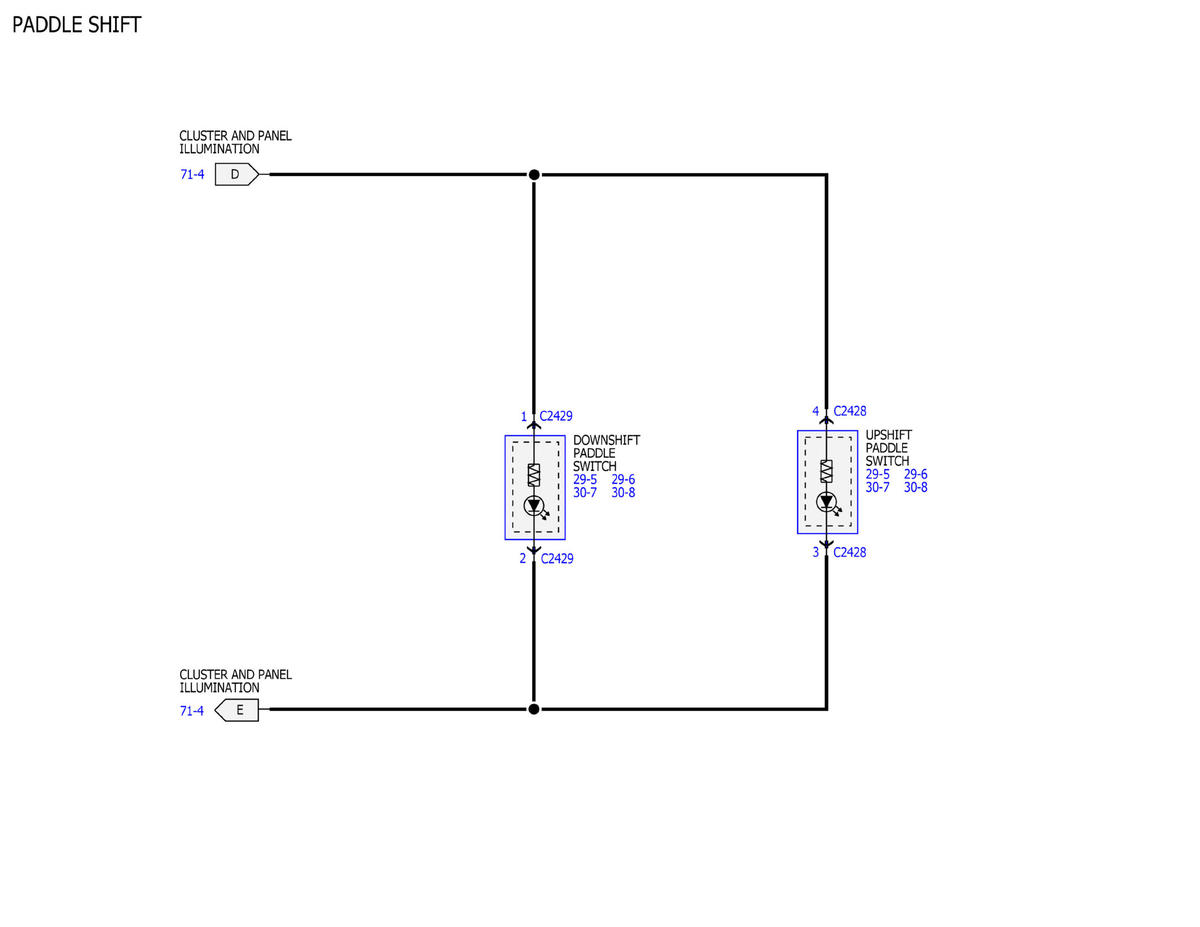

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 Of 5)
GFDWR139105Courtesy of FORD MOTOR COMPANY
