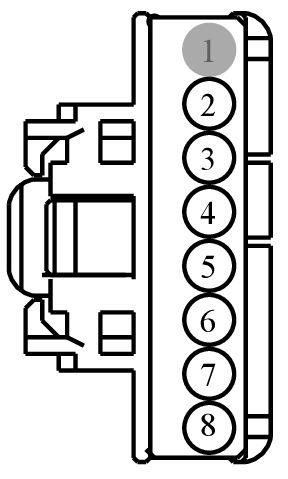

Connector End View (C2490) - STEERING WHEEL SWITCH LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2490	STEERING WHEEL SWITCH LH	BK	PIA	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
3	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
4	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
5	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
6	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
7	* (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	* (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1219

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DAAC

Gauge:

18

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Switch - Ambient Lighting Dimmer
• Switch - Door Lock (LH)
• Switch - Message Center
• Switch - Moon Roof/Sun Roof
• Switch - Seat Memory
