Connector End View (C2383A) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM] 14401 part# N/A Not Available

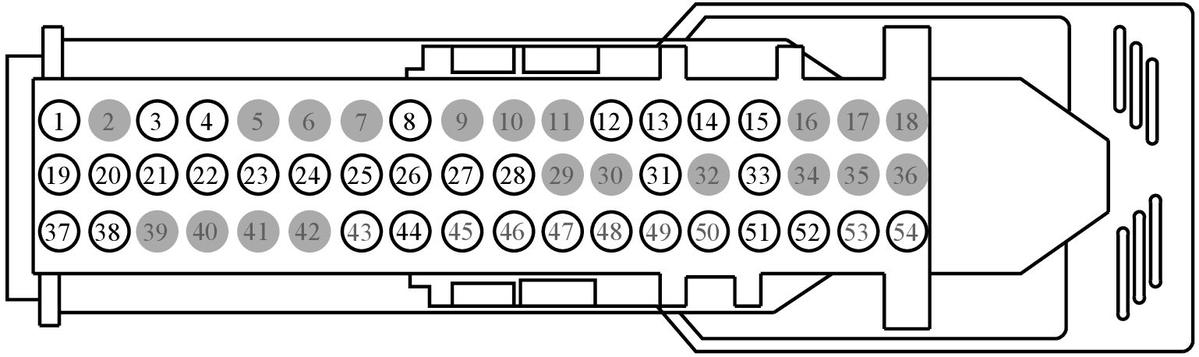

GFDWR138869Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-EB DU2Z-14474-AA 0.64
9U5T-14474-YB DU2Z-14474-AA 0.64
9U5T-14474-DB DU2Z-14474-AA 0.64
8U5T-14474-BB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP15 (WH-RD) 18 FUSE - 15 OR CIRCUIT BREAKER 9U5T-14474-EB
2 * * Not Used N/A
3 VME80 (VT-GN) 26 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) 9U5T-14474-YB
4 RME80 (BU-GY) 26 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) 9U5T-14474-YB
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER 9U5T-14474-DB
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + 9U5T-14474-DB
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - 9U5T-14474-DB
14 VMP22 (BU-BN) 20 CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+) 9U5T-14474-DB
14 VMP43 (GN-BU) 20 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT + 8U5T-14474-BB
15 VMP44 (VT-GY) 20 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT - 8U5T-14474-BB
15 VMP23 (BN-GN) 20 CAMERA - REAR PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-) 9U5T-14474-DB
16 * * Not Used N/A
17 * * Not Used N/A
18 * * Not Used N/A
19 VDB29 (GN-BU) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH N/A
20 VDB30 (WH-GN) 26 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW N/A
21 DME80 (*) 20 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D 9U5T-14474-DB
22 DME52 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D 9U5T-14474-DB
23 VME52 (BU) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + 9U5T-14474-YB
24 RME52 (GY-OG) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - 9U5T-14474-YB
25 VME53 (VT-GN) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + 9U5T-14474-YB
26 RME53 (BN-WH) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - 9U5T-14474-YB
27 VMEG1 (GY-VT) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # DRDL_TX_+ 9U5T-14474-YB
28 VMEG2 (YE-OG) 26 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # DRDL_TX_- 9U5T-14474-YB
29 * * Not Used N/A
30 * * Not Used N/A
31 DMM23 (*) 20 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D 9U5T-14474-DB
32 * * Not Used N/A
33 DMP22 (*) 20 CAMERA - REAR PARK ASSIST D 9U5T-14474-DB
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD215 (BK-GN) 18 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT 9U5T-14474-EB
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND 9U5T-14474-DB
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 VMED7 (BN-WH) 22 CTRL MOD. - SYNC LIN BUS 9U5T-14474-DB
45 * * Not Used N/A
46 * * Not Used N/A
47 * * Not Used N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VMEF7 (BN-BU) 26 CTRL MOD. - AUDIO HEAD UNIT DRDL_TX_+ 9U5T-14474-YB
52 VMEF8 (BU-GY) 26 CTRL MOD. - AUDIO HEAD UNIT DRDL_TX_- 9U5T-14474-YB
53 * * Not Used N/A
54 * * Not Used N/A
