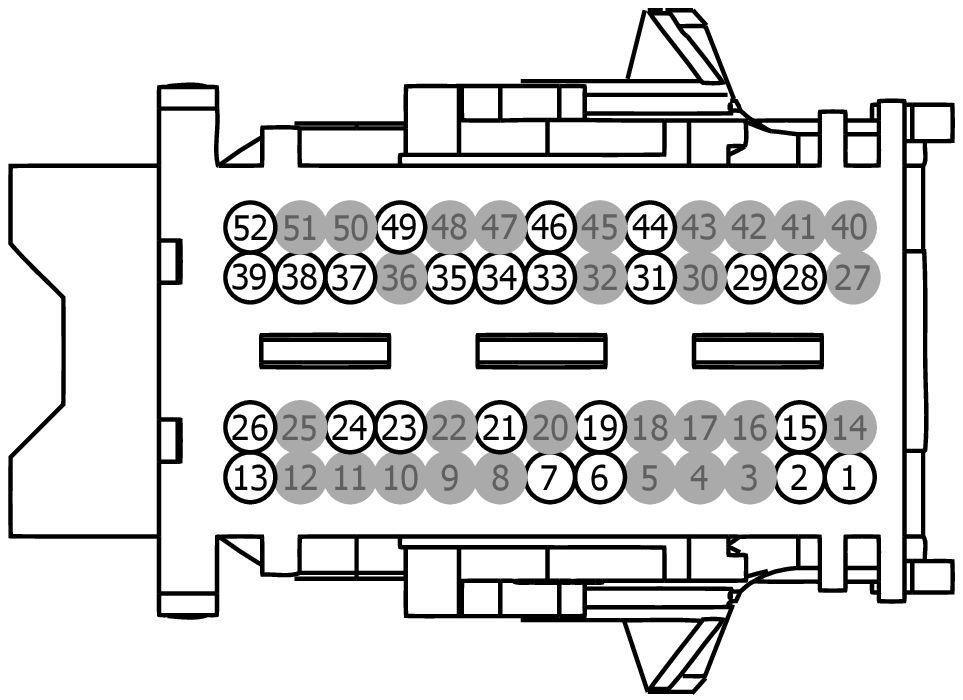

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280D	BODY CONTROL MODULE (BCM)	14A005			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
FU5T-14474-LB	DU2Z-14474-AA	0.64
9U5T-14474-DB	DU2Z-14474-AA	0.64
9U5T-14474-EB	DU2Z-14474-AA	0.64
9U5T-14421-ZA	EU2Z-14421-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL45 (BN)	22	SWITCH - LIFTGATE/DECKLID RELEASE	FU5T-14474-LB
2	CPK30 (VT-GN)	22	SWITCH - KEYLESS KEYPAD LINE B	FU5T-14474-LB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CR195 (YE-BU)	22	CTRL MOD. - EXTENDED POWER # OCCUPANT CLASSIFICATION MODULE POWER	9U5T-14474-DB
7	CR194 (VT-WH)	22	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	9U5T-14474-DB
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CLS17 (YE-GY)	22	CTRL MOD. - STOP HIGH MOUNT	FU5T-14474-LB
14	*	*	Not Used	N/A
15	CPK31 (YE-GN)	22	SWITCH - KEYLESS KEYPAD LINE C	FU5T-14474-LB
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	CPL39 (YE)	22	SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR)	FU5T-14474-LB
20	*	*	Not Used	N/A
21	CPL31 (WH)	22	SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR	FU5T-14474-LB
22	*	*	Not Used	N/A
23	CLS53 (GY-VT)	22	CTRL MOD. - STOP/TURN RIGHT OUTBOARD	FU5T-14474-LB
24	CLS51 (WH-GN)	22	CTRL MOD. - STOP/TURN LEFT OUTBOARD	FU5T-14474-LB
25	*	*	Not Used	N/A
26	CLS23 (GY-OG)	18	CTRL MOD. - TURN LAMP LEFT REAR	9U5T-14474-EB
27	*	*	Not Used	N/A
28	CPK29 (GY-BU)	22	SWITCH - KEYLESS KEYPAD LINE A	FU5T-14474-LB
29	CPK52 (VT-WH)	22	CTRL MOD. - LIFTGATE/TAILGATE HANDS-FREE # OUTPUT	FU5T-14474-LB
30	*	*	Not Used	N/A
31	CLS55 (GN-BU)	22	LAMP - TURN REAR LEFT # SIGNAL OUT	FU5T-14474-LB
32	*	*	Not Used	N/A
33	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR	FU5T-14474-LB
34	CPL44 (YE-OG)	22	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	FU5T-14474-LB
35	CPK28 (WH-GN)	22	CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION	FU5T-14474-LB
36	*	*	Not Used	N/A
37	VDN04 (VT-WH)	26	CTRL MOD. - LIN BUS # BCM 4	9U5T-14421-ZA
37	VDN04 (VT-WH)	26	CTRL MOD. - LIN BUS # BCM 4	9U5T-14421-ZA
38	VDN13 (BN)	22	CTRL MOD. - LIN BUS # BCM 5	FU5T-14474-LB
39	CPL89 (BN-BU)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	FU5T-14474-LB
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	*	*	Not Used	N/A
43	*	*	Not Used	N/A
44	CLS54 (BU-OG)	22	LAMP - TURN REAR RIGHT # SIGNAL OUT	FU5T-14474-LB
45	*	*	Not Used	N/A
46	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR)	FU5T-14474-LB
47	*	*	Not Used	N/A
48	*	*	Not Used	N/A
49	CR167 (YE-VT)	22	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)	FU5T-14474-LB
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	CLS27 (GN-OG)	18	CTRL MOD. - TURN LAMP RIGHT REAR	9U5T-14474-EB
