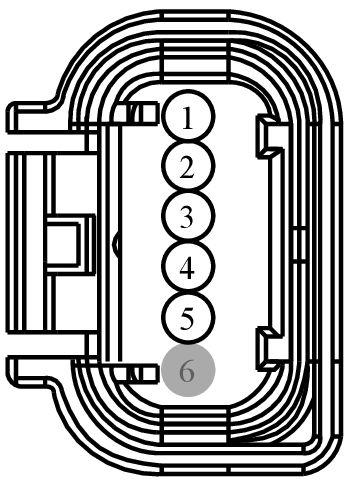

Connector End View (C1663) - FRONT PARKING AID CAMERA

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1663	FRONT PARKING AID CAMERA	15K867			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-EAB	DU2Z-14474-CA	0.64
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	DU5T-14474-EAB
2	VMP24 (WH)	22	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	DU5T-14474-EAB
3	VMP26 (YE-BU)	22	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT- (LVDS-)	DU5T-14474-EAB
4	VMP25 (BN-YE)	22	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT+ (LVDS+)	DU5T-14474-EAB
5	DMP25 (BK)	20	CAMERA - FRONT PARK ASSIST # DIGITAL VIDEO OUT D	8U5T-14474-BB
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
