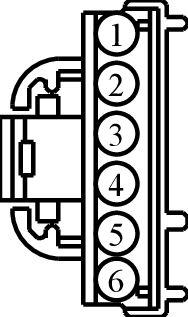

Connector End View (C218E) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218E	CLOCKSPRING	PIA			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	CTRL MOD. - SWITCH HORN	N/A
2	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
3	* (*)	*	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
4	* (*)	*	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	N/A
5	* (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
6	* (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dimmer Switch
• Module - Front Interface
• Switch - Adjustable Pedal
• Switch - Dimmer
• Switch - Dimmer (Instrument Panel)
• Switch - Message Center
• Switch - Power Window - Passenger (Front)
