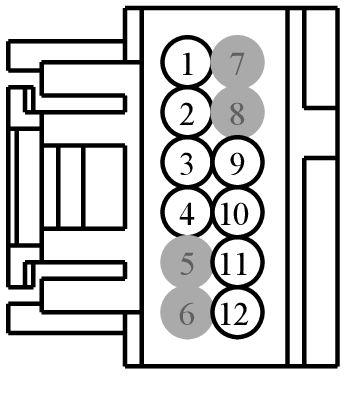

Connector End View (C218A) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218A	CLOCKSPRING	14401			part# N/A	See Below

Pin:4 - GD215(BK-GY) - GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT, Gauge 22Pin:4 - GD215(BK-GY) - GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT, Gauge 20

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64
9U5T-14474-MA	DU2Z-14474-BA	0.64
1L2T-14474-CA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN04 (VT-GY)	26	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-NA
2	RHS81 (VT-WH)	22	THERMISTOR - HEATED STEERING WHEEL -	9U5T-14474-LA
2	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	9U5T-14474-LA
3	RHS81 (VT-WH)	22	THERMISTOR - HEATED STEERING WHEEL -	9U5T-14474-LA
3	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	9U5T-14474-LA
4	GD215 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-LA|9U5T-14474-MA
4	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	9U5T-14474-LA|9U5T-14474-MA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	1L2T-14474-CA
10	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	1L2T-14474-CA
11	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	1L2T-14474-CA
12	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	1L2T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-949

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BMAB

Gauge:

18

Pin material:

Silver

Cavities:

12

Vehicle Uses:
