Instrument Panel Cluster (IPC): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.

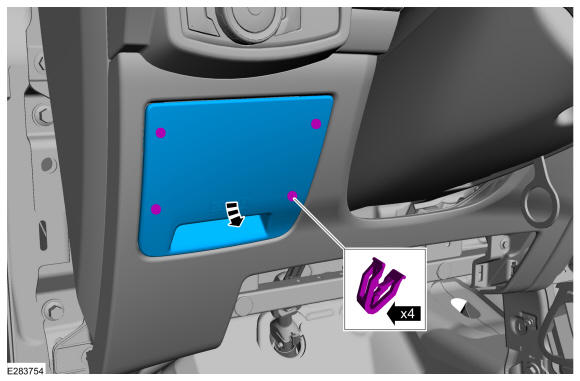

Remove the accessory hole cover from the instrument panel.

Courtesy of FORD MOTOR COMPANY

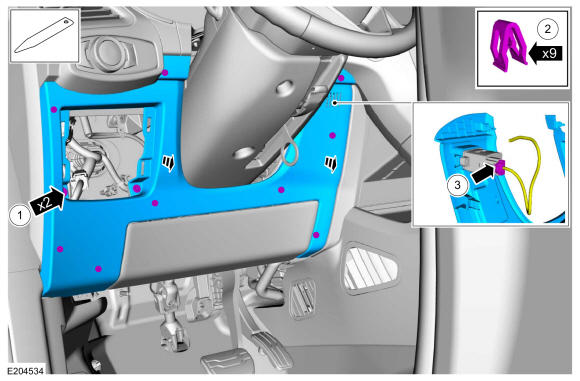

Remove the lower steering column opening trim panel.
1. Remove the bolts.
  Torque : 22 lb.in (2.5 Nm)
2. Release the clips and position the steering column opening trim panel.
3. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

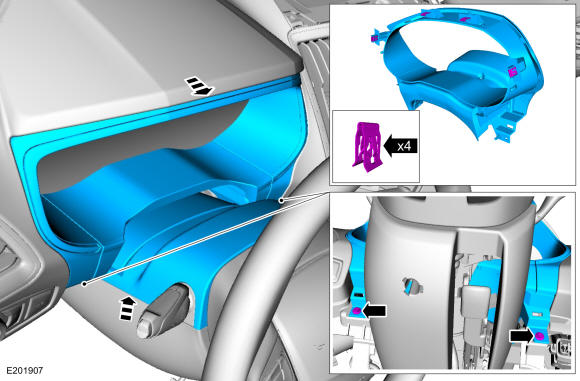

Remove bolts, release the clips and remove the IPC bezel.
Torque : 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

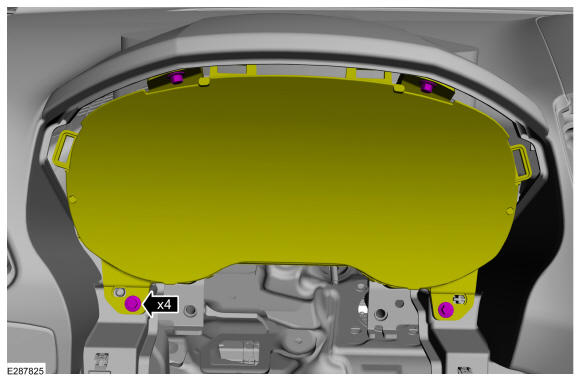

Remove the bolts and position the IPC.
Torque : 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

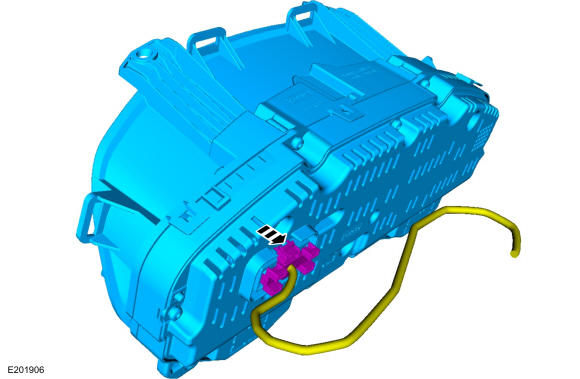

Disconnect the electrical connector and remove the IPC.

Courtesy of FORD MOTOR COMPANY
