Parking Aid - Component Location

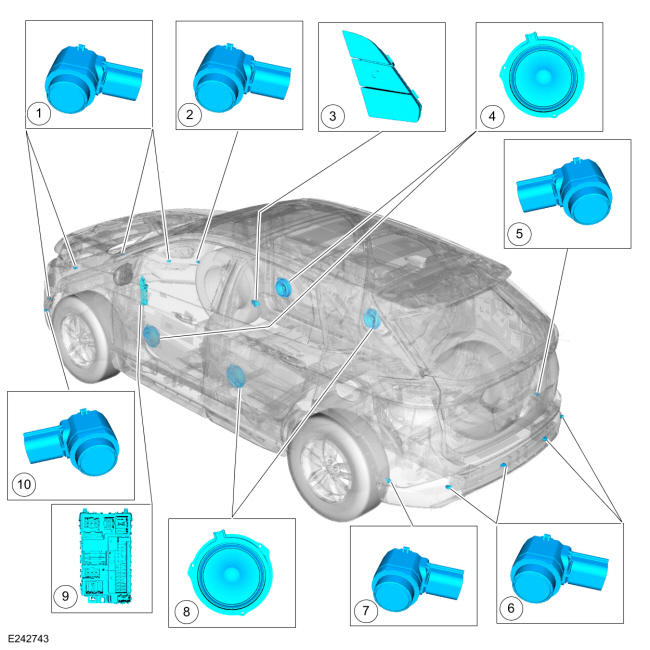

Component Location, Parking Aid - Audible
| Item | Description |
|---|---|
| 1 | Front parking aid sensors (if equipped) |
| 2 | Right front active parking aid sensor (if equipped) |
| 3 | Parking aid disable switch (if equipped) |
| 4 | Front speakers (part of audio system) |
| 5 | Right rear active parking aid sensor (if equipped) |
| 6 | Rear parking aid sensors |
| 7 | Left rear active parking aid sensor (if equipped) |
| 8 | Rear speakers (part of audio system) |
| 9 | PAM (integrated into the BCM) |
| 10 | Left front active parking aid sensor (if equipped) |
