Front Parking Aid Camera: Removal

  1. Remove the front bumper cover. Refer to: FRONT BUMPER COVER

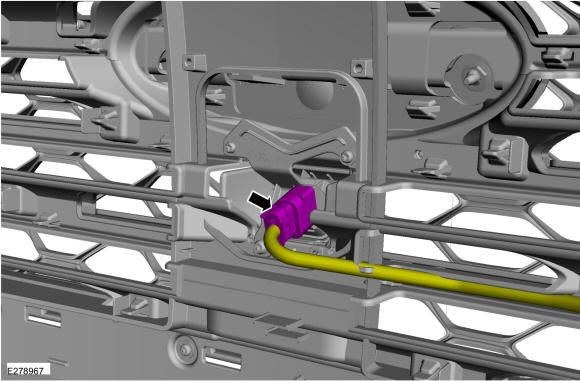

  2. Disconnect the electrical connector.
    GFD597152Courtesy of FORD MOTOR COMPANY

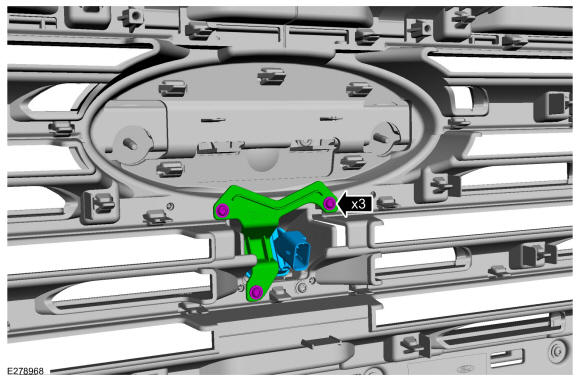

  3. Remove the screws, the front parking aid camera bracket and the front parking aid camera.
GFD597153Courtesy of FORD MOTOR COMPANY
